Renishaw: RESD angle encoder with distance-coded reference marks RESD20USA104
Renishaw: RESD distance coded rings, Model: RESD20USA104

Alternate View


Request for Quantity & Price


Price: (Members Only)


Availability: Lead Time 16 to 20 Weeks
Order #: RESD20USA104
Qty:

Description Ordering Information Specifications and Drawings


Renishaw: RESD angle encoder with distance-coded reference marks RESD20USA104

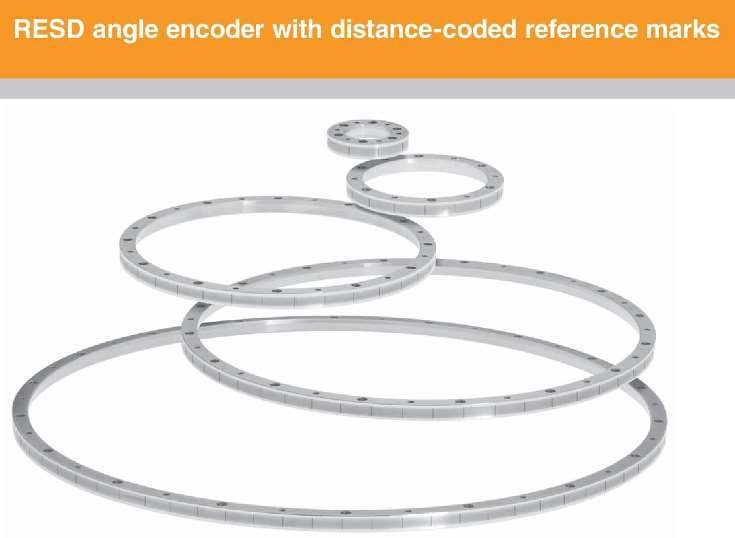

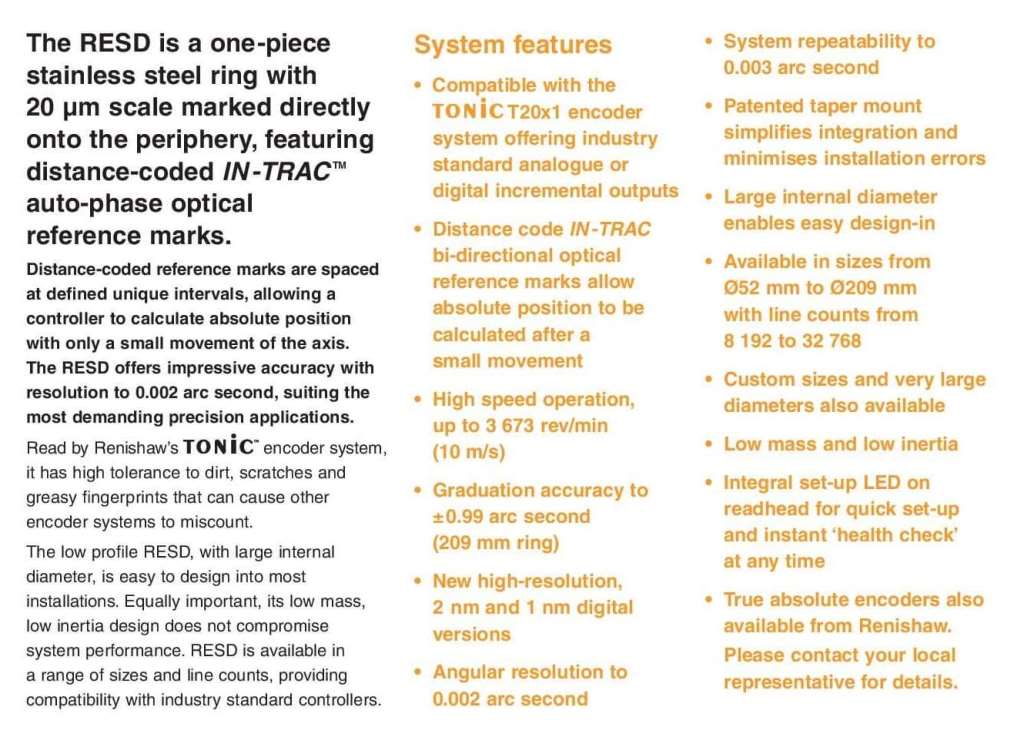

RESD distance coded rings

The distance between the first or ‘origin’ reference mark and every second reference mark is fixed at 1000 scale periods.

(1024 scale periods on binary rings). This distance constitutes 1 'box'.For alternative non-standard box sizes please contact EPD.

NOTE: RESD is only compatible with VIONIC and TONIC readheads (not with SiGNUM encoder systems)

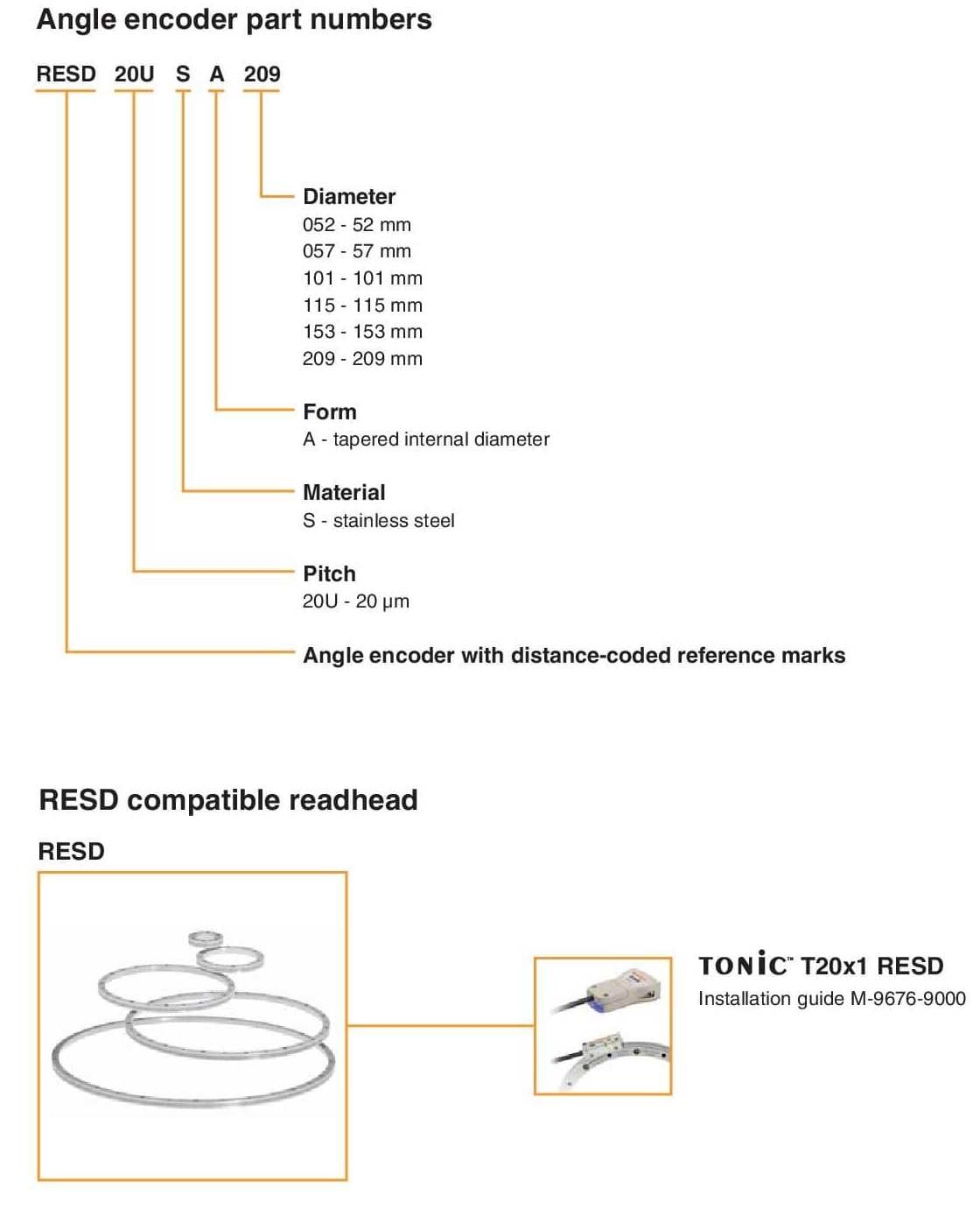

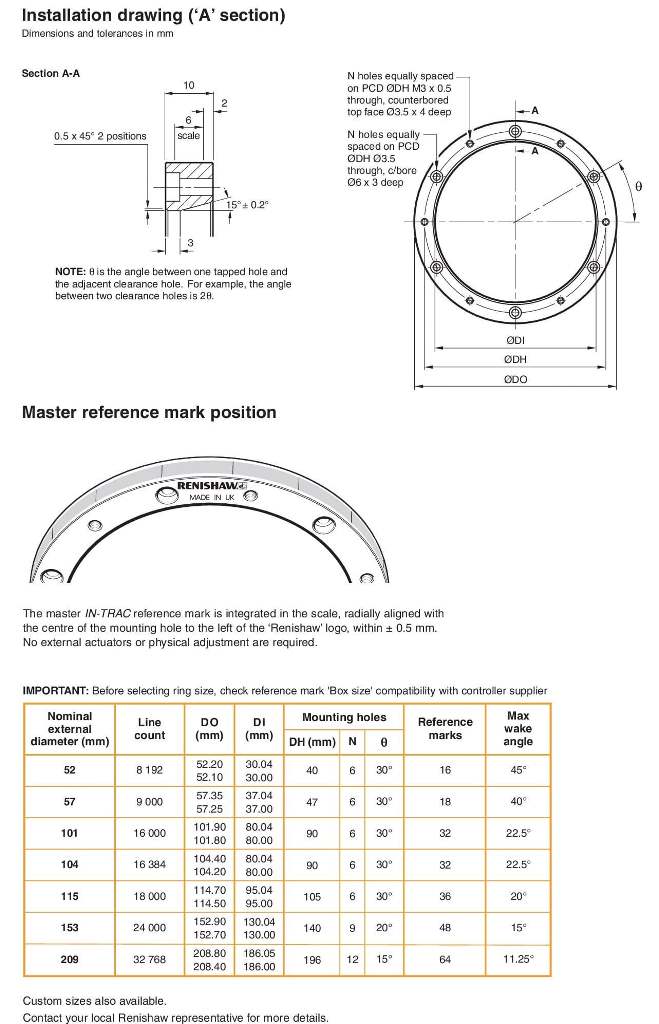

Scale pitch

Form

Diameter

Line count (box size)

Part number

Price US$

RESD

20U (20 µm)

A (standard section)

52

8192 (1024)

RESD20USA052

506

57

9000 (1000)

RESD20USA057

549

101

16000 (1000)

RESD20USA101

753

104

16384 (1024)

RESD20USA104

766

115

18000 (1000)

RESD20USA115

837

153

24000 (1000)

RESD20USA153

984

209

32768 (1024)

RESD20USA209

1,350

RENISHAW: REXM/REXT ultra-high accuracy angle encoderSupporting Links
