Renishaw: RESM rotary scale RESM20USA057
Renishaw: RESM 20µm - ring, Model:  RESM20USA057


Request for Quantity & Price


Price: (Members Only)

Quantity in Stock:3

Order #: RESM20USA057
Qty:

Description Ordering Information Specifications and Drawings


TONiC™ incremental encoder system with RESM20 rotary (angle) ring

Renishaw:
RESM rotary scale RESM20USA057

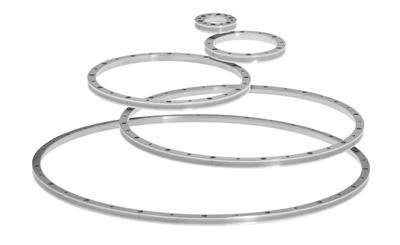

The RESM is a one‑piece stainless steel ring with 20 or 40 µm scale marked directly onto the periphery, featuring the IN‑TRAC ™ auto‑phase optical reference mark. The RESM offers impressive accuracy with resolution to 0.00075 arc second, suiting the most demanding precision applications. Read by Renishaw’s VIONiC™, TONiC™ and QUANTiC™ encoder systems, it has high tolerance to dirt, scratches and greasy fingerprints that can cause other encoder systems to miscount. The low profile RESM, with large internal diameter, is easy to design into most installations. Equally important, its low mass, low inertia design does not compromise system performance. Available in a wide range of sizes and line counts, providing compatibility with industry standard controllers.


Features

  • Compatible with the VIONiC, TONiC and QUANTiC encoder systems offering industry standard analogue or digital incremental outputs
  • IN-TRAC bi-directional optical reference mark
  • Graduation accuracy to ±0.38 arc second (550 mm ring)
  • Patented taper mount simplifies integration and minimizes installation errors
  • Large internal diameter for ease of integration
  • Available in sizes from Ø52 mm to Ø550 mm with line counts from 4 096 to 86 400
  • Custom sizes also available
  • Low mass and low inertia
  • Ultra-low inertia versions also available
  • REST20 is a RESM20 with two reference marks, for use on dual readhead systems in partial arc applications

RESM 20µm - rings

Series

Scale pitch

Form

Diameter

Part number

Price US$

RESM

20U (20 µm)

A (standard section)

052

RESM20USA052

469

057

RESM20USA057

508

075

RESM20USA075

575

100

RESM20USA100

679

103

RESM20USA103

698

104

RESM20USA104

710

115

RESM20USA115

775

150

RESM20USA150

892

200

RESM20USA200

1,109

206

RESM20USA206

1,233

209

RESM20USA209

1,250

229

RESM20USA229

1,331

255

RESM20USA255

1,929

300

RESM20USA300

2,187

350

RESM20USA350

2,618

413

RESM20USA413

3,048

417

RESM20USA417

3,479

489

RESM20USA489

5,480

550

RESM20USA550

10,367

B (low inertia)

075

RESM20USB075

641

100

RESM20USB100

754

115

RESM20USB115

947

150

RESM20USB150

995

200

RESM20USB200

1,238

Supporting Links

Renishaw: RESM rotary scale


Share your knowledge of this product. Be the first to write a review »
