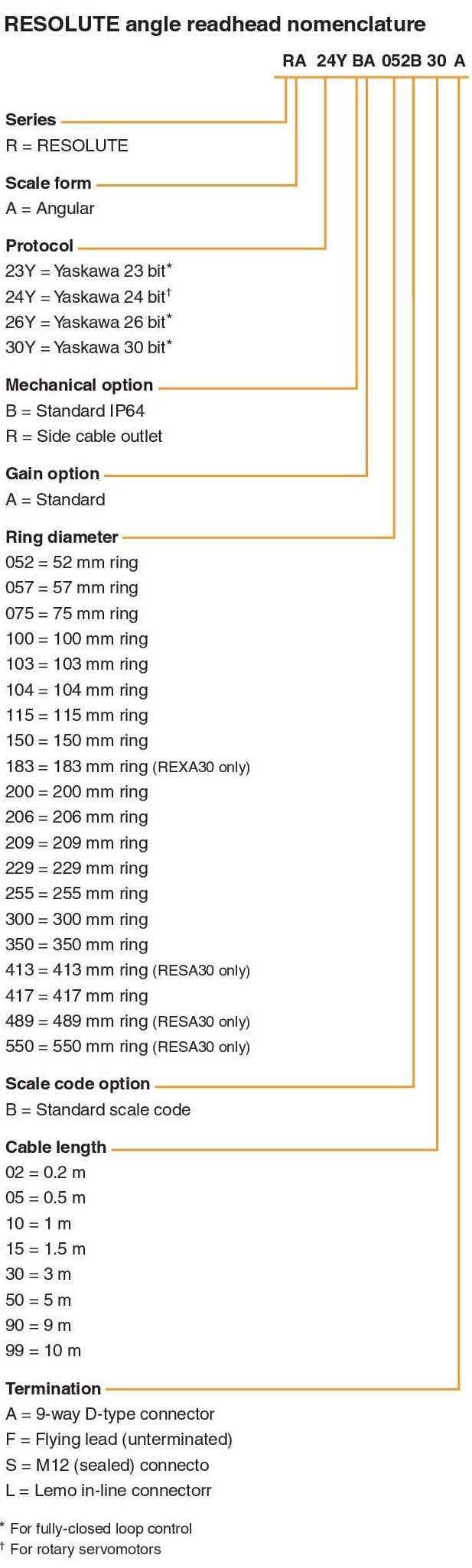

RESOLUTE™ absolute optical encoder with Yaskawa serial communications RA-24Y-BA-052B-30-A

Renishaw's RESOLUTE absolute optical encoder is now compatible with the Yaskawa serial communications protocol in linear and rotary (angle) encoder formats. This allows RESOLUTE to be used with Yaskawa's drives and controllers such as the Sigma 7 range of servo-products. Yaskawa equipment is regularly used in electronics assembly, Flat Panel Display (FPD) manufacturing, factory automation and general motion control applications.

RESOLUTE™ is a true-absolute fine-pitch optical encoder system with excellent metrology performance. Patented RESOLUTE encoder technology combines 1 nm resolution with exceptionally high speed, up to 100 m/s or 14 600 rev/  min, reading from a range of high-accuracy linear tape and spar scales or angle encoder rings. RESOLUTE encoder systems use a single optical absolute track with a nominal pitch of 30 μm, combined with sophisticated optics. This ensures wide set-up tolerances, very low sub-divisional error of ±40 nm and ultra-low noise (jitter) of less than 10 nm RMS, resulting in better velocity control performance and rock solid positional stability. The RESOLUTE system ensures reliability with excellent dirt immunity, built-in separate position-checking algorithm and IP64 sealed readhead with wipe-clean recovery. RESOLUTE encoders are available with a variety of serial protocols. Contact your local Renishaw representative for details.

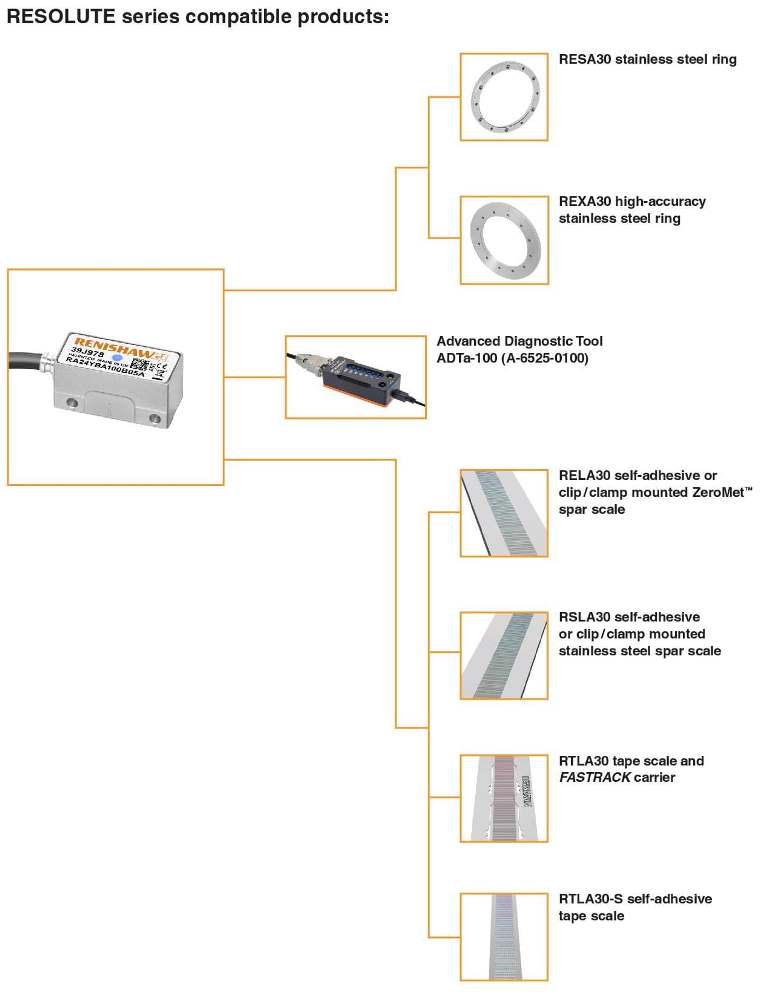

• True-absolute non-contact optical encoder system: no batteries required • Wide set-up tolerances for quick and easy installation • High immunity to dirt, scratches and light oils • Resolutions to 1 nm linear or 24 bit rotary (rotary servomotors) and 30 bit (fully closed loop control) rotary • 100 m/s or 14 600 rev/min maximum speed • ±40 nm sub-divisional error for smooth velocity control • Less than 10 nm RMS jitter for improved positional stability • Built-in separate positionchecking algorithm provides inherent safety • IP64 sealed readhead for high reliability in harsh environments • Integral set-up LED enables easy installation and provides diagnostics at a glance • Operates up to 80 °C • Integral over-temperature alarm Compatible with: • RELA30 low-expansion, high-stability spar scales • RSLA30 stainless steel spars • RTLA30 with FASTRACK ™ carrier • RTLA30-S self-adhesive tape scale • RESA30 angle encoders • Ultra-high accuracy REXA30 angle encoders • Optional Advanced Diagnostic Tool ADTa-100

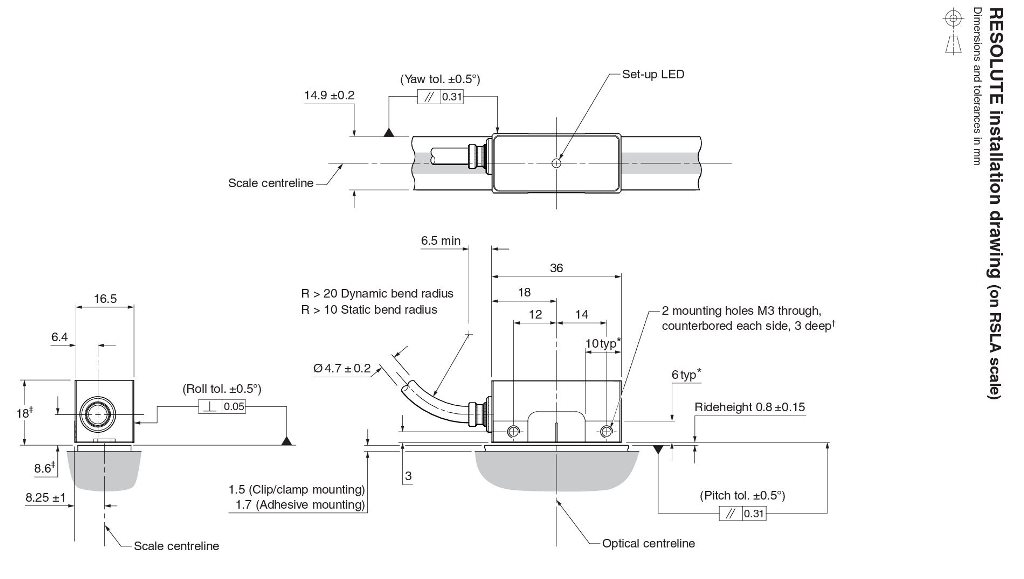

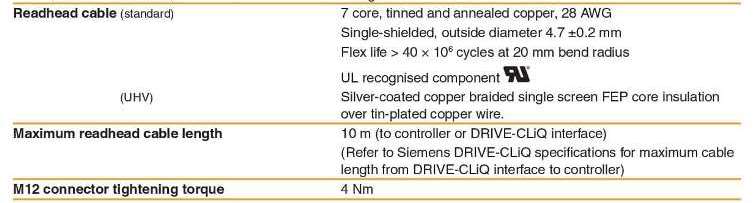

Resolute Readheads

Serial: BiSS, DRIVE-CLiQ, FANUC, Mitsubishi, Panasonic, Yaskawa

Resolute Scale Options

RTLA30, FASTRACK, RSLA30, RELA30, RKLA30-S
