Renishaw: RGH2 Series incremental encoder system RGH22B50F00A

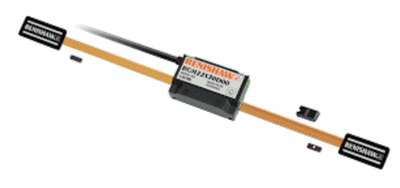

RGH22 incremental encoder system with RGS20 linear scale


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: RGH22B50F00A
Qty:

Description Ordering Information Specifications and Drawings


RGH22 incremental encoder system with RGS20 linear scale

Features
Readhead size: 44 x 27 x 16 mm
Resolutions to 50 nm
Speed up to 10 m/s
Analog or digital outputs
Low Sub-Divisional Error (SDE): typically ±0.15 µm

Traditional optical encoders

Not recommended for new designs

The RG2 and RG4 incremental encoder systems have a strong reputation established over many years for providing reliable and robust position
feedback for a wide variety of applications. However, Renishaw is continually developing innovative incremental and absolute encoder technologies
and our latest encoder systems offer a range of additional benefits including enhanced metrology, smaller package size, easier installation and
detailed diagnostics. Therefore, the RG2 and RG4 series are not recommended for new designs.

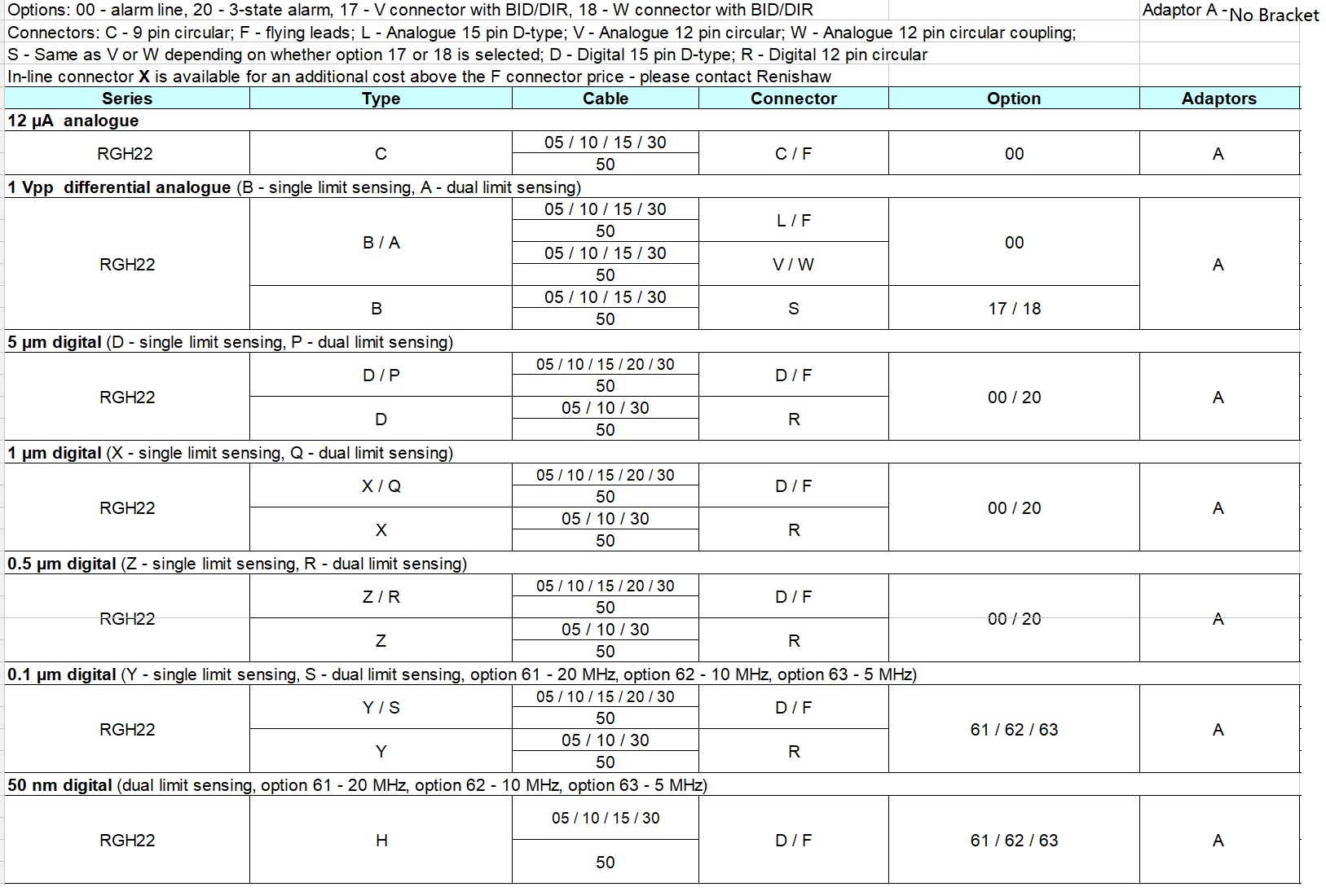

Readhead Models and List Price,some items in stock,usually shipping in 4-6weeks:
RGH22-Cable Version


12
μA Analogue

RGH22C05C00A
RGH22C10C00A
RGH22C15C00A
RGH22C30C00A
RGH22C05F00A
RGH22C10F00A
RGH22C15F00A
RGH22C30F00A
List Price $461.00 for the above models.

RGH22C50C00A
RGH22C50F00A
List Price $489.00 for the above models.

RGH22S30D61A,RGH22R30D00A,RGH24Y30A30A,RGH22B05F00A,RGH22B10F00A,RGH22B15F00A,RGH22B30F00A,
RGH22B50F00A,RGH22A50F00A,RGH22A30F00A,RGH22A15F00A,
RGH22A10F00A,RGH22A05F00A,RGH22B50S18A

Tape Scale Models:
RGS20-S, RGS20-T, RGS20-P
