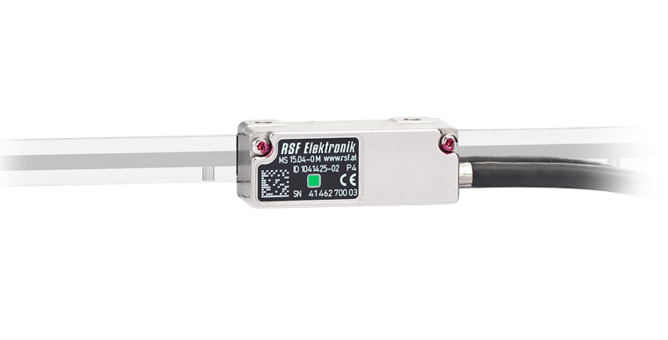

RSF Elektronik: Exposed Linear Encoder with Singlefield Scanning (MS 15 Series) (ID: 1187349-01)
RSF Elektronik: Exposed Linear Encoder with Singlefield Scanning (MS 15 Series) (ID: 1187349-01)

Alternate View

Price: (Members Only)


Availability: Subject to availability
Order #: 1187349-01
Qty:

Description Specifications and Drawings


RSF Elektronik: Exposed Linear Encoder with Singlefield Scanning (MS 15 Series) (ID: 1187349-01)

Overview for MS 15

  • Small dimensions
  • System resolution: 10 µm - 0.05 µm
  • Display of the signal quality directly at the scanning head via 3-coloured LED function
  • Easy mounting without additional test box
  • Easy mounting as a result of large mounting tolerances
  • High insensitivity to contamination by use of an extensive singlefield scanning principle
  • Interface: TTL, sinus 1 Vpp
  • High permissible traversing speed
  • Reference mark (accurate and repeatable from both traversing directions)
  • Position selectable by customer
  • Integrated subdividing electronics in the encoder head: for up to times 200 interpolation (before quadrature)
  • Max. measuring length: 20 000 mm
  • Two independent switch signals (optical) for individual special functions

AK MS 15 TTLx10 HH M 1 (ID: 1187349-01)

  • Scanning head incremental
  • Grating period: 40.000 µm
  • Reference mark: Selectable reference mark
  • Reference pulse width: 90°
  • Fault detection signal: for disturbance LOW
  • Minimum edge separation: 0.300 µs
  • Power supply: 5 V (+5 % -10 %)
  • Output signal: Square-wave signals, TTL levels with 10-fold interpolation
  • Limit switch: active high
  • Limit switch 2: active high
  • Cable length: 3.00 m
  • Electrical connection: D-sub connector, metalized
  • plastic housing, 2-row, with locking screws, male, 15-pin
  • Pin configuration: D1097387
