Renishaw: RTLC incremental linear encoder system SCALE A-9715-XXXX
RTLC stainless steel scales for FASTRACK - Model: A-9715-XXXX


Request for Quantity & Price


Price: (Members Only)


Availability: Lead Time 16 to 20 Weeks

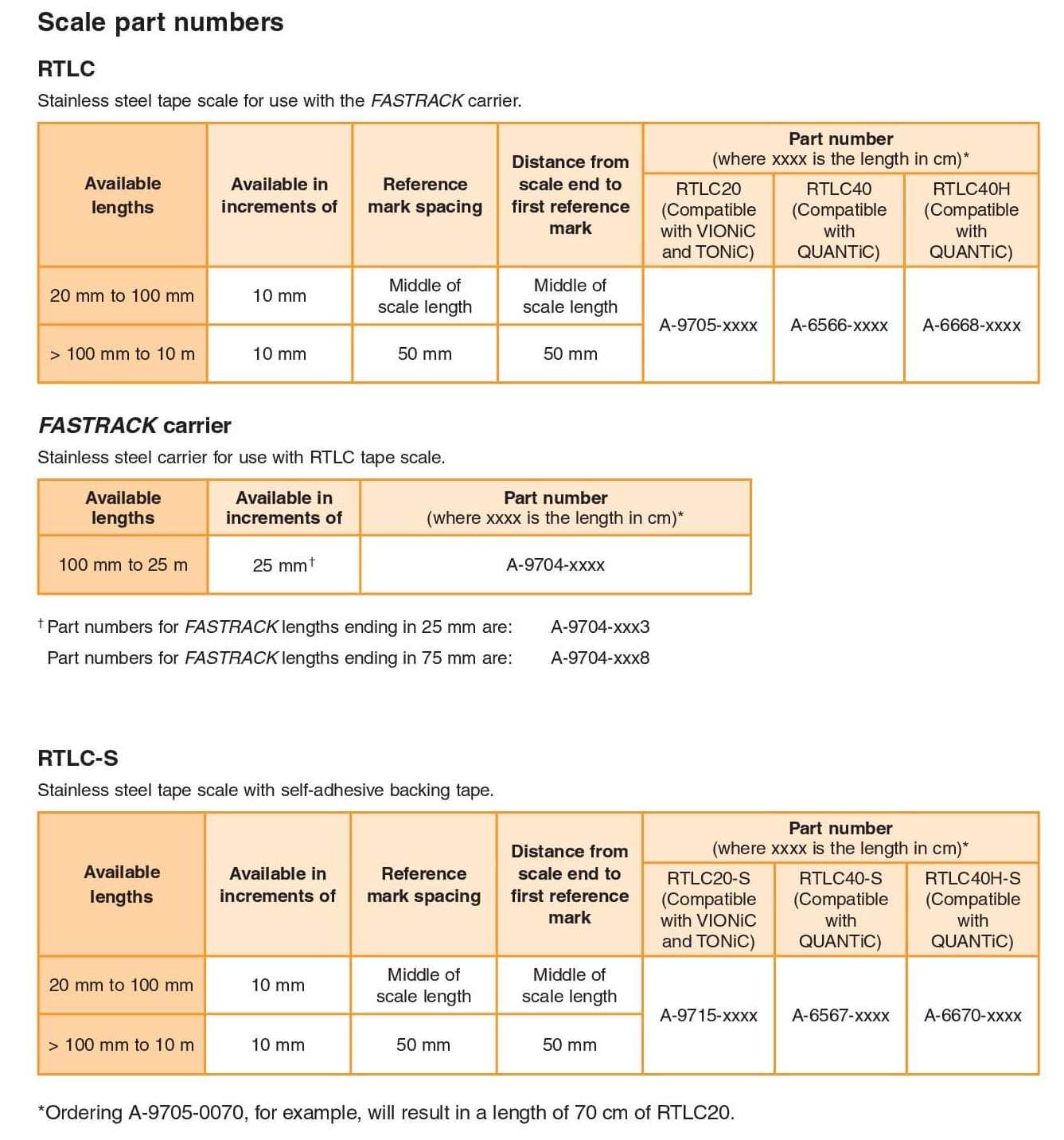

Order #: A-9715-XXXX


Scale Spar Length RTLC*:


Qty:
Description Ordering Information Specifications and Drawings


Renishaw: RTLC incremental linear encoder system SCALE A-9715-XXXX

What is RTLC20 scale?

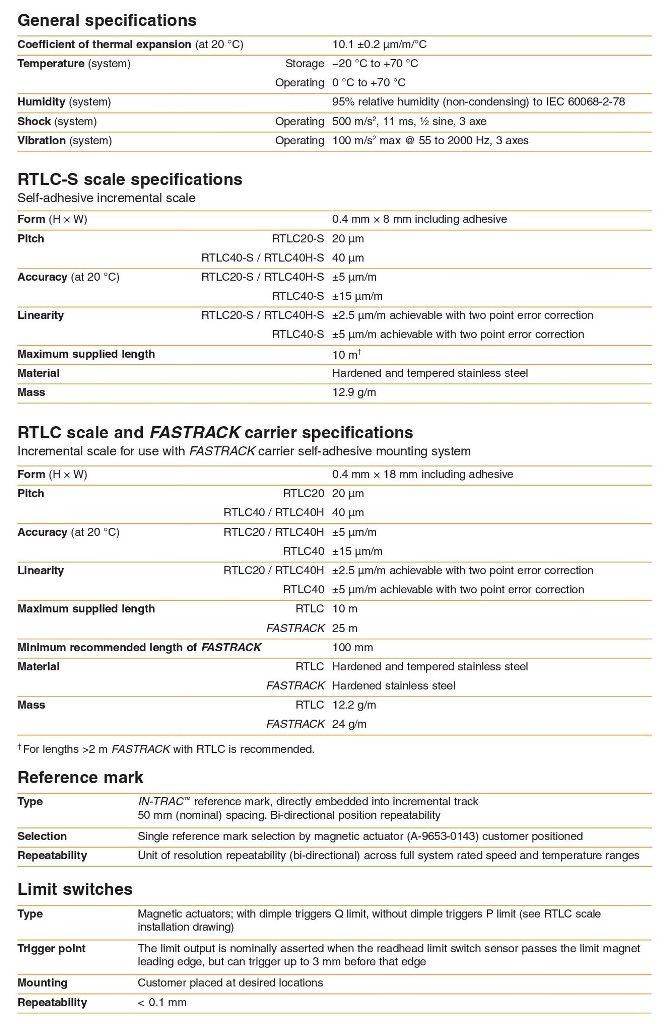

TLC20 is a low profile stainless steel tape scale featuring a 20 µm pitch and IN-TRAC customer selectable reference mark. It is accurate to ±5 µm/m and in lengths up to 10 metres (> 10 metres on request). Two mounting options are available, both allow independent thermal expansion and tape scale convenience.

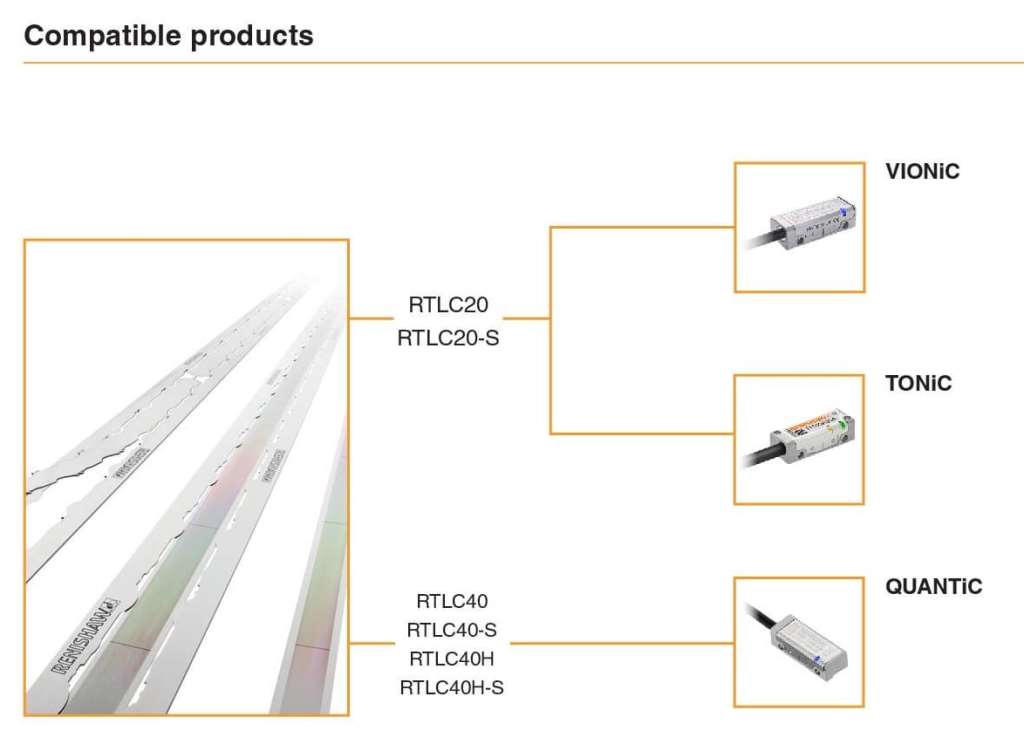

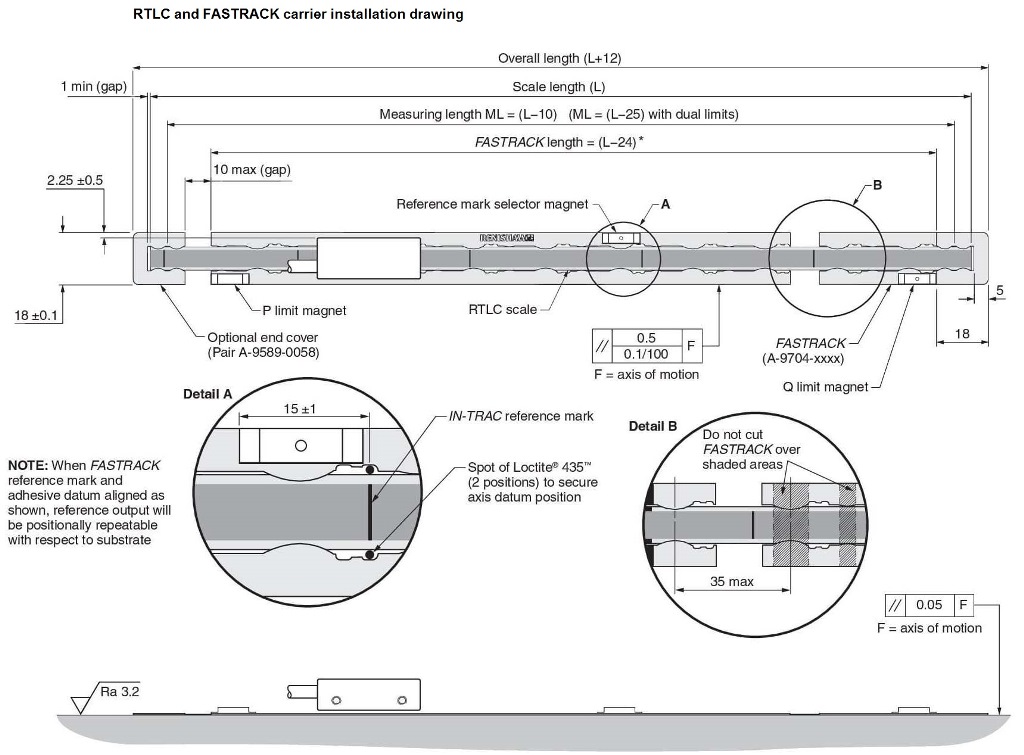

RTLC20 can be used with the revolutionary FASTRACK™ scale carrier system. This system allows a track to be laid quickly and easily with no need for fixing holes. A sacrificial spacer is removed and the tape scale is then fed into the track.

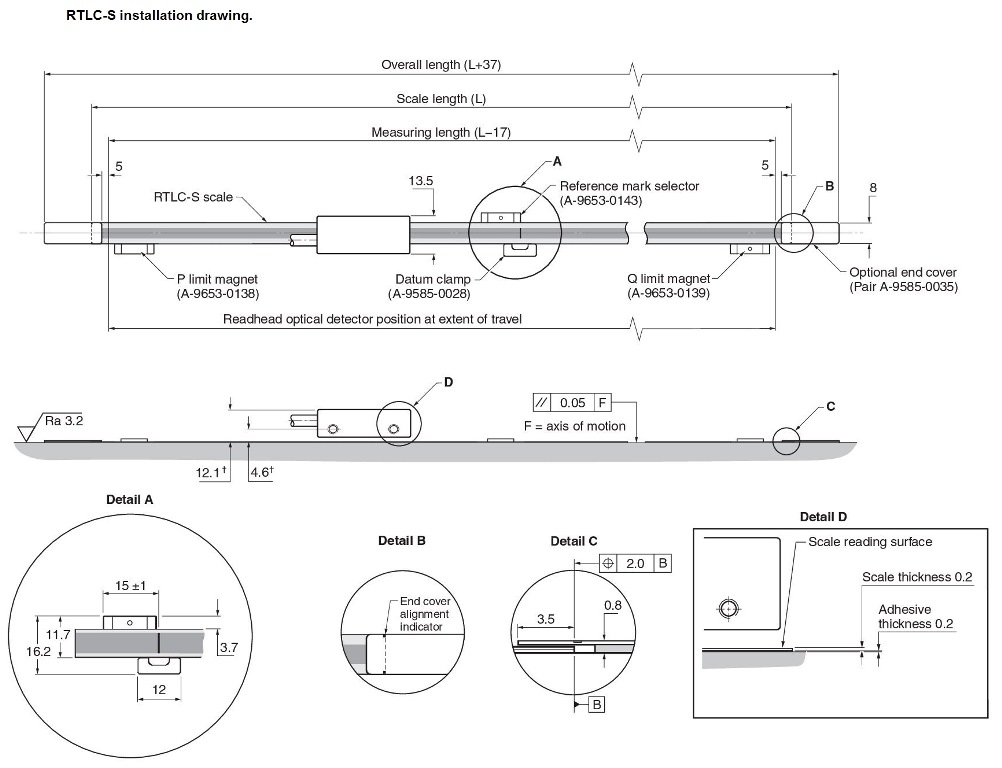

RTLC20-S is laid onto the substrate with self-adhesive backing tape. The self-adhesive is formulated in such a way that it allows for independent scale expansion to that of the substrate.
To complete the installation, both types of scale are clamped at one point to provide a datum position.
