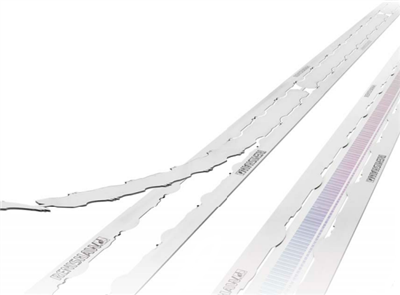

Renishaw: ATOM™ incremental encoder system linear scale A-9404-4100ATOM is Renishaw's miniature non-contact optical incremental linear and rotary encoder system. Its innovative design combines miniaturisation with leading-edge signal stability, dirt immunity and reliability. This combination is unique in the market place and represents a significant advance in the performance and reliability of miniature encoders.
ATOM systems are simple to install with integrated LED for signal integrity indication.
A range of interfaces is available including high-performance Ti, Ri and the compact PCB ACi interface.
RCLC40 - 40 um linear glass scale, 6.35 mm (w) x 1.1 mm (h), ± 3 µm accuracy, Reference marks at midpoint of travel and 5 mm from one end (reference mark choice depending on orientation of readhead)
Length
Description
Head gain setting
Part number
Price US$
18 mm (ML - 15 mm)
40 µm pitch glass scale
1
A-9404-4018
79
30 mm (ML - 27 mm)
A-9404-4030
83
55 mm (ML - 52 mm)
A-9404-4055
98
80 mm (ML - 77 mm)
A-9404-4080
121
100 mm (ML - 97 mm)
A-9404-4100
150
105 mm (ML - 102 mm)
A-9404-4105
130 mm (ML - 127 mm)
A-9404-4130
162
