Renishaw QUANTiC40 RTLC incremental encoder readhead (0.5UM 3.0M D 4MHZ)Q4BCZ30D50A
QUANTiC™ encoder series
The QUANTiC encoder system integrates
Renishaw's filtering optics design and interpolation technology to create a
super-compact, robust, incremental open optical encoder. QUANTiC encoders are
easy to use with exceptionally wide installation and operation tolerances,
along with built-in calibration functions.
QUANTiC readheads offer digital
output and a new analogue output variant with a wide variety of configurations
and linear or rotary scale options. Speeds up to 24 m/s can be achieved to meet
the most demanding motion control requirements.
The QUANTiC™ encoder series provides
robust incremental position measurement for linear, partial arc and rotary
systems with excellent metrology and wide installation tolerances. This reduces
or eliminates the need for mounting adjustment during the installation process.
QUANTiC encoders include Renishaw’s
high-performance integrated interpolation technology, removing the need for
additional adaptors or separate interfaces. This provides stable and reliable
position signals for a wide range of demanding measurement and motion control
applications.
The easy-to-use built-in installation
and calibration functions can be enhanced with the optional Advanced Diagnostic
Tool ADTi-100, providing comprehensive real-time encoder feedback during
installation and diagnostics.
In addition to Renishaw’s proven
unique filtering optics, QUANTiC encoders have a new detector design which
gives superior signal purity and dirt immunity. They are combined in a compact
readhead body, joining the VIONiC™ and TONiC™ family of encoders.
Robust position measurement over
contamination
QUANTiC readheads ensure excellent
motion control performance in a wide range of applications by minimising
positional error over scale contamination. A new detector design provides an
additional layer of signal filtering which helps to eliminate non-harmonic
signal frequencies, ensuring low Sub-Divisional Error (SDE) and minimal signal
variation over dirt or contamination on the scale.
Easy installation and set-up
The advanced optical design and
signal processing of the QUANTiC encoder provides increased installation and
operational tolerances whilst maintaining metrological performance. Low cost of
ownership is achieved through reduced installation and set-up times.

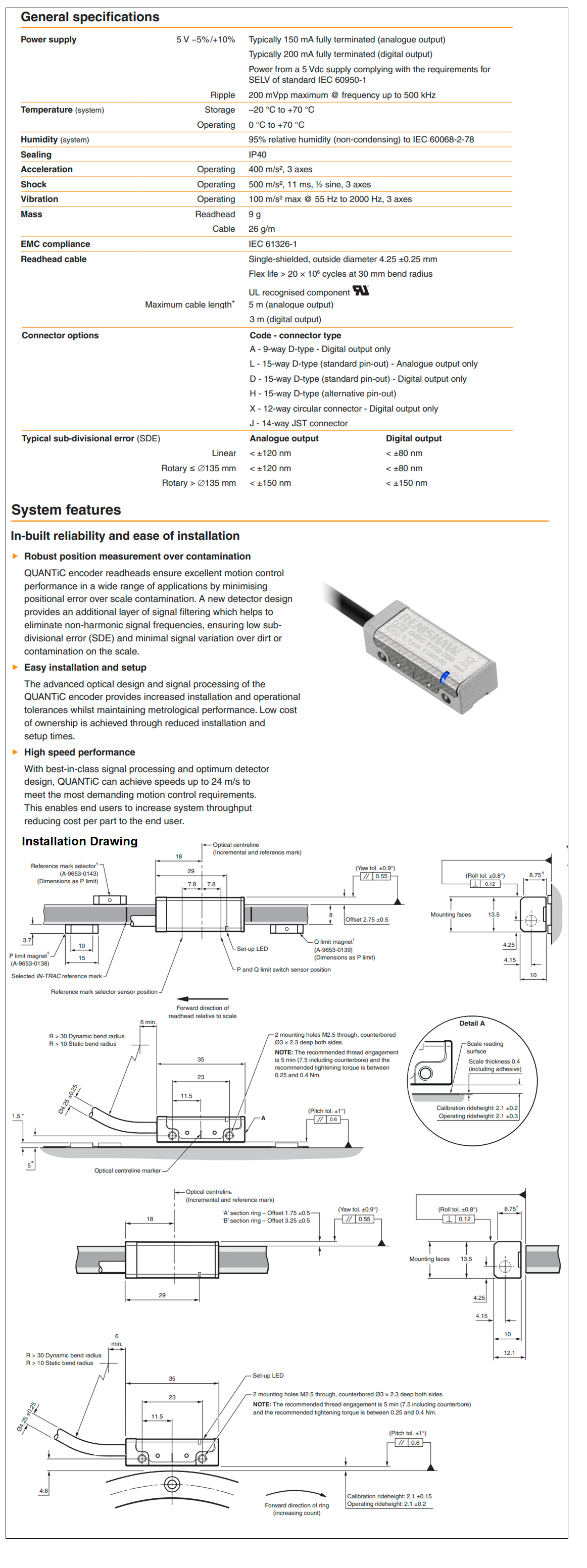

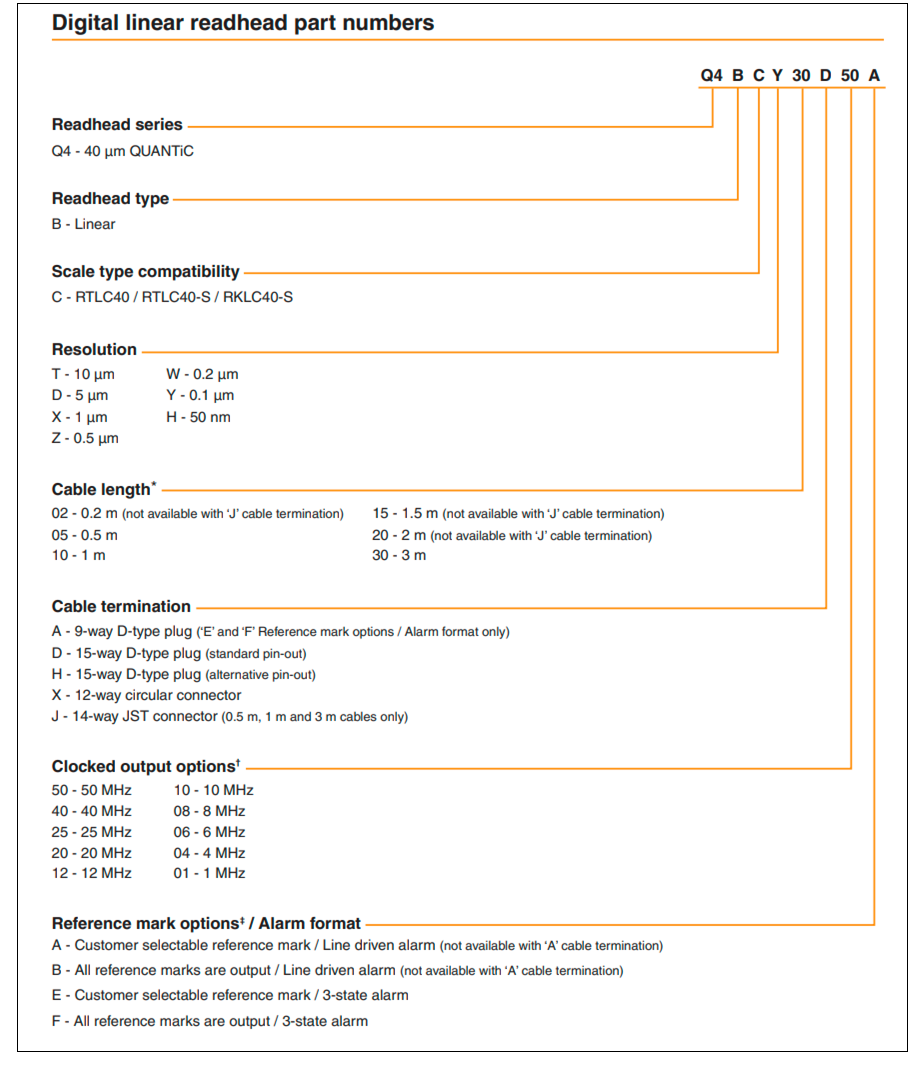

Model No:Q4BCZ30D50A
