RENISHAW: RESOLUTE absolute optical linear readhead (Fanuc)RL-37F-AS-001C-30-L
Renishaw: RESOLUTE - Optical Linear Absolute Readhead. Model: RL-37F-AS-001C-30-L

Alternate View





Price: (Members Only)


Availability: Lead Time 16 to 20 Weeks
Order #: RL-37F-AS-001C-30-L
Qty:

Description Ordering Information Specifications and Drawings


RENISHAW: RESOLUTE absolute optical linear readhead (Fanuc)RL-37F-AS-001C-30-L

Renishaw's RESOLUTE absolute encoder is now available with Fanuc Serial communications in linear encoder formats, offering sub-micron accuracy and resolutions to 1nm. The RESOLUTE range is therefore ideal for precision machine tool builders who require more performance from linear axes, giving smoother velocity ripple, improved servo stiffness and reduced hysteresis errors.

RESOLUTE is a true absolute encoder, meaning it determines absolute position immediately upon switch-on, thus eliminating the need for battery back-up or reference returns. It uses an innovative detection method that is analogous to an ultra-high-speed digital camera reading from a non-repeating, fine-pitch bar-code scale. Even at speeds up to 100 m/s, images are captured, analyzed and interpolated to resolutions as fine as 1 nm.
Compatible with: • RELA30 low-expansion, high-stability spar scales • RSLA30 stainless steel spars • RTLA30 with FASTRACK ™ carrier • RTLA30-S self-adhesive tape scale • RESA30 angle encoders • Ultra-high accuracy REXA30 angle encoders • Optional Advanced Diagnostic Tool ADTa-100

RESOLUTE linear readheads

FANUC linear

BiSS linear

Mitsubishi linear

Yaskawa linear

Siemens DRIVE CLiQ linear

REOLUTE-Scale Options:

RTLA30/FASTRACK, RSLA30, RELA30, RKLA30-S

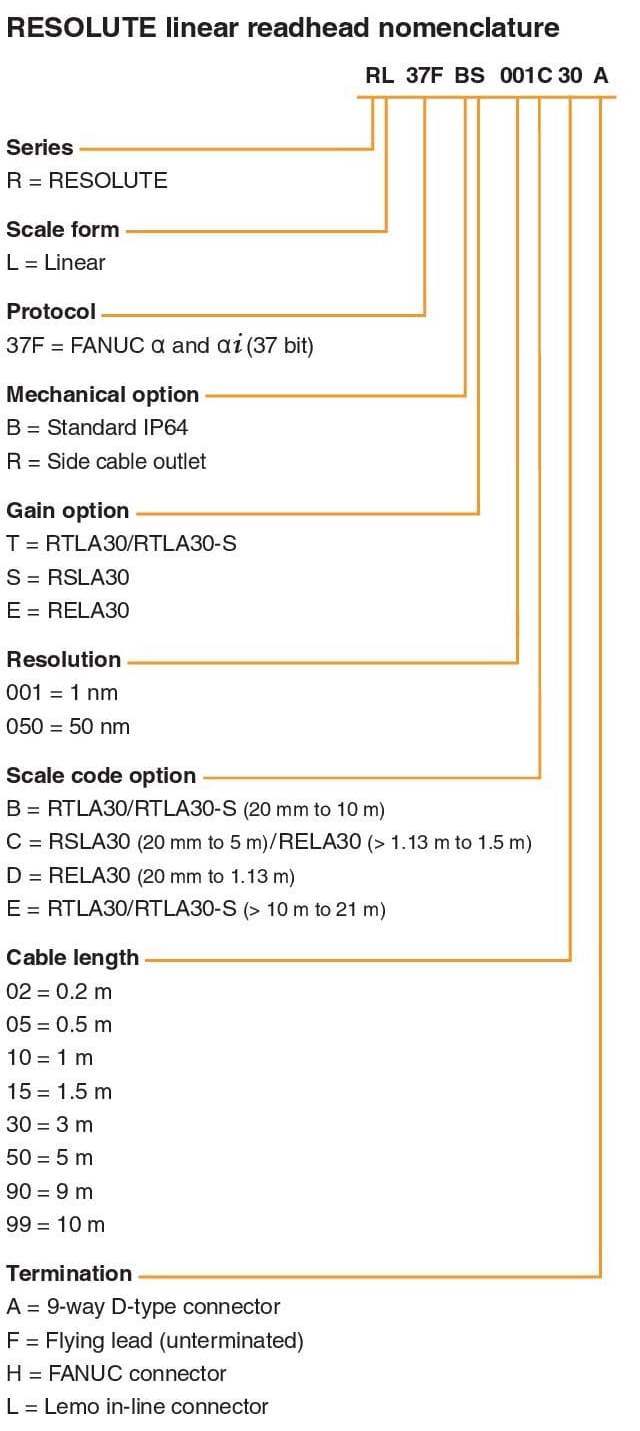

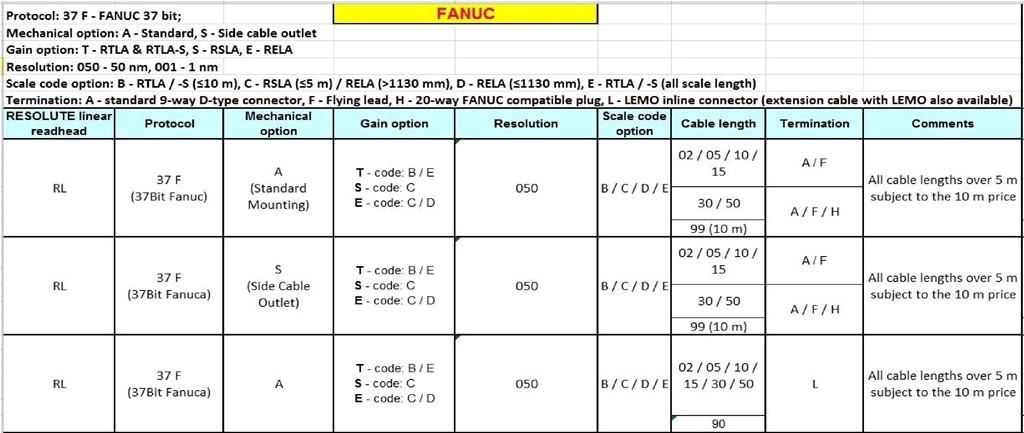

RESOLUTE readhead

Protocol

Mechanical option

Gain option

Resolution

Scale code

Cable length

Termination

Price US$

RL-37F-AS-050C-30A

37Bit Fanuc

A - Standard Mounting

S - code: C

050 - 50 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

03 Mtrs

A - standard 9-way D-type

1,057

RL-37F-AS-050C-99-A

37Bit Fanuc

A - Standard Mounting

S - code: C

050 - 50 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

10 Mtrs

A - standard 9-way D-type

1,123

RL-37F-SS-050C-50-A

37Bit Fanuc

S - Side cable outlet

S - code: C

050 - 50 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

05 Mtrs

A - standard 9-way D-type

1,092

RL-37F-SS-050C-99-A

37Bit Fanuc

S - Side cable outlet

S - code: C

050 - 50 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

10 Mtrs

A - standard 9-way D-type

1,157

RL-37F-AS-050C-50-L

37Bit Fanuc

A - Standard Mounting

S - code: C

050 - 50 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

05 Mtrs

L - LEMO inline connector

1,126

RL-37F-AS-050C-90-L

37Bit Fanuc

A - Standard Mounting

S - code: C

050 - 50 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

10 Mtrs

L - LEMO inline connector

1,192

RL-37F-SS-050C-50-L

37Bit Fanuc

S - Side cable outlet

S - code: C

050 - 50 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

05 Mtrs

L - LEMO inline connector

1,161

RL-37F-SS-050C-90-L

37Bit Fanuc

S - Side cable outlet

S - code: C

050 - 50 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

10 Mtrs

L - LEMO inline connector

1,226

RL-37F-AS-001C-30-A

37Bit Fanuc

A - Standard Mounting

S - code: C

001 - 1 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

03 Mtrs

A - standard 9-way D-type

1,071

RL-37F-AS-001C-99-A

37Bit Fanuc

A - Standard Mounting

S - code: C

001 - 1 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

10 Mtrs

A - standard 9-way D-type

1,137

RL-37F-SS-001C-30-A

37Bit Fanuc

S - Side cable outlet

S - code: C

001 - 1 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

03 Mtrs

A - standard 9-way D-type

1,106

RL-37F-SS-001C-99-A

37Bit Fanuc

S - Side cable outlet

S - code: C

001 - 1 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

10 Mtrs

A - standard 9-way D-type

1,171

RL-37F-AS-001C-30-L

37Bit Fanuc

A - Standard Mounting

S - code: C

001 - 1 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

03 Mtrs

L - LEMO inline connector

1,140

RL-37F-AS-001C-90-L

37Bit Fanuc

A - Standard Mounting

S - code: C

001 - 1 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

10 Mtrs

L - LEMO inline connector

1,205

RL-37F-SS-001C-30-L

37Bit Fanuc

S - Side cable outlet

S - code: C

001 - 1 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

03 Mtrs

L - LEMO inline connector

1,174

RL-37F-SS-001C-90-L

37Bit Fanuc

S - Side cable outlet

S - code: C

001 - 1 nm

C - RSLA (≤5 m) / RELA (>1130 mm)

10 Mtrs

L - LEMO inline connector

1,240
