Renishaw: RESOLUTE absolute optical encoder UHV (Ultra High Vacuum) with BiSS serial communications 32BIT/100DIA Compatible Readhead RA32BVA100B50V
RESOLUTE is a revolutionary new true absolute, fine pitch optical encoder system, with excellent dirt immunity, offering an impressive specification that breaks new ground in position feedback.
RESOLUTE’s patented technology combines 1 nm resolution with exceptionally high speed, up to 100 m/s (36 000 rev/min), reading from a range of high accuracy linear tape and spar scales or angle encoder rings.
RESOLUTE uses a unique single optical absolute track (a world first) with a nominal pitch of 30 μm, combined with sophisticated optics. This ensures wide set-up tolerances, very low sub-divisional error of ±40 nm and ultra-low noise (jitter) of less than 10 nm RMS, resulting in better velocity control performance and rock solid positional stability.
Reliability is assured by RESOLUTE’s excellent dirt immunity, built-in separate position checking algorithm and IP64 sealed readhead with wipe-clean recovery.
RESOLUTE is available with a variety of serial protocols. Please contact your local representative for the latest list.
Specifications:
True absolute non-contact optical encoder system: no batteries required
Wide set-up tolerances for quick and easy installation
High immunity to dirt, scratches and light oils
Resolutions to 1 nm or 32 bit rotary
100 m/s maximum speed for all resolutions (to 36 000 rev/min)
±40 nm sub-divisional error for smooth velocity control
Less than 10 nm RMS jitter for improved positional stability
Built-in separate position checking algorithm provides inherent safety
IP64 sealed readhead for high reliability in harsh environments
Integral set-up LED enables easy installation and provides diagnostics at a glance
Readhead and linear/rotary scales are bolt-hole compatible with SIGNUM™ encoders
Operates up to 80 °C
Integral over-temperature alarm

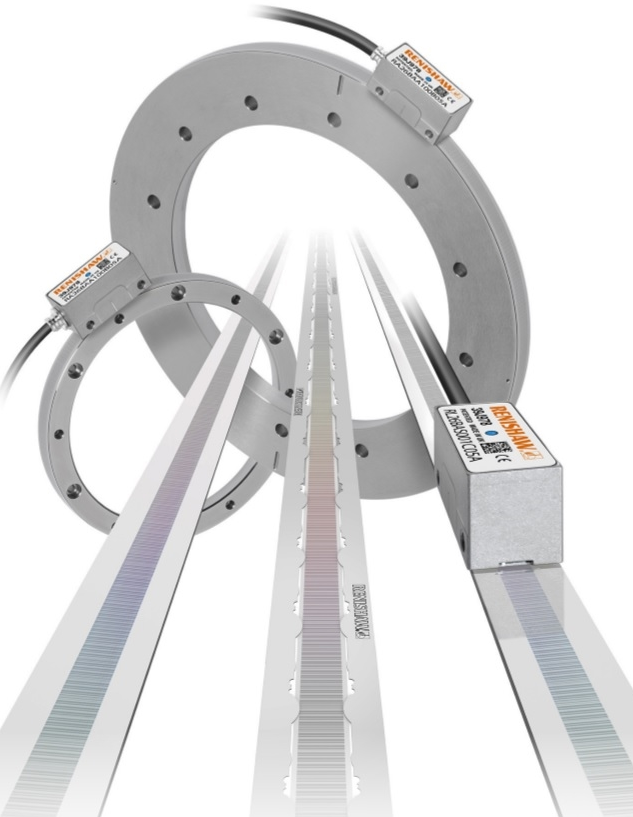

Compatible with:
RELA low expansion, high stability spar scales
RSLA stainless steel spars
RTLA with FASTRACK™ carrier
RTLA-S self adhesive tape scale
RESA angle encoders
Ultra-high accuracy REXA angle encoders
