Renishaw RKLA30-S absolute linear encoder system (1000mm Long) A-6667-0100
RKLA30-S is a narrow, low profile stainless steel tape scale featuring 30 µm pitch absolute scale code. It is accurate to ±5 µm/m and available in lengths up to 21 metres. The RKLA30-S is mastered to the machine substrate giving improved metrological performance when the scale ends are rigidly fixed to the substrate.

The flexible RKLA30-S scale is also suitable for partial arc measurement where the small cross-sectional area allows it to be wrapped around a drum, shaft or arc.
Narrow, robust and versatile scale

RKLA is a robust, 6 mm wide stainless steel encoder tape scale with a thickness of 0.15 mm. This allows the scale, when rigidly fixed to a machine axis, to become ‘mastered' to the machine substrate, matching its thermal expansion coefficient and behaviour. Differential movement between the scale and the machine is thus minimised

RKLA partial arc encoder scales

RKLA encoder scales can be conveniently cut to required length and mounted on a simple cylindrical substrate with no requirement for complex mounting features or tightly toleranced alignment surfaces.

Features

· Serial interfaces: BiSS® C, FANUC, Mitsubishi, Panasonic, Siemens DRIVE-CLiQ®, Yaskawa

· Readhead size: 36 x 16.5 x 17.2 mm

· Resolutions to 1 nm at 100 m/s

· ±5 µm/m accuracy at 20 °C

· Side cable outlet version available

· Optional Advanced Diagnostic Tool

Benefits

· Narrow 6 mm wide scale suitable for space limited applications

· Suitable for partial arc measurement

· Excellent motion control performance

· High dirt immunity

· Less than 10 nm RMS jitter for improved positional stability

· ±40 nm Sub-Divisional Error for smooth velocity control

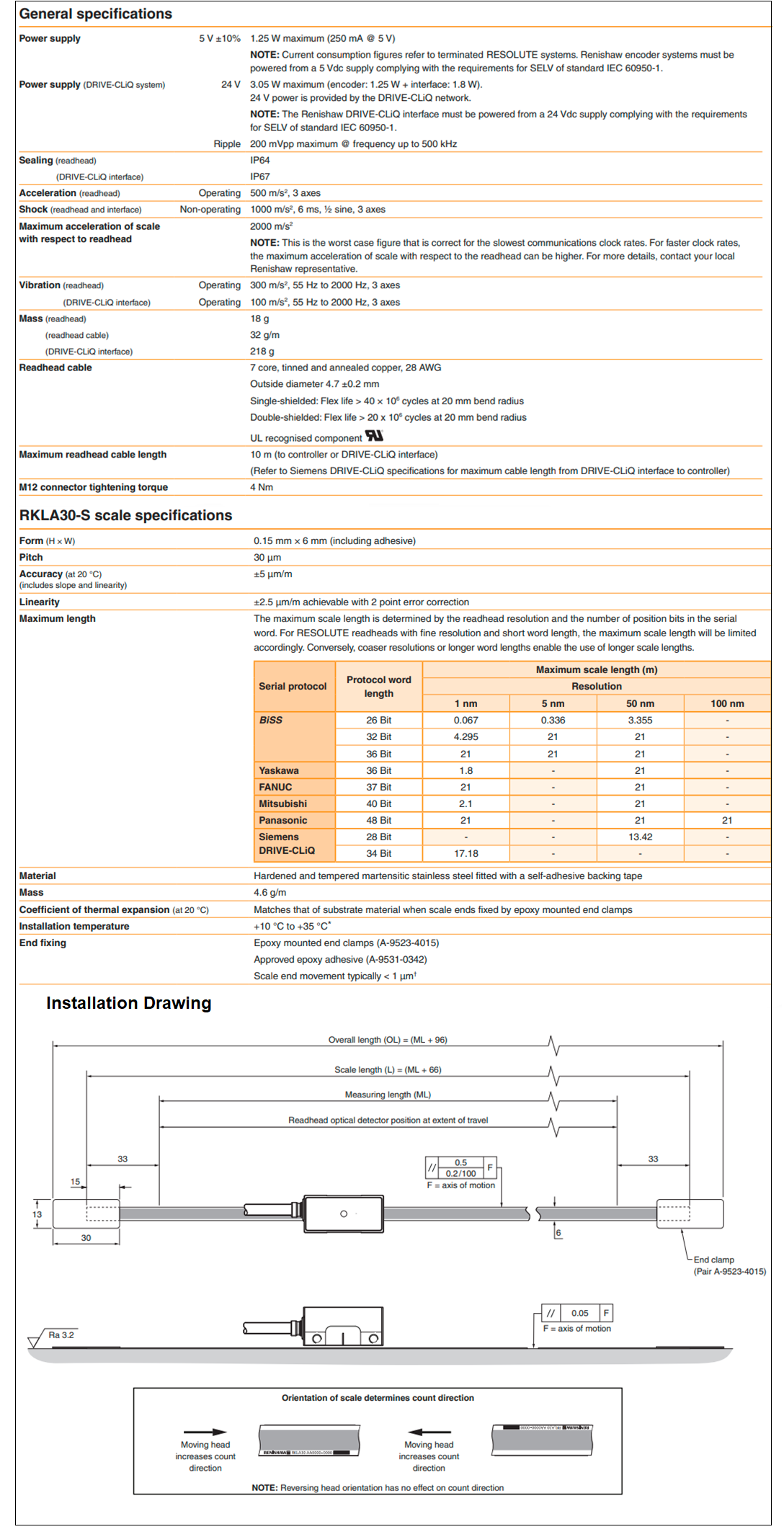

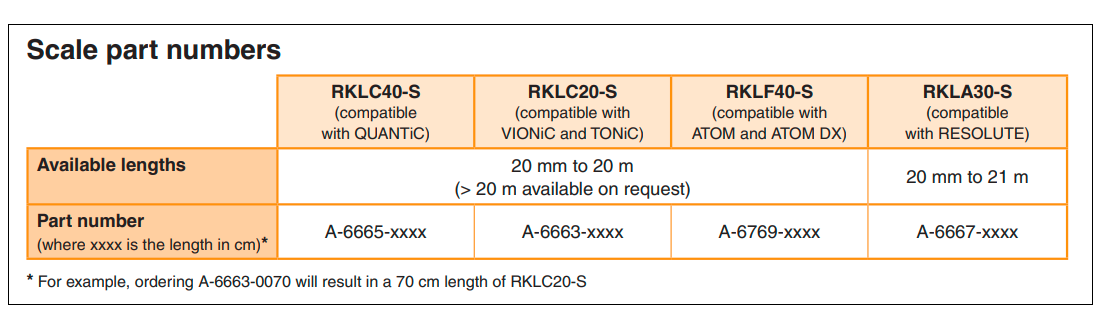

Model No:A-6667-0100
