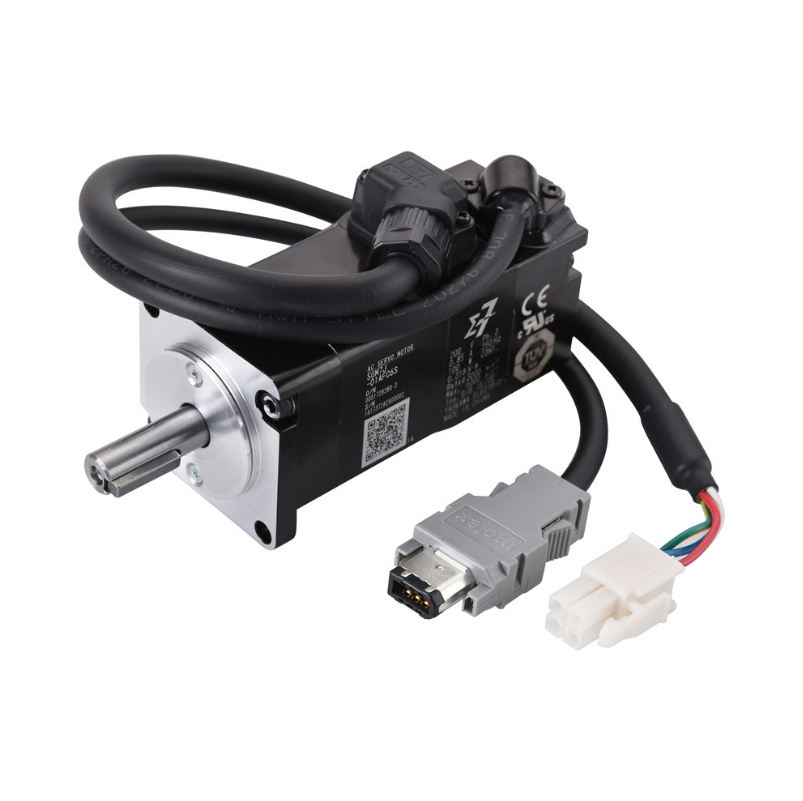

Yaskawa: AC Servo System Σ7 100W Motor SGM7J-01AFC6E
SGM7J-01AFC6E


Price: (Members Only)


Availability: Subject to availability
Order #: SGM7J-01AFC6E
Qty:

Description Ordering Information Specifications and Drawings



Model: SGM7J-01AFC6E
List Prices
$448.00


Type: Servo Motor

Phase: Three-phase

Output Power:100W

Protect Feature: Drip-proof

Frequency:50/60Hz

AC Voltage:200V

Efficiency: High efficiency

Rated Torque:0.318Nm
Rated Speed:3000rpm
Rated Current:0.85A
Holding Brake Voltage: DC 24V

Encoder:24-bit resolution

Certification:VDE,CCC,ROHS,UL,CE



Supporting drive

Model: SGD7S-R90A00A
List Price:$398.00
Buy Now

AC Voltage:200V

Output Power:100W

Analog Control with Advanced Features

A Yaskawa SGD7S SERVOPACK meets the need for an analog voltage or pulse train control interface, while also offering the advanced capabilities of a Sigma-7 servo amplifier. A frequency response of 3.1 kHz assures high-speed response and improved settling time. a tuning-less mode and improved autotuning features eliminate the need to manually tune a servo, both at installation and in ongoing everyday use.



Supporting Accessory: Motor Power Cable

Model: JZSP-C7M33-03-E

List Price: $55.00

buy now
3m standard cable with connectors and with brake wires





Supporting Accessory: Motor Encoder Cable

Model:
JZSP-CMP00-03-E

List Price: $54.00

Buy now

3 meters incremental encoder cable


Supporting Accessory: I/O Signal Soldered Connector Kit

Model: LJZSP-CSI9-2-E

List Price: $26.00

Buy Now

I/O Signal Soldered Connector Kit
