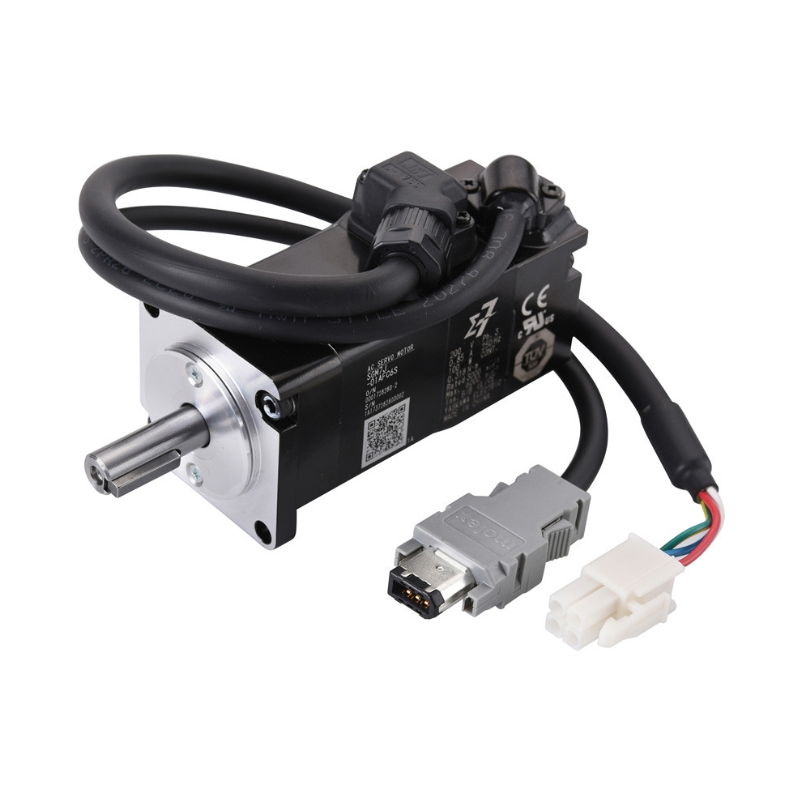

Yaskawa: AC Servo System Σ7 400W Motor SGM7J-04A7C6E
SGM7J-04A7C6E


Price: (Members Only)


Availability: Subject to availability
Order #: SGM7J-04A7C6E
Qty:

Description Ordering Information Specifications and Drawings




Model: SGM7J-04A7C6E

List Prices:$635.00

Type: Servo Motor

Phase: Three-phase

Output Power:0.4KW

Protect Feature: Drip-proof

Frequency:50/60Hz

AC Voltage:200V

Efficiency: High efficiency

Rated Torque:1.27Nm

Rated Speed:3000rpm

Rated Current:2.5A
Holding Brake Voltage: DC 24V
Encoder:24-bit resolution

Certification:VDE,CCC,ROHS,UL,CE



Supporting drive

Model: SGD7S-2R8A00A
List Price:$421.00
Buy Now

AC Voltage:200V

Output Power:0.4KW

Analog Control with Advanced Features

A Yaskawa SGD7S SERVOPACK meets the need for an analog voltage or pulse train control interface, while also offering the advanced capabilities of a Sigma-7 servo amplifier. A frequency response of 3.1 kHz assures high-speed response and improved settling time. a tuning-less mode and improved autotuning features eliminate the need to manually tune a servo, both at installation and in ongoing everyday use.




Supporting Accessory: Motor Power Cable

Model: JZSP-C7M33-03-E

List Price: $55.00

buy now

3m standard cable with connectors and with brake wires




Supporting Accessory: Motor Encoder Cable

Model:
JZSP-CSP12-03-E

List Price:$118.00
Buy now

3m standard absolute encoder cable

Supporting Accessory: I/O Signal Soldered Connector Kit

Model: LJZSP-CSI9-2-E

List Price:$26.00
Buy Now


I/O Signal Soldered Connector Kit
