Nanotec: Stepper Motors with Gearboxes ST4118L3004-A + GPLE40-
Nanotec: Hybrid Stepper Motors with Precision Planetary Gearboxes ST4118L3004-A

Alternate View


Nanotec
Availability:
ST4118L3004-A + GPLE40-2S-20: 1 week for quantity 2 & 4-6 weeks for more.
ST4118L3004-A + GPLE40-3S-60: 6-8 weeks lead time.


Motor + Gearbox*:


Qty:
Options:

Stepper Motor + Gearbox:
1) ST4118L3004-A + GPLE40-2S-20
2) ST4118L3004-A + GPLE40-3S-60





Ordering Information:
Nanotec: Hybrid Stepper Motors ST4118L3004-A
with Precision Planetary Gearboxes
GPLE40-xx-xx

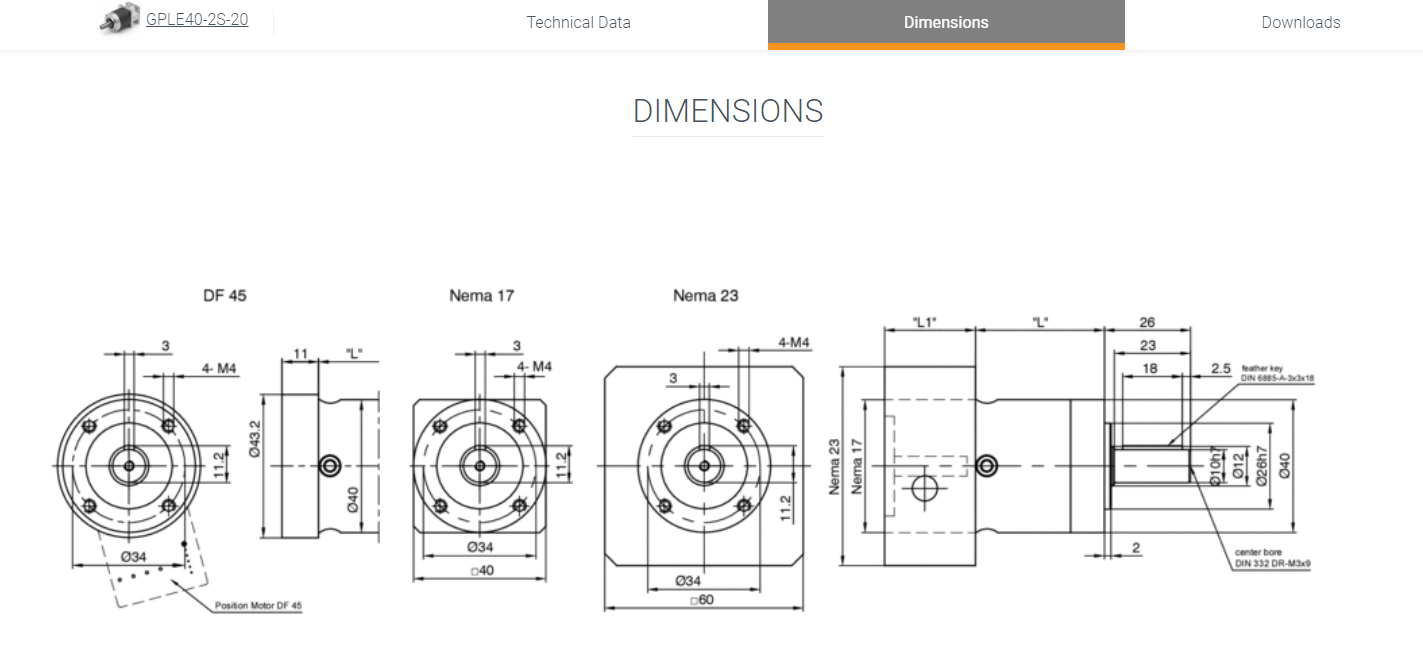

Specifications and Drawings:

Nanotec: ST4118L3004-A 55 + GPLE40-2S-20 & ST4118L3004-A 55 + GPLE40-3S-60

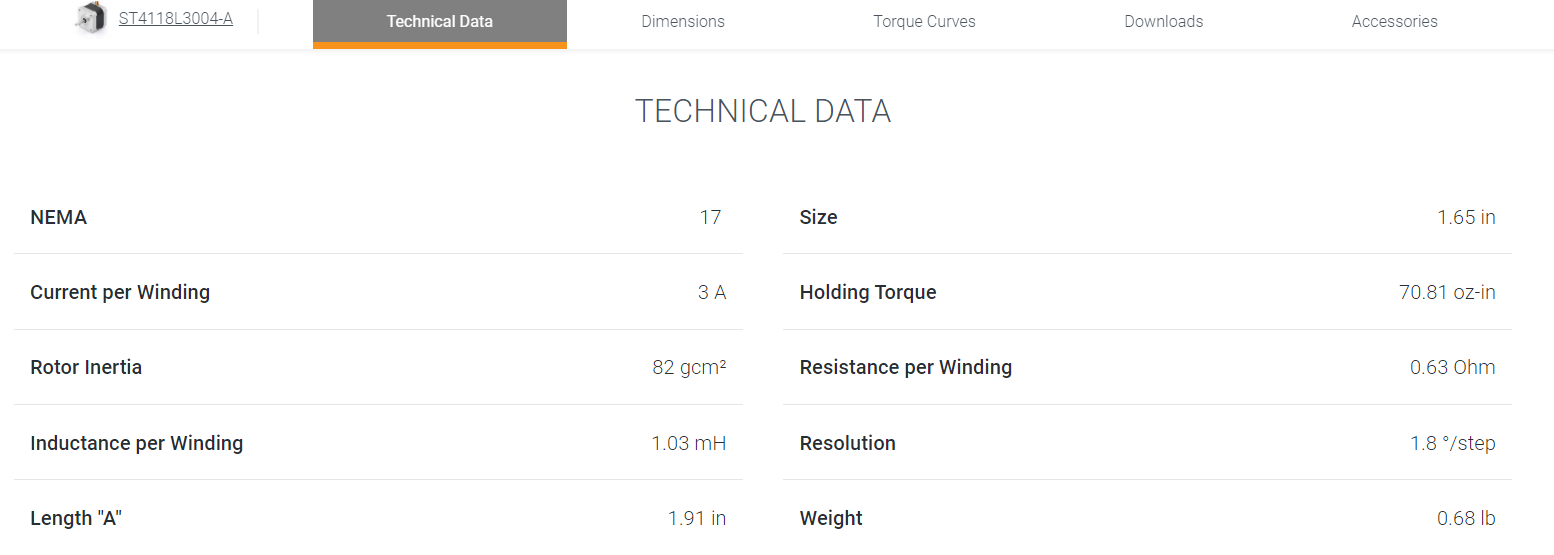

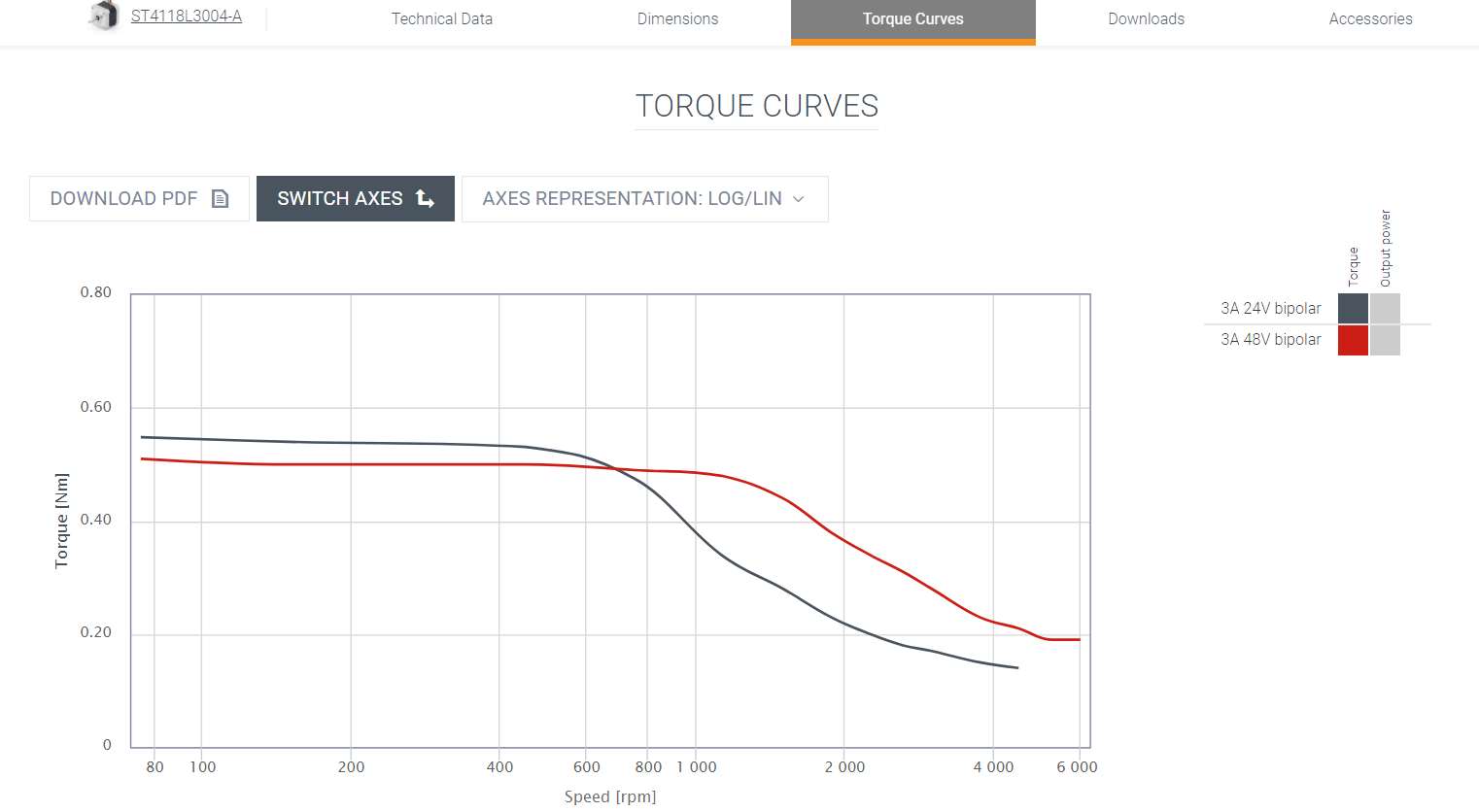

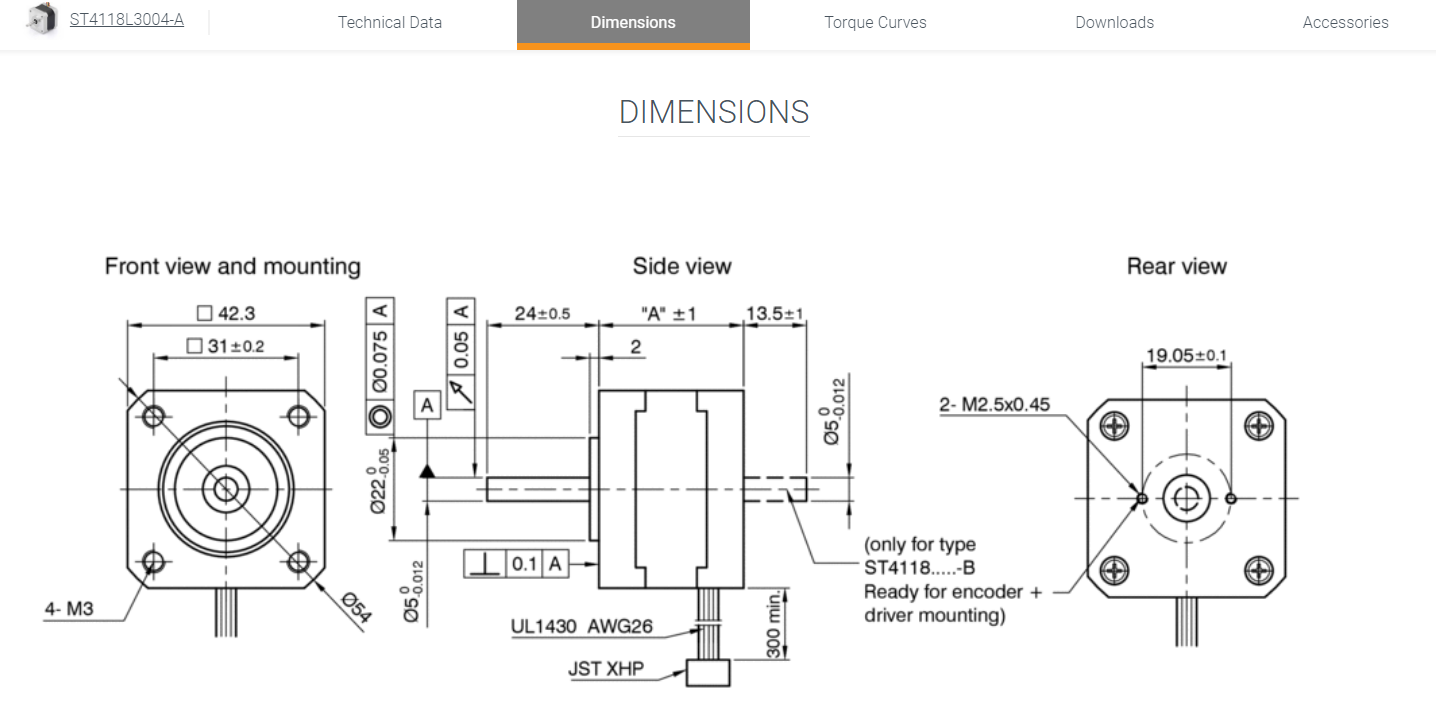

Stepper Motor:

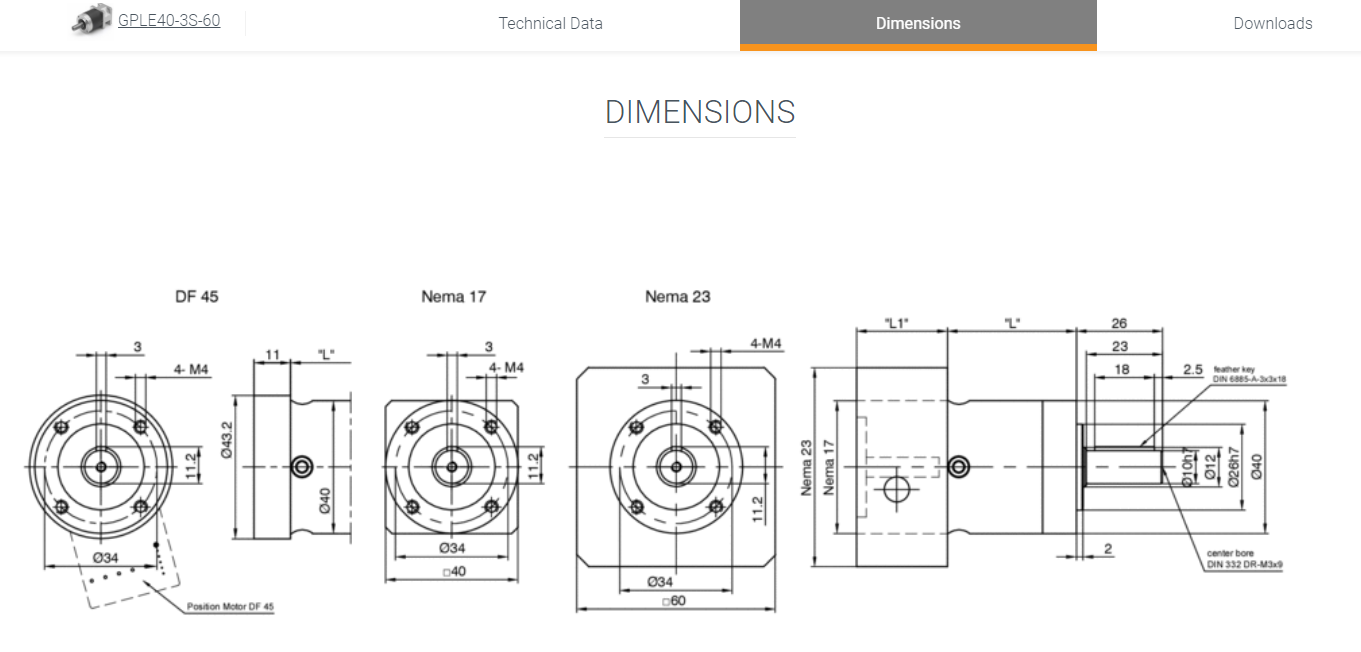

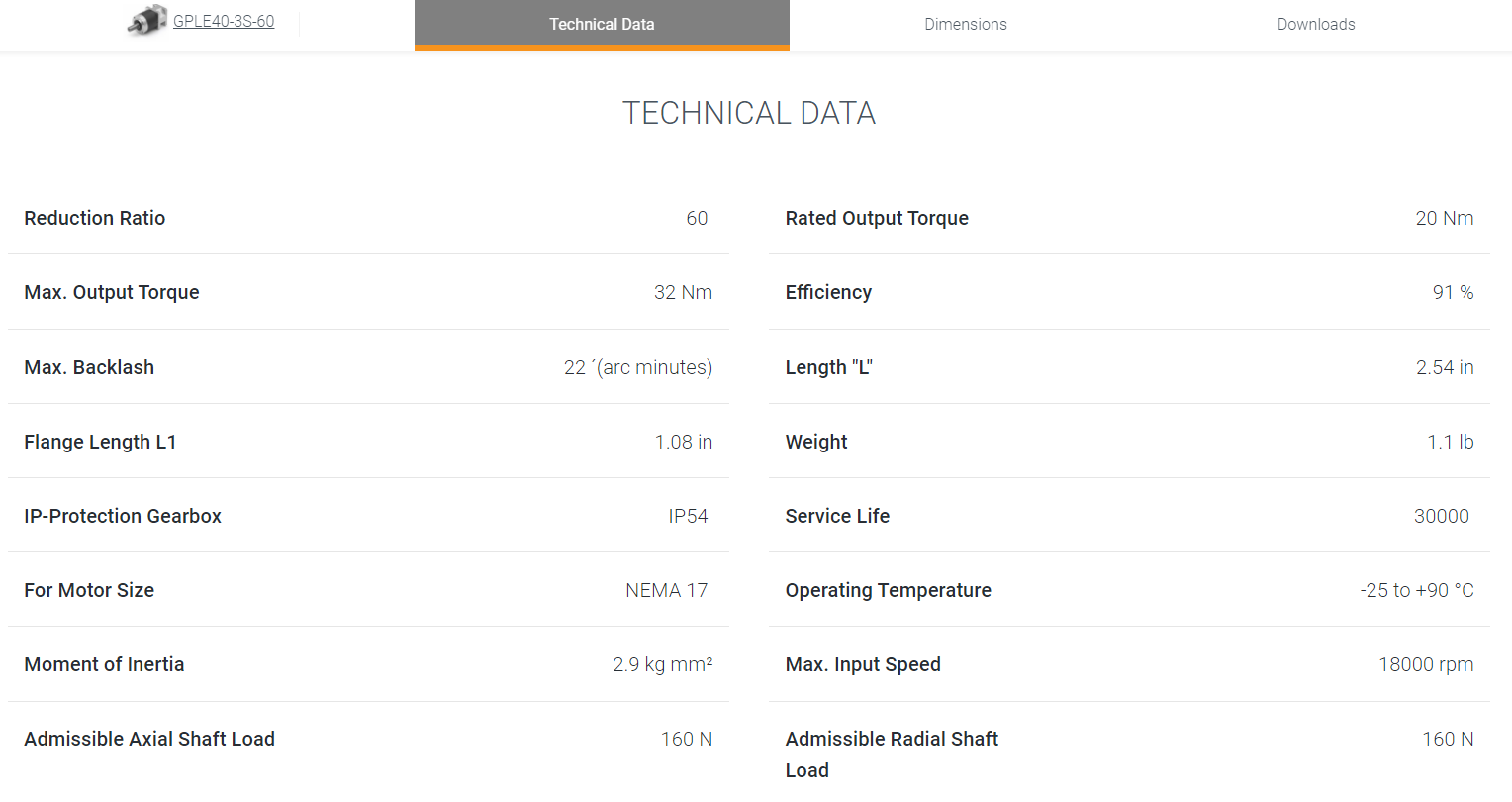

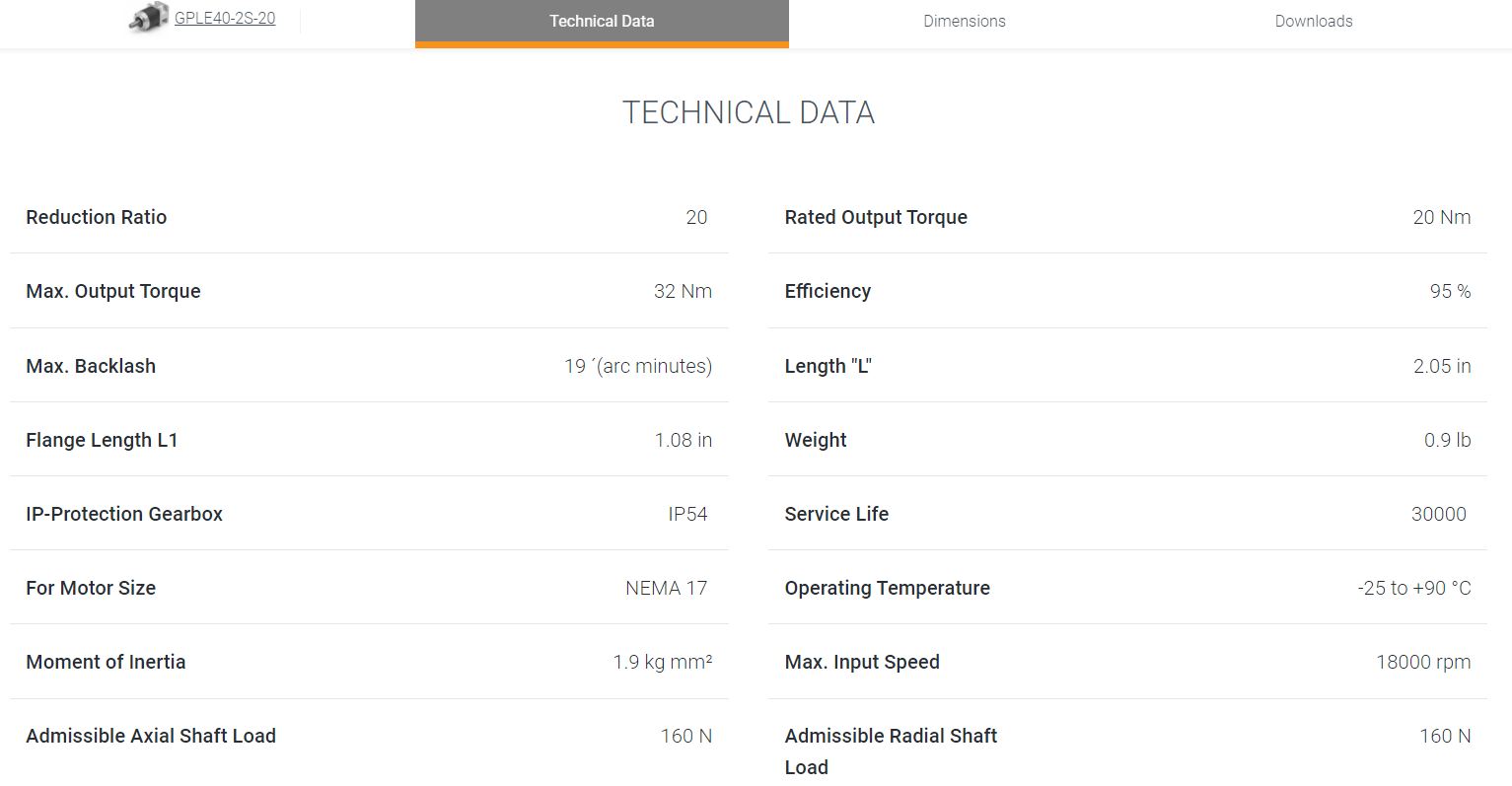

Gearboxes:
