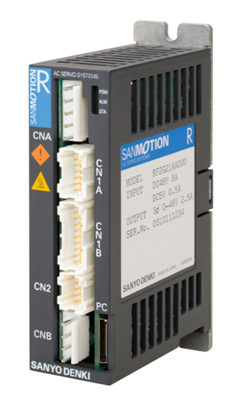

Sanyo Denki: Analog DC Input Type Servo Amplifier RF2GxxA0A00

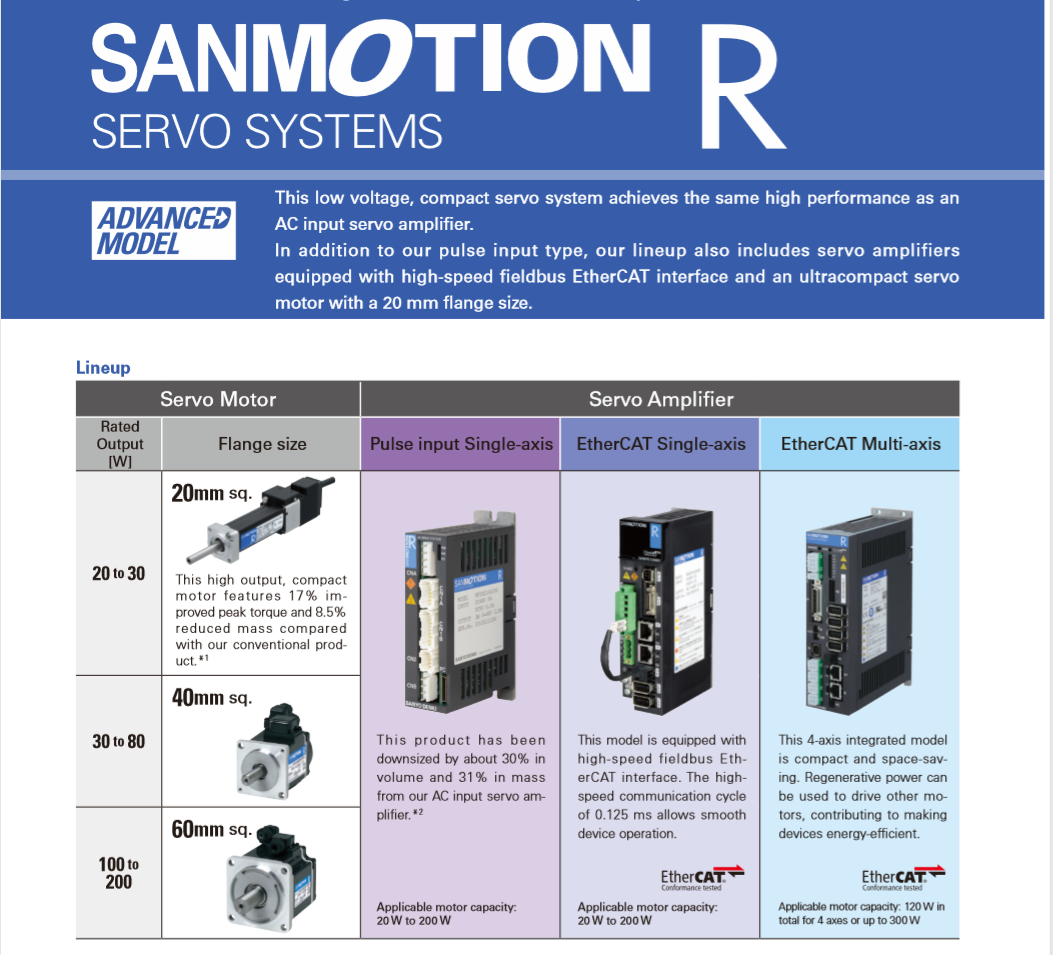

SANMOTION R Advanced Model, 48VDC

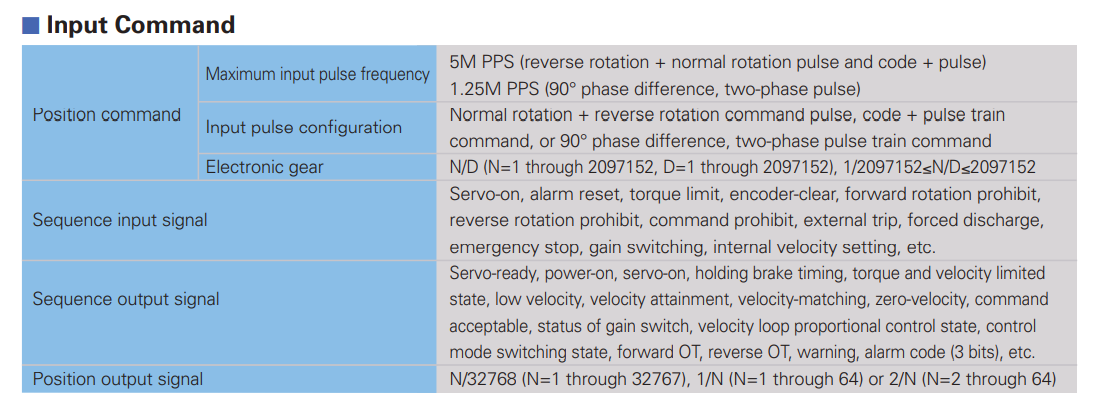

Highly accurate AC servo systems consisting of compact, high-torque servo motors and servo amplifiers that reduce positioning settling time. With highly responsive command following and vibration controls to minimize machine stand resonance, they contribute to shortened takt time. They are ideal for applications where high precision movement is required, such as semiconductor manufacturing equipment, chip mounters, robots, and machine tools.Analog/Pulse Input ModelModel-based Following ControlAuto TuningVibration Suppression Control Disturbance Suppression Position command Pulse Input Frequency: Max. 5M Hz Velocity Command** Analog Voltage: Max. ±12V ; Preset Command: 3 points Torque Command** Analog Voltage: Max. ±12V **AC input type only

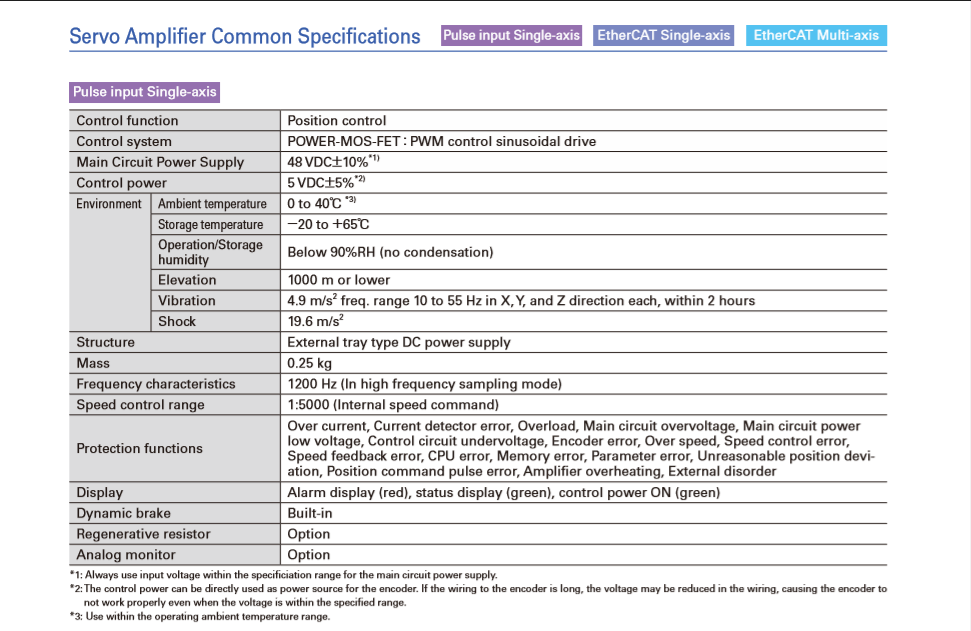

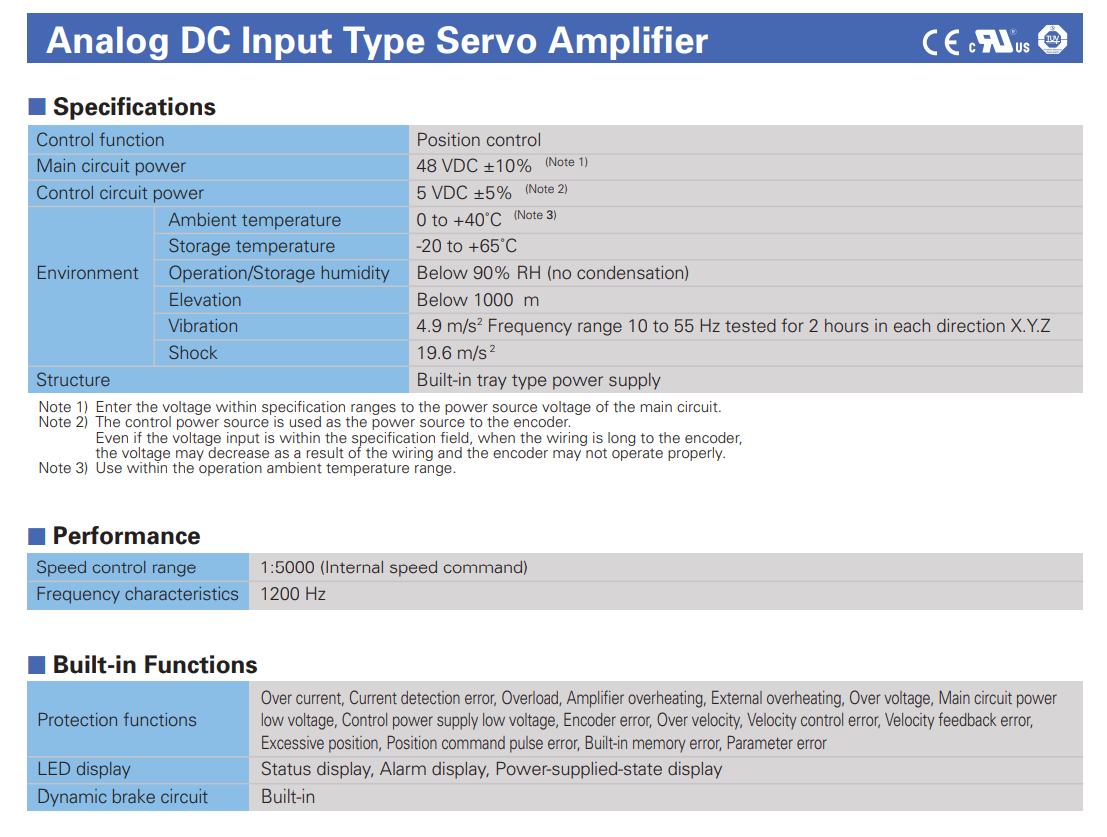

Specification:
Capacity : 25A, 40A
Waterproof and Dust Proof: All models of R Advanced Servo Motors have high IP65 waterproof and dustproof ratings, and variants rated IP67 are available for models other than R Servo Motors from 130 mm sq. to 220 mm sq.
All-in-One Control: Configurable parameters allow you to switch between control modes for torque, position or velocity.
5-digit LED Display, Built-in Operator: The built-in operator allows you to change parameters and monitor the amplifier status and alarm trace.
Test Function (JOG): On-board JOG operation function is available for testing motor and amplifier connection without the need to connect to a host device.
Setup Software: The setup software allows you to set parameters, and view graphical displays of monitored position, velocity or torque waveforms.

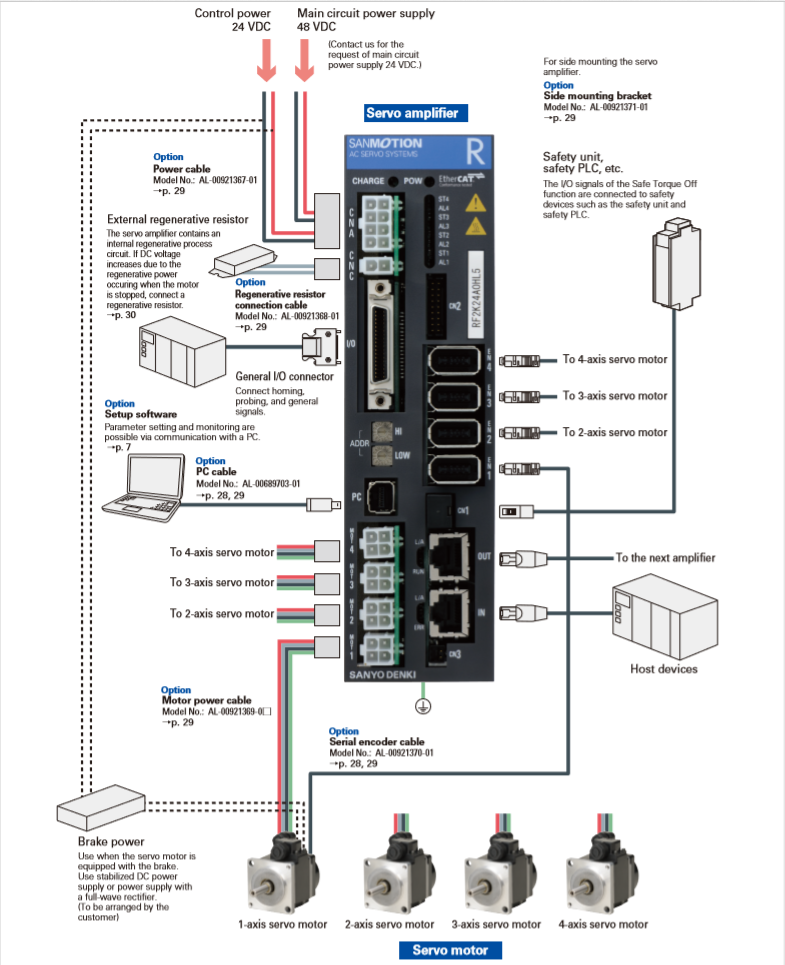

Multiaxial Monitor Function: The setup software allows up to 15 axes to be monitored. To enable monitoring of multiple axes, an optional communication converter and amplifier communication cable are available. *Analog/Pulse input type only
Built-in Regeneration Resistor: It is possible to choose whether to equip regeneration resistance or not. If the regeneration resistance capability is insufficient, it is possible to use an external regeneration resistance unit.
Built-in Dynamic Brake: A built-in dynamic brake provides emergency stop capability. The six kinds of motion sequences for the dynamic brake can be selected by parameter setting.
Fully-closed loop control: Fully-closed loop control is possible using a linear scale mounted on the device together with high resolution encoder information.______________________________________________________________________________________________________________________________
