Schabmuller: Asynchronous motors/generators TSA-XXX-XXX-XXX

Asynchronous motors/generators

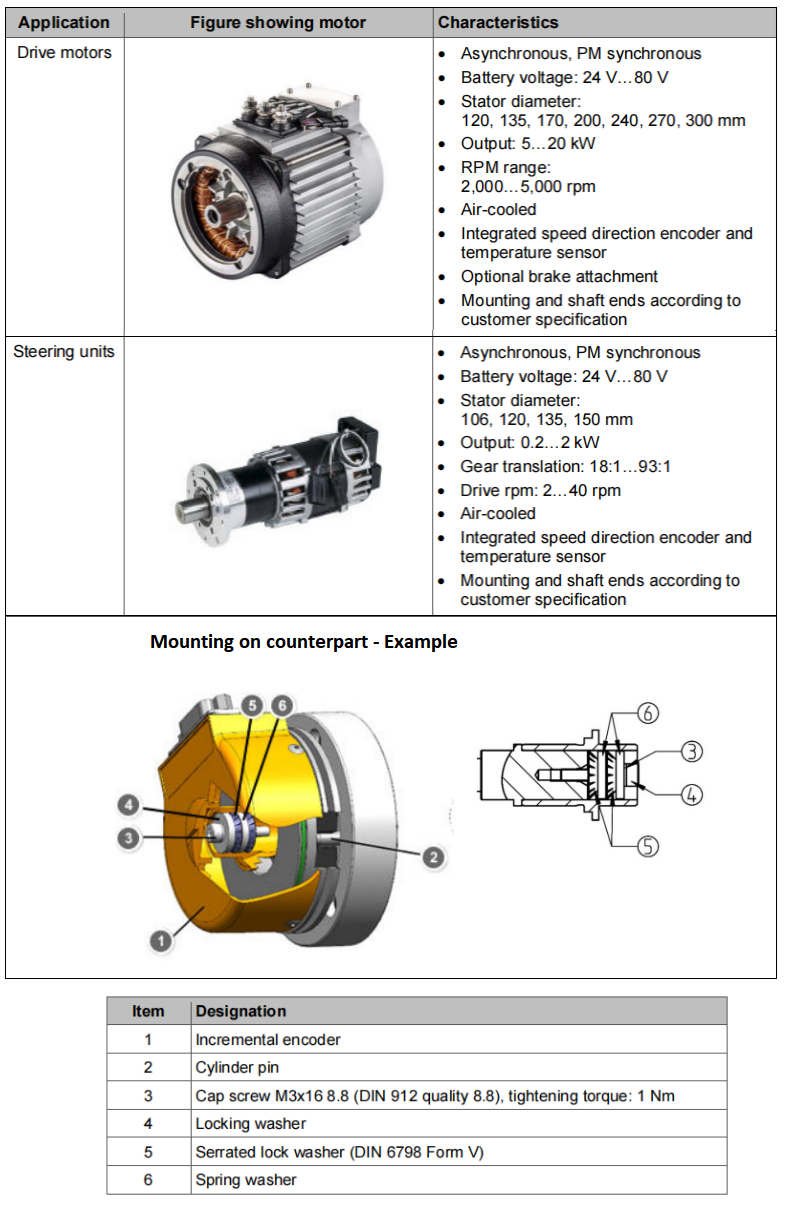

High-performance asynchronous machines for battery-powered vehicles in the range from 24 to 750V, from 0.5 to 40kW air-cooled, and up to 100kW water-cooled. Connections and dimensions are tailored to customer needs.
The motors are suitable for clockwise and anticlockwise rotation as standard. If the mains cables are connected with U, V, W, a clockwise rotation results (view of the drive-side shaft end). If two connections are interchanged (e.g. W, V, U), the result is anticlockwise rotation. For machines with only one direction of rotation, the prescribed direction of rotation is indicated by a direction arrow on the machine.
Schabmüller specializes in developing and manufacturing advanced asynchronous motors and generators for various applications. Let’s delve into the details:
High-Performance Asynchronous Machines:
These machines are designed for battery-powered vehicles and operate within a voltage range of 24 to 750V.
They come in both air-cooled (ranging from 0.5 to 40kW) and water-cooled versions (up to 100kW).
Customized connections and dimensions ensure they meet specific customer requirements.
These motors are suitable for both clockwise and anticlockwise rotation as standard12.

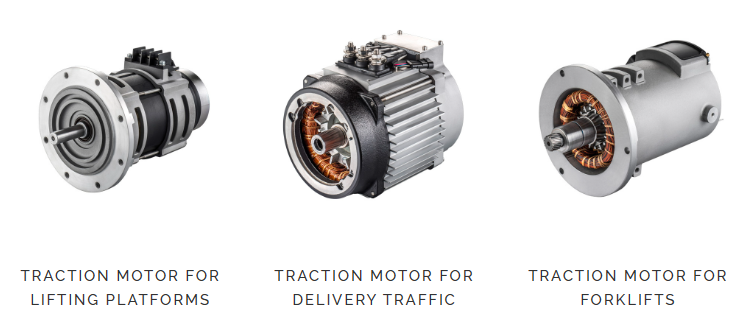

Applications:
Industrial Vehicles: Schabmüller’s motors find use in industrial vehicles.
Driverless Transport Systems: They contribute to efficient transport solutions.
Lifting Platforms: These motors power lifting platforms.
Ground Support Equipment (GSE) and Aircraft Tractors: Ensuring smooth operations at airports.
Electric Vehicles and Golf Carts: Supporting eco-friendly mobility3.
In summary, Schabmüller’s asynchronous motors and generators play a crucial role in various industries, providing reliable and efficient power solutions.
