B4240 Series

Transmotec Brushless DC Motors cover a large range of miniature sized motors to heavy duty models. The designs include both round and square shaped motor bodies. All motors include hall-effect sensors for phase shift commutation.

Standard data motors are kept in stock for quick delivery and customized motors are offered upon request. Customizations and configurations typically include: various winding's, cables, connections, shaft outputs, gear heads, encoders etc…

Features:

• Large range of miniature motors to heavy duty models
• Round and square shaped motor bodies
• Integral hall-effect sensors
• Quick delivery from stock
• Customizable

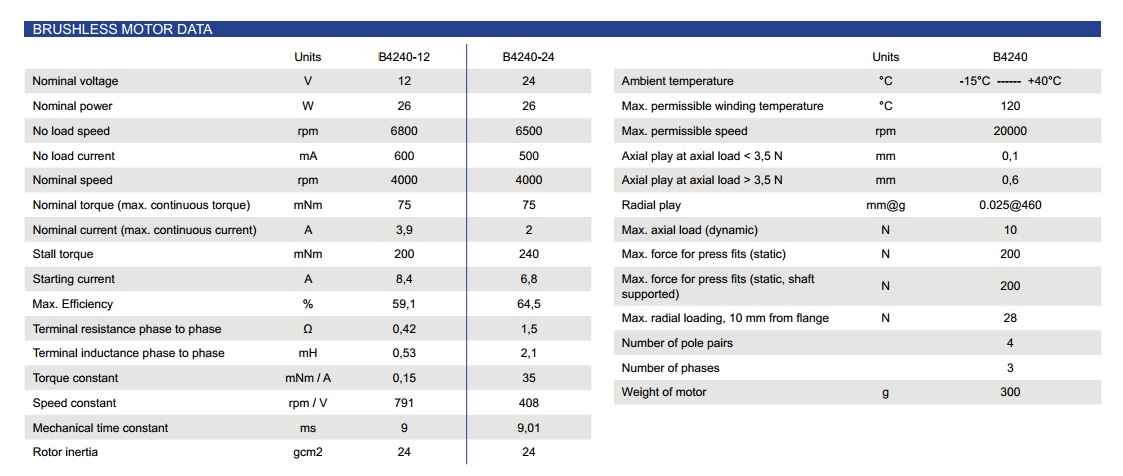

• Nominal Voltage (V): 12, 24
• Nominal Power (W): 26
• No Load Speed (rpm): 6800, 6500
• No Load Current (mA): 600,500
• Nominal Speed (rpm): 4000
• Nominal Torque (mNm): 75
• Nominal Current (A): 3,9 &2
• Stall Torque (mNm): 200,240
• Max. Efficiency (%): 59,1 & 64,5
• Weight (g): 300g
