B86112 Series

Transmotec Brushless DC Motors cover a large range of miniature sized motors to heavy duty models. The designs include both round and square shaped motor bodies. All motors include hall-effect sensors for phase shift commutation.

Standard data motors are kept in stock for quick delivery and customized motors are offered upon request. Customizations and configurations typically include: various winding's, cables, connections, shaft outputs, gear heads, encoders etc…

Features:

• Large range of miniature motors to heavy duty models
• Round and square shaped motor bodies
• Integral hall-effect sensors
• Quick delivery from stock
• Customizable

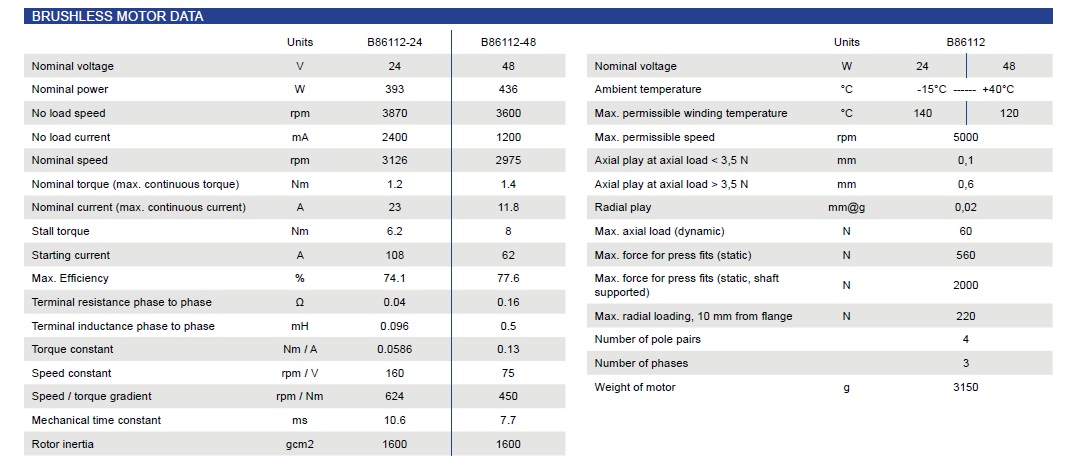

• Nominal Voltage (V): 24, 48
• Nominal Power (W): 393, 436
• No Load Speed (rpm): 3870, 3600
• No Load Current (mA): 2400, 1200
• Nominal Speed (rpm): 3126, 2975
• Nominal Torque (mNm): 1200, 1400
• Nominal Current (A): 23, 11.8
• Stall Torque (mNm): 6200, 8000
• Max. Efficiency (%): 74.1, 77.6
• Weight (g): 3150
