B8672 Series

Transmotec Brushless DC Motors cover a large range of miniature sized motors to heavy duty models. The designs include both round and square shaped motor bodies. All motors include hall-effect sensors for phase shift commutation.

Standard data motors are kept in stock for quick delivery and customized motors are offered upon request. Customizations and configurations typically include: various winding's, cables, connections, shaft outputs, gear heads, encoders etc…

Features:

• Large range of miniature motors to heavy duty models
• Round and square shaped motor bodies
• Integral hall-effect sensors
• Quick delivery from stock
• Customizable

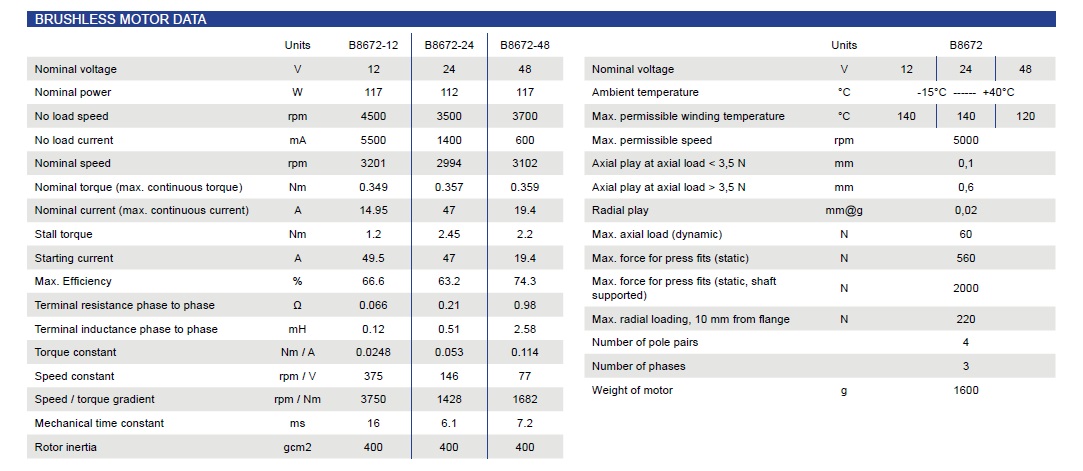

• Nominal Voltage (V): 12, 24, 48
• Nominal Power (W): 117, 112, 117
• No Load Speed (rpm): 4500, 3500, 3700
• No Load Current (mA): 5500, 1400, 600
• Nominal Speed (rpm): 3201, 2994, 3102
• Nominal Torque (mNm): 349, 357, 359
• Nominal Current (A): 14.95, 47, 19.4
• Stall Torque (mNm): 1200, 2450, 2200
• Max. Efficiency (%): 66.6, 63.2, 74.3
• Weight (g): 1600
