Transmotec Brushless DC Motors B8686
Transmotec Brushless DC Motors B8686


Price: (Members Only)


Order #: B8686




Qty:

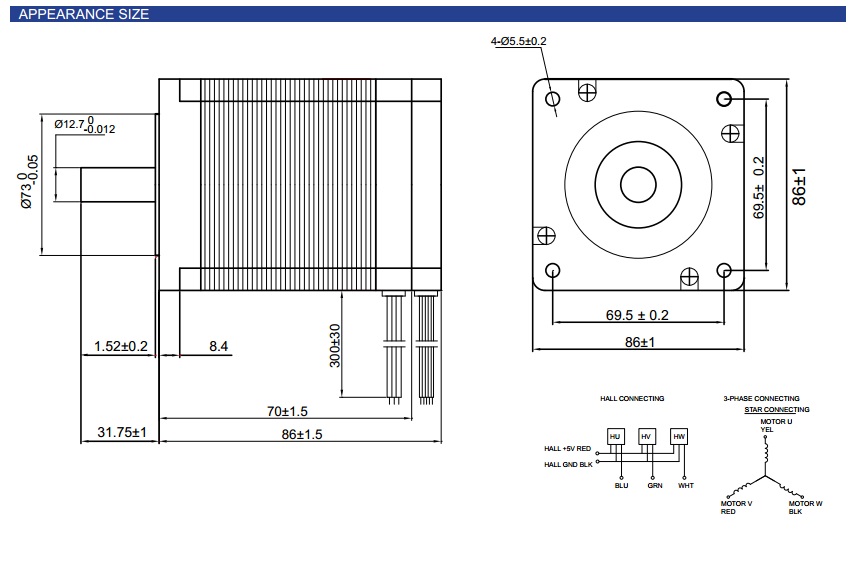

Description Specifications and Drawings


B8686 Series

Transmotec Brushless DC Motors cover a large range of miniature sized motors to heavy duty models. The designs include both round and square shaped motor bodies. All motors include hall-effect sensors for phase shift commutation.

Standard data motors are kept in stock for quick delivery and customized motors are offered upon request. Customizations and configurations typically include: various winding's, cables, connections, shaft outputs, gear heads, encoders etc…

Features:

  • Large range of miniature motors to heavy duty models
  • Round and square shaped motor bodies
  • Integral hall-effect sensors
  • Quick delivery from stock
  • Customizable

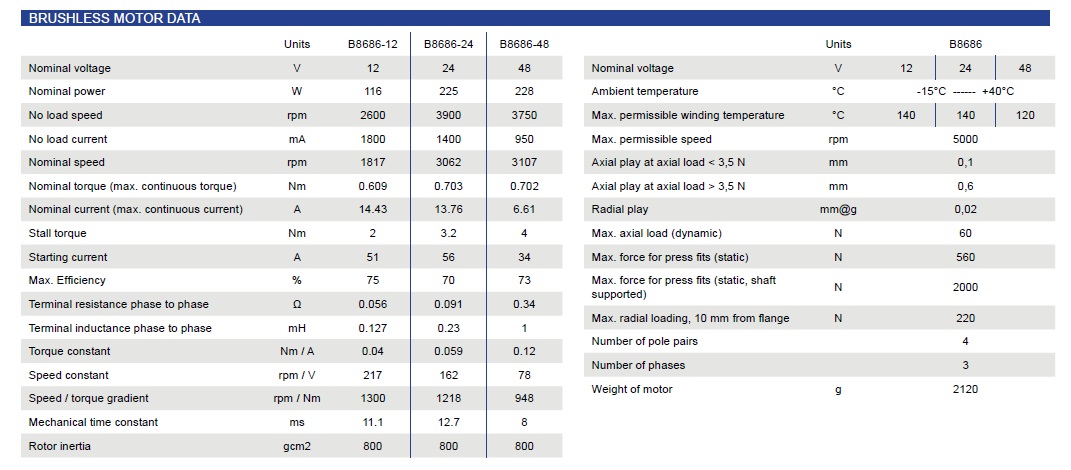

  • Nominal Voltage (V): 12, 24, 48
  • Nominal Power (W): 116,225, 228
  • No Load Speed (rpm): 2600, 3900, 3750
  • No Load Current (mA): 1800, 1400, 950
  • Nominal Speed (rpm): 1817, 3062, 3107
  • Nominal Torque (mNm): 609, 703, 702
  • Nominal Current (A): 14.43, 13.76, 6.61
  • Stall Torque (mNm): 2000, 3200, 4000
  • Max. Efficiency (%): 75, 70, 73
  • Weight (g): 2120

DC Motor (Brushless) Catalog
