BR5743 Series

Transmotec Brushless DC Motors cover a large range of miniature sized motors to heavy duty models. The designs include both round and square shaped motor bodies. All motors include hall-effect sensors for phase shift commutation. Standard motors are kept in stock for quick delivery and customized motors are offered upon request.

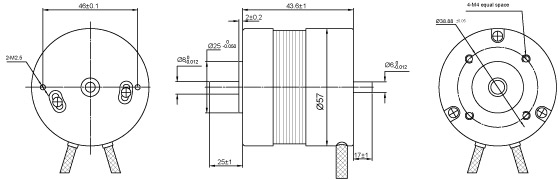

Customizations and configurations typically include: various winding's, cables, connections, shaft outputs, gear heads, encoders etc… CAD drawings and additional information on motors are available on our web site. For further information and requests, you are welcome to contact our professional sales and engineering staff.

Features:

• Large range of miniature motors to heavy duty models
• Round and square shaped motor bodies
• Integral hall-effect sensors
• Quick delivery from stock
• Customizable

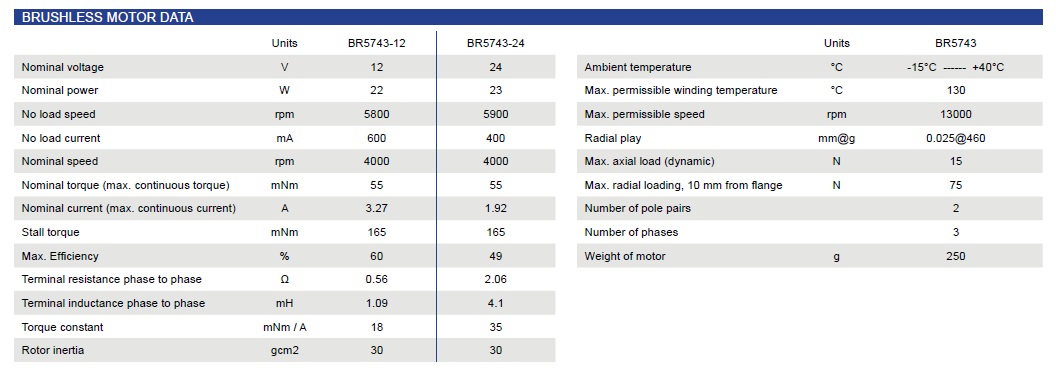

BR5743-12:

• Nominal Voltage (V): 12
• Nominal Power (W): 22
• No Load Speed (rpm): 5800
• No Load Current (mA): 600
• Nominal Torque (mNm): 55
• Nominal Current (A): 3.27
• Stall Torque (mNm): 165
• Max. Efficiency (%): 60
• Max. Axial Load (N): 15
• Max. Radial Loading, 10 mm from Flange (N): 75
• Weight (g): 250

BR5743-24:

• Nominal Voltage (V): 24
• Nominal Power (W): 23
• No Load Speed (rpm): 5900
• No Load Current (mA): 400
• Nominal Torque (mNm): 55
• Nominal Current (A): 1.92
• Stall Torque (mNm): 165
• Max. Efficiency (%): 49
• Max. Axial Load (N): 15
• Max. Radial Loading, 10 mm from Flange (N):75
• Weight (g): 250
