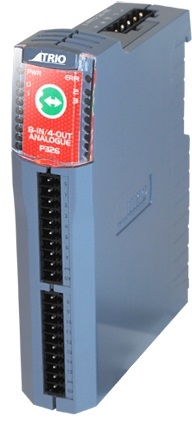

Trio Motion Technology: CAN 8in/4out Analogue I/O Module (P326)

The CAN Analogue I/O module offers a compact DIN rail mounted analogue input/output capability for Trio Motion Coordinators. Each module provides 8 channels of 12-bit (+/-10V) analogue inputs and 4 channels of 12-bit (+/-10V) analogue outputs.

Up to 4 modules may be connected to the CAN link which may be up to 100m long, considerably reducing machine wiring.

Specifications:

  • Inputs: 8 +/- 10 Volt inputs with isolation from CANbus

  • Outputs: 4 x +/- 10 Volt outputs with isolation from CANbus

  • Protection: Inputs are protected against over voltage up to 24V d.c.

  • Indicators: Individual status LED's

  • Address Setting: Via DIP switches

  • Power Supply: 24V / 1.5W

  • Mounting: DIN rail mount

  • Size: 26mm wide x 85mm deep x 130 mm high

  • Weight: 168g

  • CAN: 500kHz, Up to 256 expansion output channels

  • EMC: EN61000-6-2 (2005) Industrial Noise Immunity/ EN61000-6-4 (2007) Industrial Noise Emissions.

  • CAN protocol: Trio CANI/O or CANopen DS401

  • RoHs: Compliant
