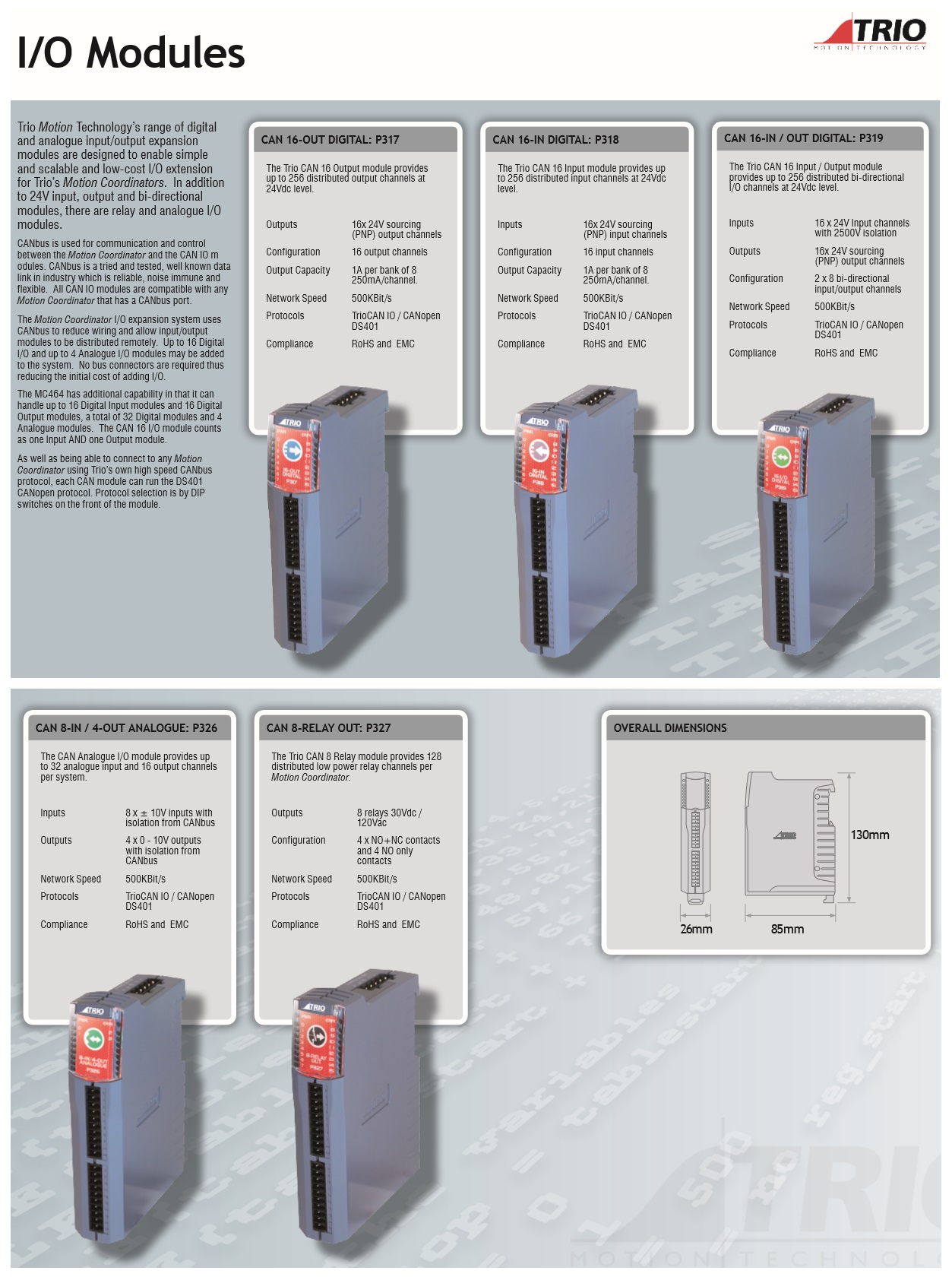

Description Specifications and Drawings

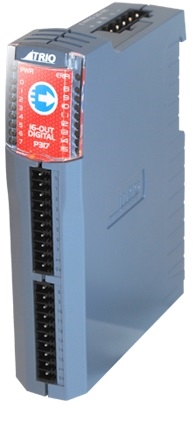

Trio Motion Technology: CAN16 I/O Module (P317)

The Trio CAN16 Output module offers a compact DIN rail mounted output expansion capability for all Trio Motion Coordinators. Up to 16 P317 modules may be connected to the CAN network which may be up to 100m long.

This provides 256 distributed output channels at 24Vdc level. All points are short-circuit proof and completely isolated from the CANbus. P317 modules may be mixed on the same bus, with other types in the Trio CAN I/O range.

The Trio CANbus I/O expansion can considerably reduce machine wiring.

Specifications:

  • Outputs: 16 24 Volt output channels with 2500V isolation

  • Configuration: 16 output channels

  • Output Capacity: Outputs are rated at 250mA/channel. (1 Amp total / bank of 8 outputs)

  • Protection: Outputs are overcurrent and over temperature rated

  • Indicators: Individual status LED's

  • Address Setting: Via DIP switches

  • Power Supply: 24V / 1.5W

  • Mounting: DIN rail mount

  • Size: 26mm wide x 85mm deep x 130 mm high

  • Weight: 168g

  • CAN: 500kHz, Up to 256 expansion output channels

  • EMC: EN61000-6-2 (2005) Industrial Noise Immunity/ EN61000-6-4 (2007) Industrial Noise Emissions.

  • CAN protocol: Trio CANI/O or CANopen DS401

  • RoHs: Compliant
