Delta: AC Motor Drives (VFD-B Series)
With modern power electronics and advanced microprocessor technology, Delta's AC Motor Drives are able to efficiently control motor speed, improve machine automation and save energy. Taking advantage of our strong position in power electronics technology, Delta's VFD Series of AC motor Drives has evolved rapidly. Each Drive series is designed to meet specific application needs. Our AC Drives accurately control speed and torque, smoothly handle an increased load, and provide numerous custom control and configuration operating modes. Our AC Motor Drive product line provides a full range of motor control technologies and is used throughout a wide range of industries, to enhance and improve machine automation.

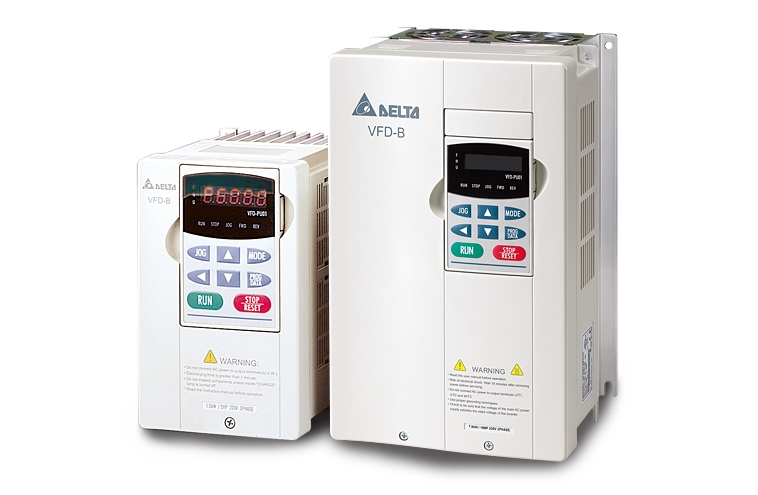

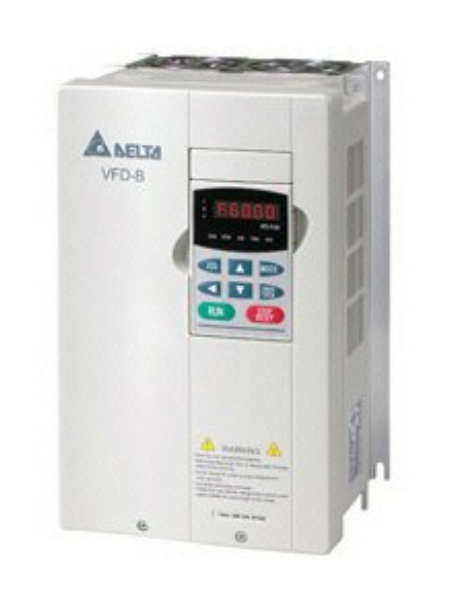

VFD-B Series
Sensorless Open and Closed Loop Vector AC Drive. The VFD-B series represents Delta's NEMA1 general purpose AC drive. The VFD-B series drive is rated to provide constant torque, featuring open and closed loop vector control. Delta offers an optional 2000 Hz high speed output that can be factory programmed at the customer's request.
Specifications:
Output frequency 0.1~400 Hz
Adjustable V/f curve and vector control
Master/Auxiliary and 1st / 2nd frequency source selectable
16-step speed control and 15-step preset speed process control
Built-in PID feedback control
Auto torque boost & slip compensation
Built-in MODBUS communication, baud rate up to 38400 bps
Support communication module (DN-02, LN-01, PD-01)
Applications:
Air conditioners for large buildings
Wood carving machine
Punching machine
Wastewater treatment systems
Crane drive and swivel
Washing machine
Vertical stamping machines
Compressor
Elevator
Escalator
Circular loom
Flat knitting machine
Pasta machine
Four-sided woodworking planer
