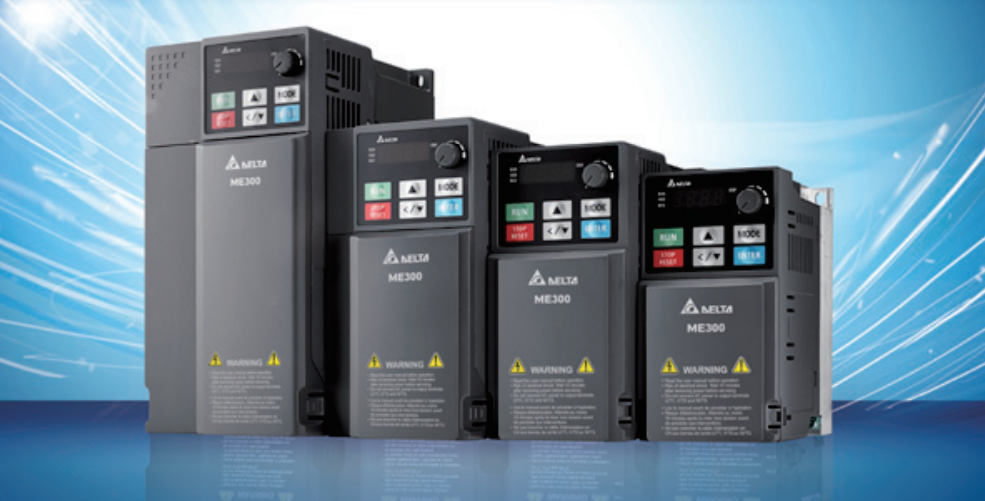

Delta: Compact and Intelligent AC Motor Drives (ME300 Series)

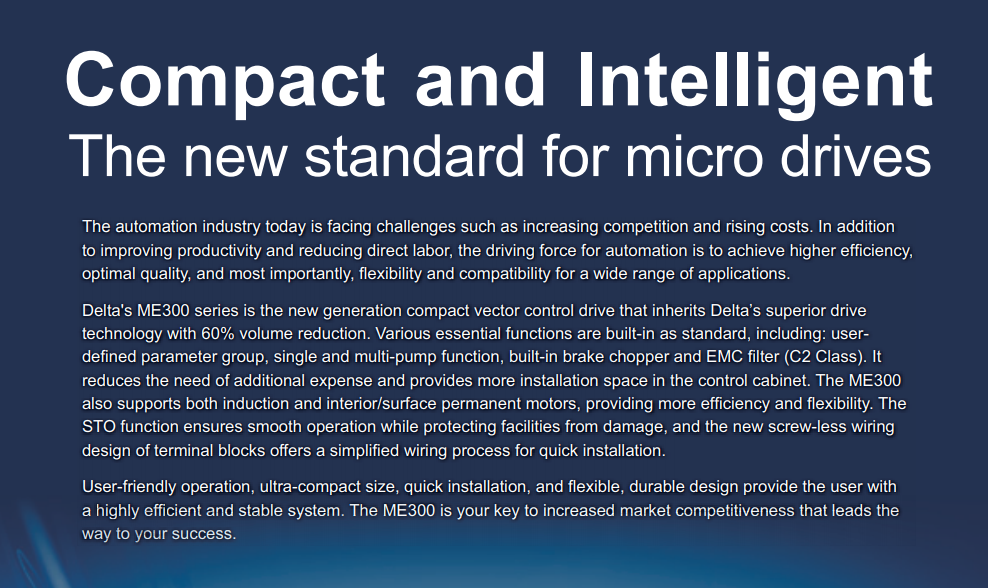

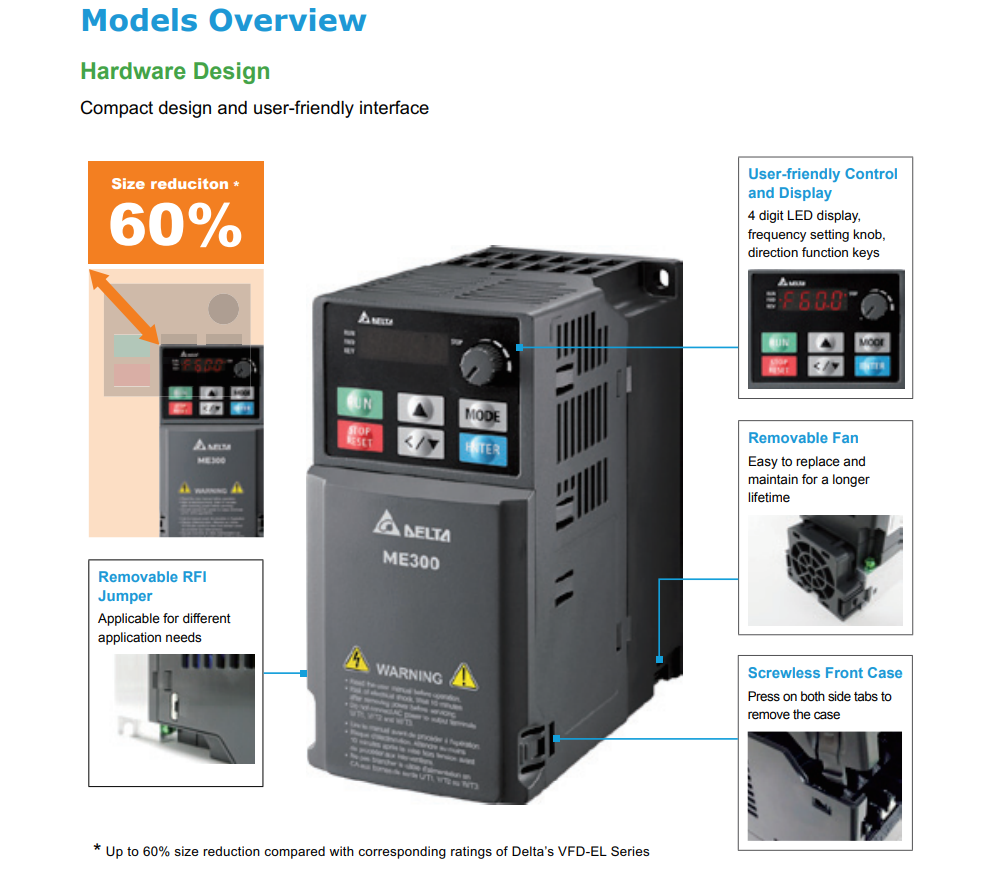

Delta's ME300 series is the new generation compact vector control drive that inherits Delta’s superior drive technology with 60 Volume reduction. Various essential functions are built-in as standard, including: user-defined parameter group, single and multi-pump function, built-in brake chopper and EMC filter (C2 Class). It reduces the need of additional expense and provides more installation space in the control cabinet.

ME300 Series

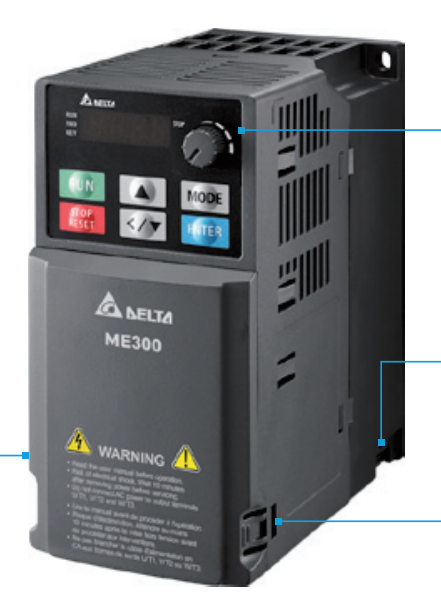

The Delta ME300 series supports both induction and interior/ surface permanent motors, providing more efficiency and flexibility. The STO function ensures smooth operation while protecting facilities from damage, and the new screw-less wiring design of terminal blocks offers a simplified wiring process for quick installation.
User-friendly operation, ultra-compact size, quick installation, and flexible, durable design provide the user with a highly efficient and stable system. The ME300 is your key to increased market competitiveness that leads the way to your success.

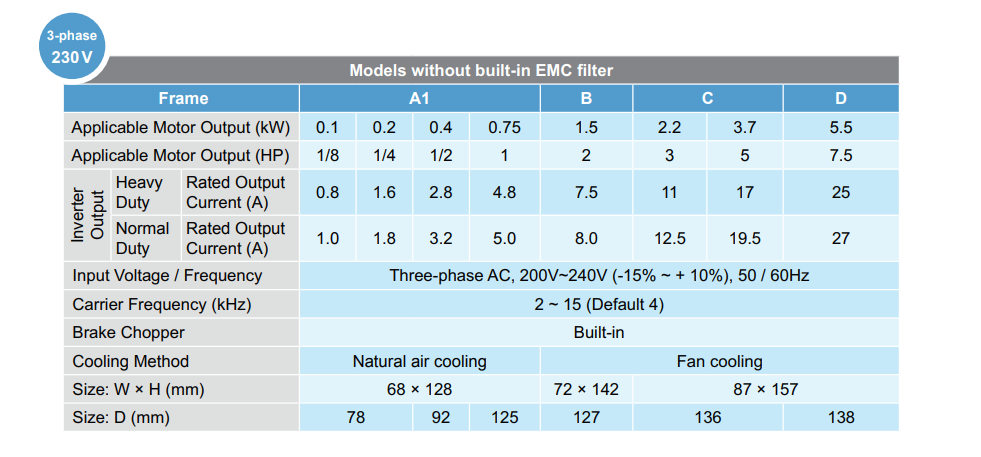

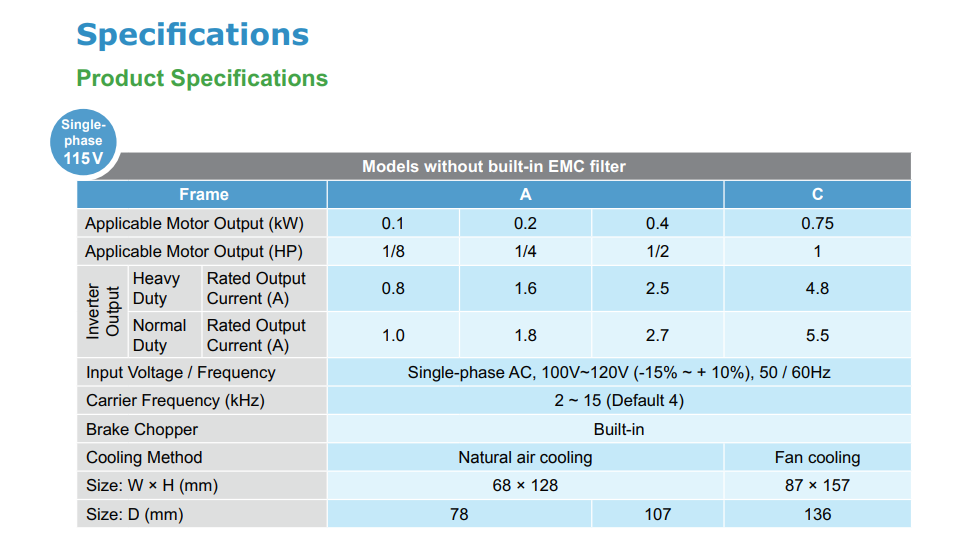

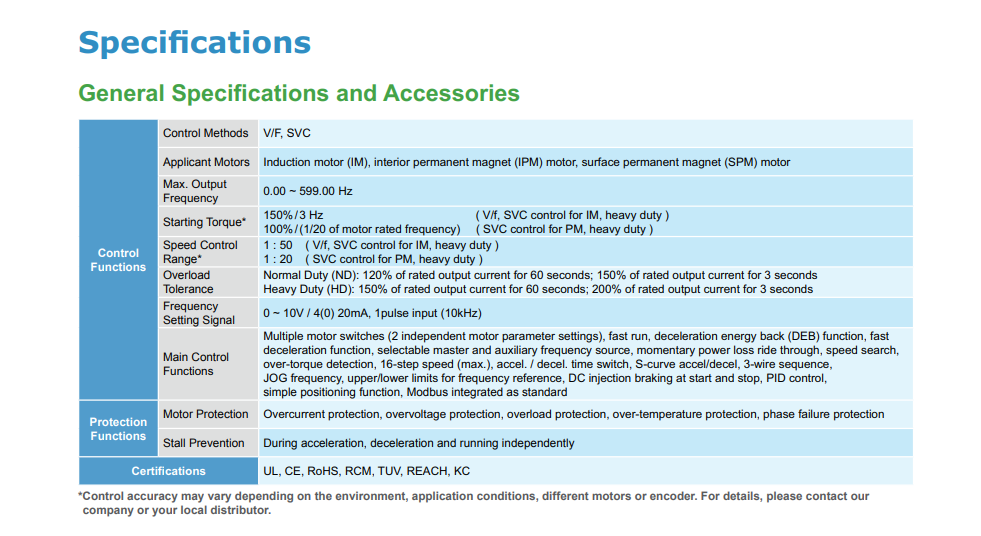

Specifications:

• Supports IM / IPM /SPM motors and VF / SVC control
• Dual rating design:
• -Normal Duty (ND), 120% for 60 seconds or 150% for 3 seconds
• -Heavy Duty (HD), 150% for 60 seconds or 200% for 3 seconds
• Up to 200% rated starting torque at 0.5 Hz
• 2 set of motor parameter for multi-motor control
• Supports high speed pulse and PWM signal input
• Built-in single /multi-pump function
• Built-in braking choppers for the entire series

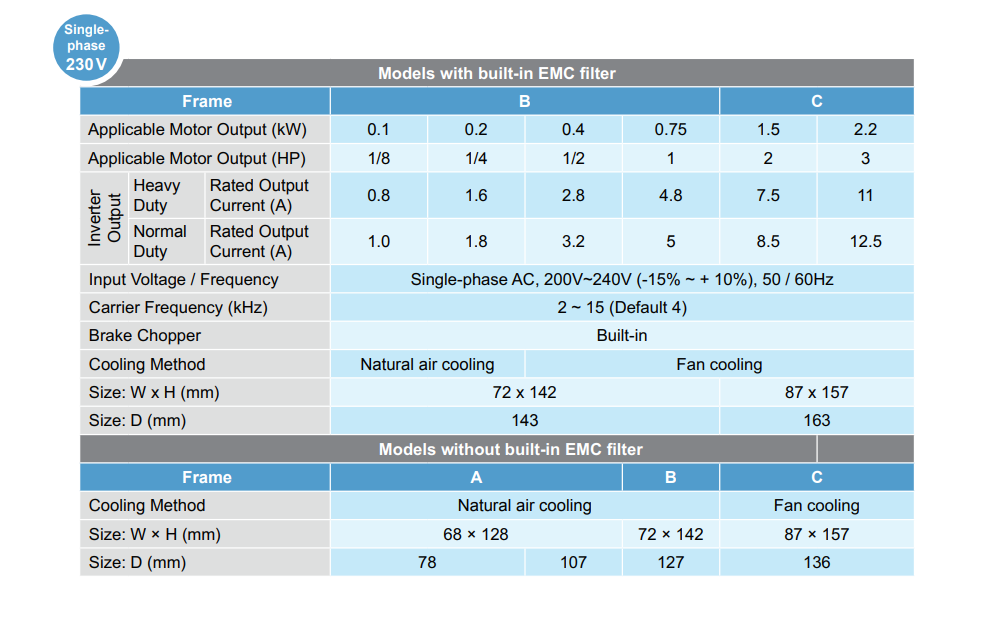

• Optional EMC filter for 1-phase 230V(C2), 3-phase 460V(C3) models
• Optional Safe Torque Off (SIL2/PLd) model
• 100% PCB coating for circuit(IEC 60721-3-3 class 3C3) for harsh environment

Applications:

• Fans & pumps
• conveyors
• blowing machines
• Packaging machines
• wood working machines
