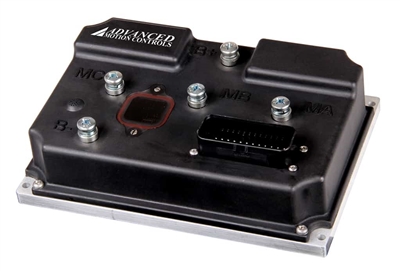

DigiFlex® Performance™ Vehicle Mount CANopen Servo Drive DVC200A100

The DVC200A100 digital servo drive is designed to drive brushed and brushless servomotors, stepper Motors, and AC induction motors from a compact form factor ideal for embedded applications. This fully digital drive operates in torque, velocity, or position mode and employs Space Vector Modulation (SVM), which results in higher bus voltage utilization and reduced heat dissipation compared to traditional PWM. The drive can be configured for a variety of external command signals. Commands can also be configured using the drive’s built-in Motion Engine, an internal motion controller used with distributed motion applications. In addition to motor control, this drive features dedicated and programmable digital and analog inputs and outputs to enhance interfacing with external controllers and devices.

Network communication is accomplished using either RS-485/232 or Modbus RTU. This DZR Series drive features a single serial interface used for drive commissioning via DriveWare® 7,

The DVC200A100 DigiFlex® Performance™ vehicle mount servo drive offers full tuning control of all servo loops and is designed to operate electric vehicular platforms. This motor driver utilizes CANopen® communication and is commissioned with DriveWare® via a USB interface.

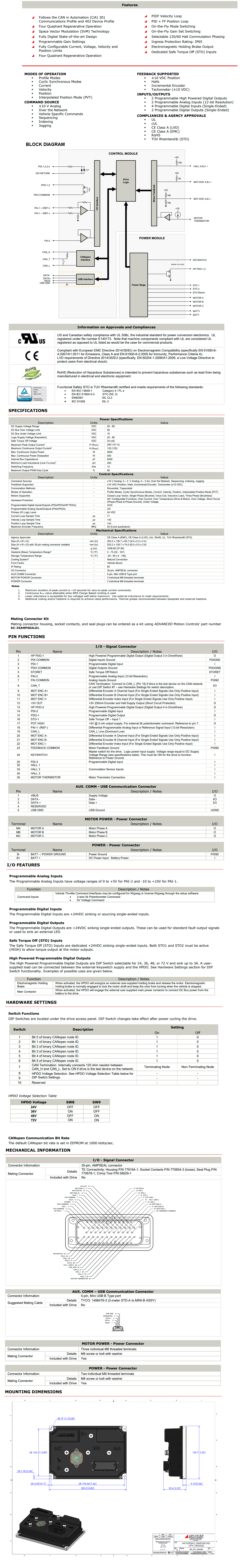

Specifications:

Downloads:
Datasheet_DVC200A100.pdf
CANopen Communication Manual (DP)
DP Vehicle Mount (CANopen) HW Installation Manual

Software Downloads:
SW_Manual_DriveWare.pdf
SW_QuickRef_DriveWare.pdf

Instructional Videos:
DriveWare® 7 Overview
DriveWare® 7 AutoCommutatio
