Velocio: Embedded PLCs (eAce Series)
Alternate View
Price:
(Members Only)
Order #:
EACE
Options:

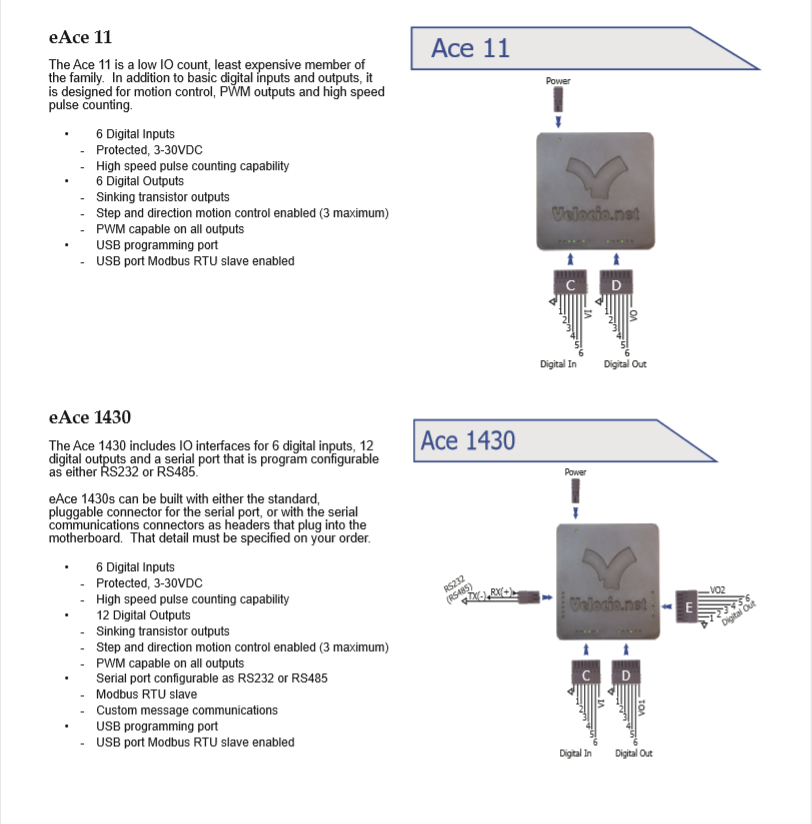

eAce 11
eAce 22 [Add (Members Only)]

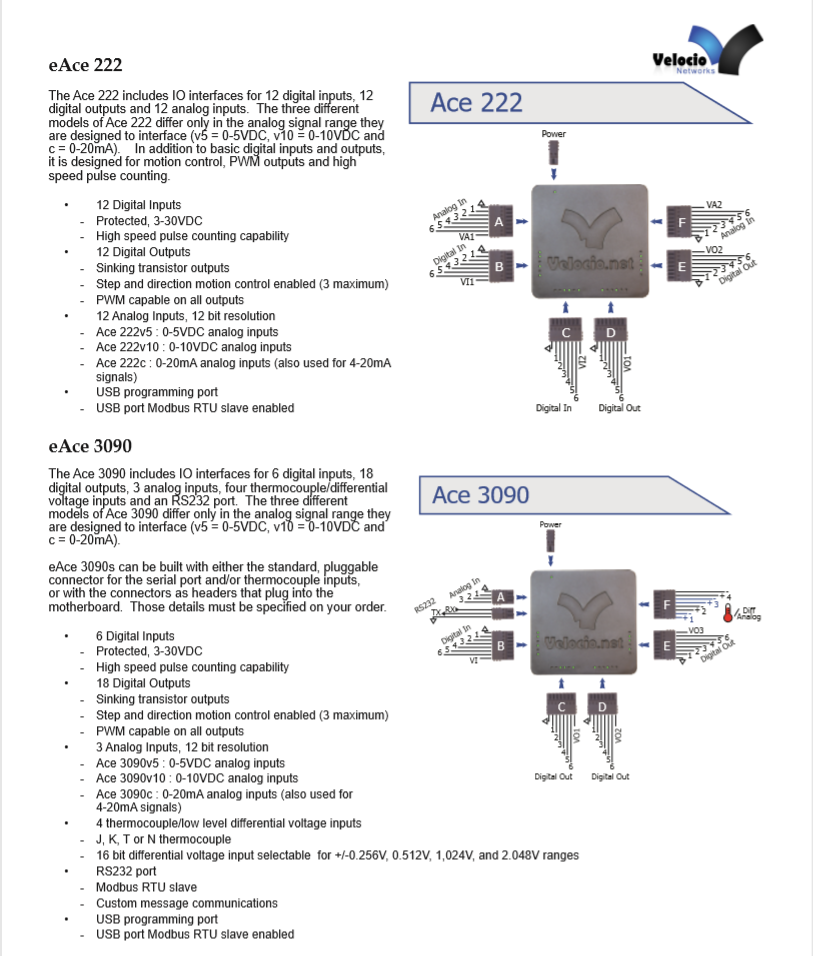

eAce 222c [Add (Members Only)]
eAce 222v10 [Add (Members Only)]
eAce 222v5 [Add (Members Only)]
eAce 3090c [Add (Members Only)]
eAce 3090v10 [Add (Members Only)]
eAce 3090v5 [Add (Members Only)]
Qty:
Description

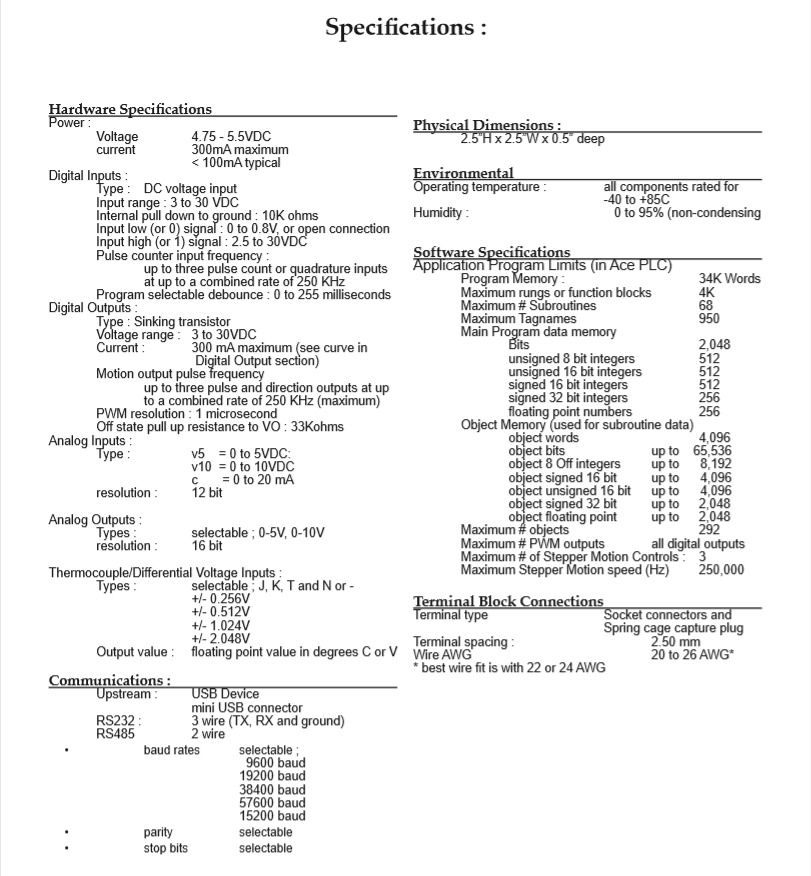

Specifications and Drawings

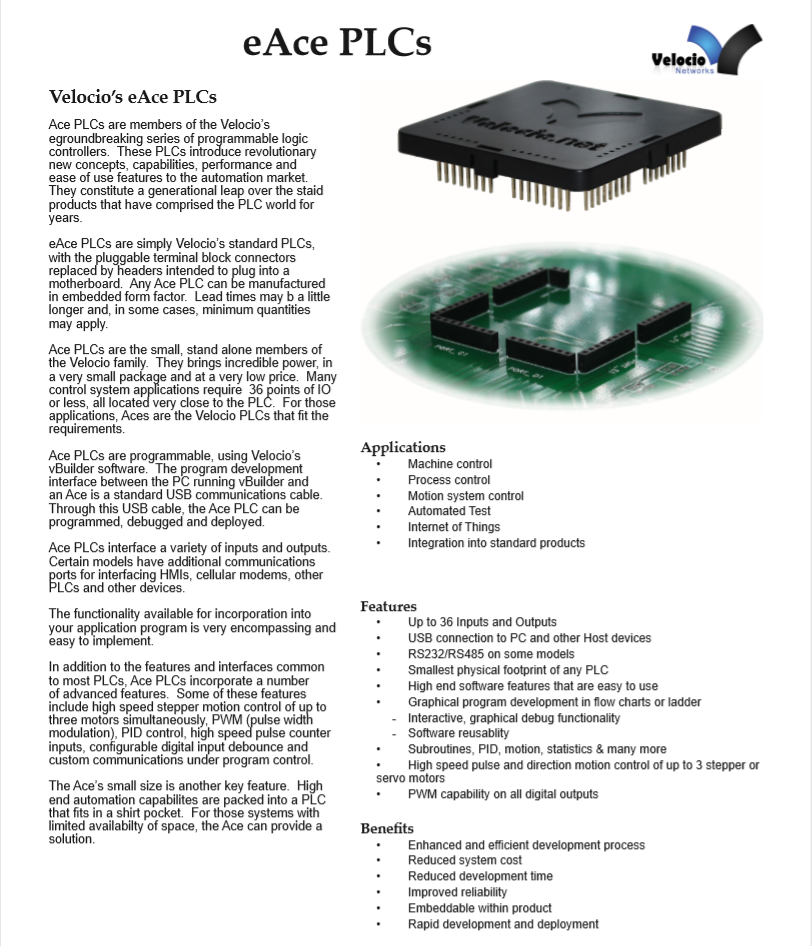

Velocio’s Embedded PLCs (eAce Series)
Ace PLCs are members of the Velocio’s groundbreaking series of programmable logic controllers. These PLCs introduce revolutionary new concepts, capabilities, performance and ease of use features to the automation market. They constitute a generational leap over the staid products that have comprised the PLC world for years.
Ace PLCs are the small, stand alone members of the Velocio family. They brings incredible power, in a very small package and at a very low price. Many control system applications require 36 points of IO or less, all located very close to the PLC. For those applications, Aces are the Velocio PLCs that fit the requirements.
Ace PLCs are programmable, using Velocio’s vBuilder software. The program development interface between the PC running vBuilder and an Ace is a standard USB communications cable. Through this USB cable, the Ace PLC can be programmed, debugged and deployed.

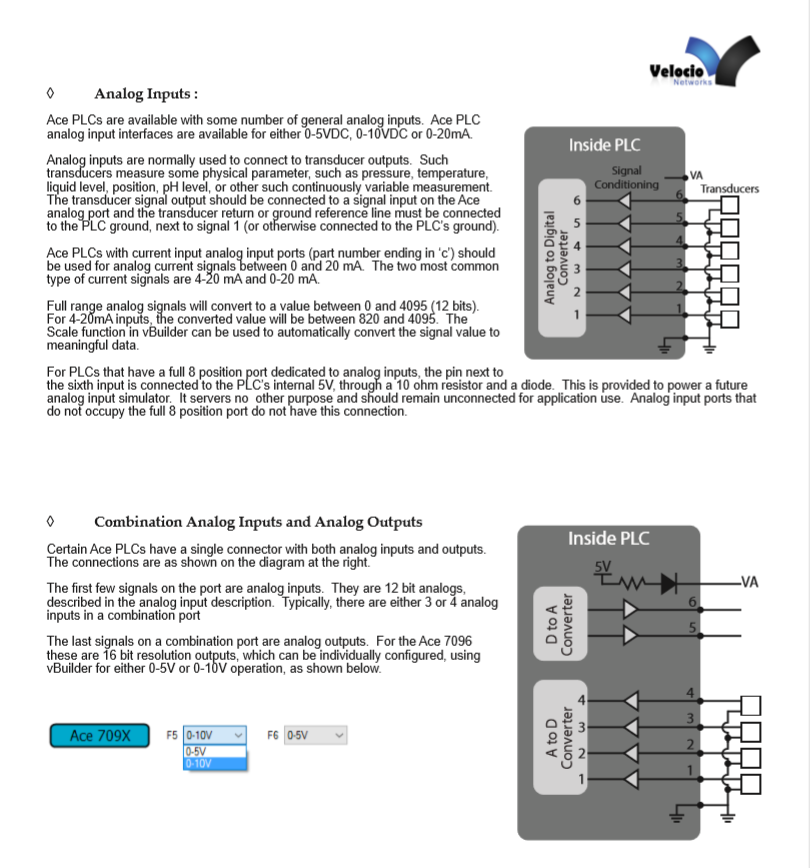

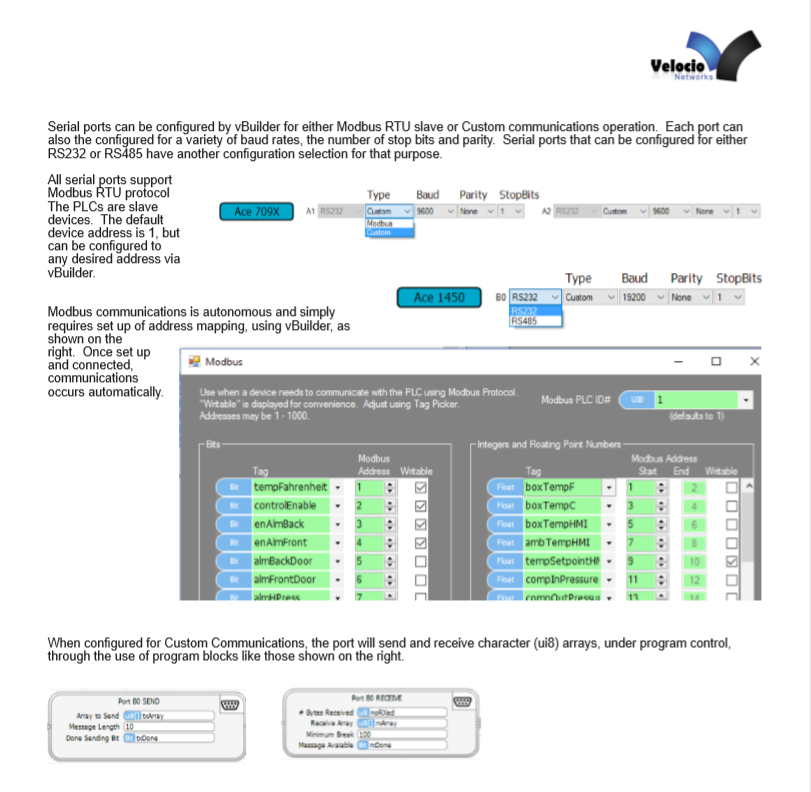

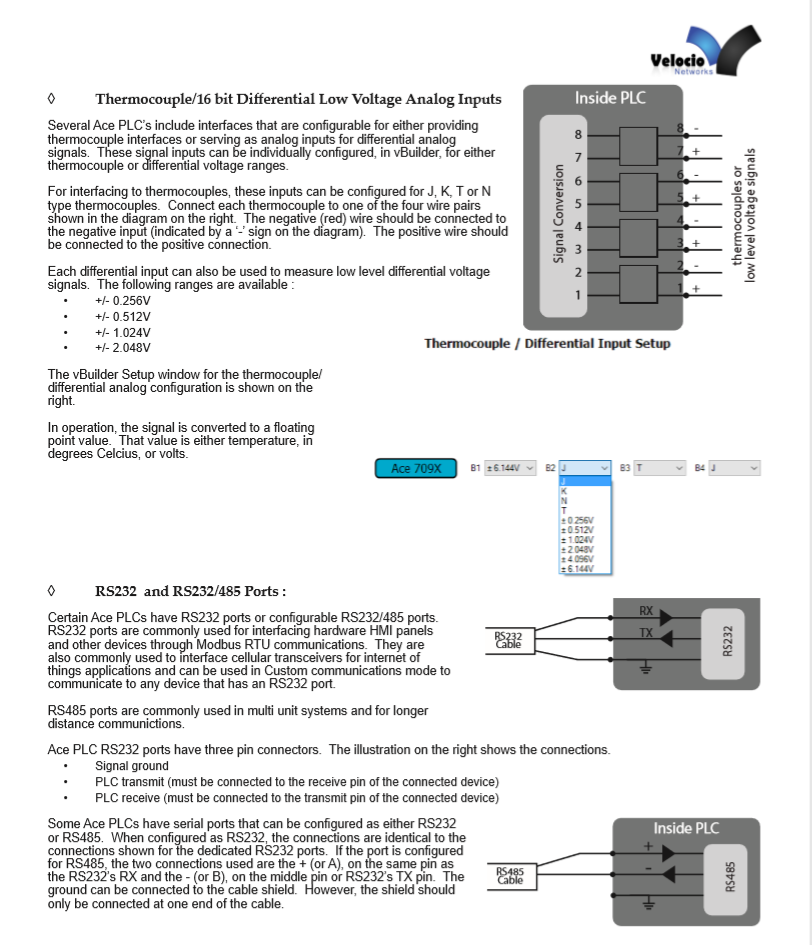

Ace PLCs interface a variety of inputs and outputs. Certain models have additional communications ports for interfacing HMIs, cellular modems, other PLCs and other devices.
The functionality available for incorporation into your application program is very encompassing and easy to implement.
In addition to the features and interfaces common to most PLCs, Ace PLCs incorporate a number of advanced features. Some of these features include high speed stepper motion control of up to three motors simultaneously, PWM (pulse width modulation), PID control, high speed pulse counter inputs, configurable digital input debounce and custom communications under program control.
The Ace’s small size is another key feature. High end automation capabilites are packed into a PLC that fits in a shirt pocket. For those systems with limited availabilty of space, the Ace can provide a solution.
Features
• Up to 36 Inputs and Outputs
• USB connection to PC and other Host devices
• RS232/RS485 on some models
• Smallest physical footprint of any PLC
• High end software features that are easy to use
• Graphical program development in flow charts or ladder
- Interactive, graphical debug functionality
- Software reusablity
• Subroutines, PID, motion, statistics & many more
• High speed pulse and direction motion control of up to 3 stepper or servo motors
• PWM capability on all digital outputs
Applications
• Machine control
• Process control
• Motion system control
• Automated Test
• Internet of Things
• Integration into standard products
