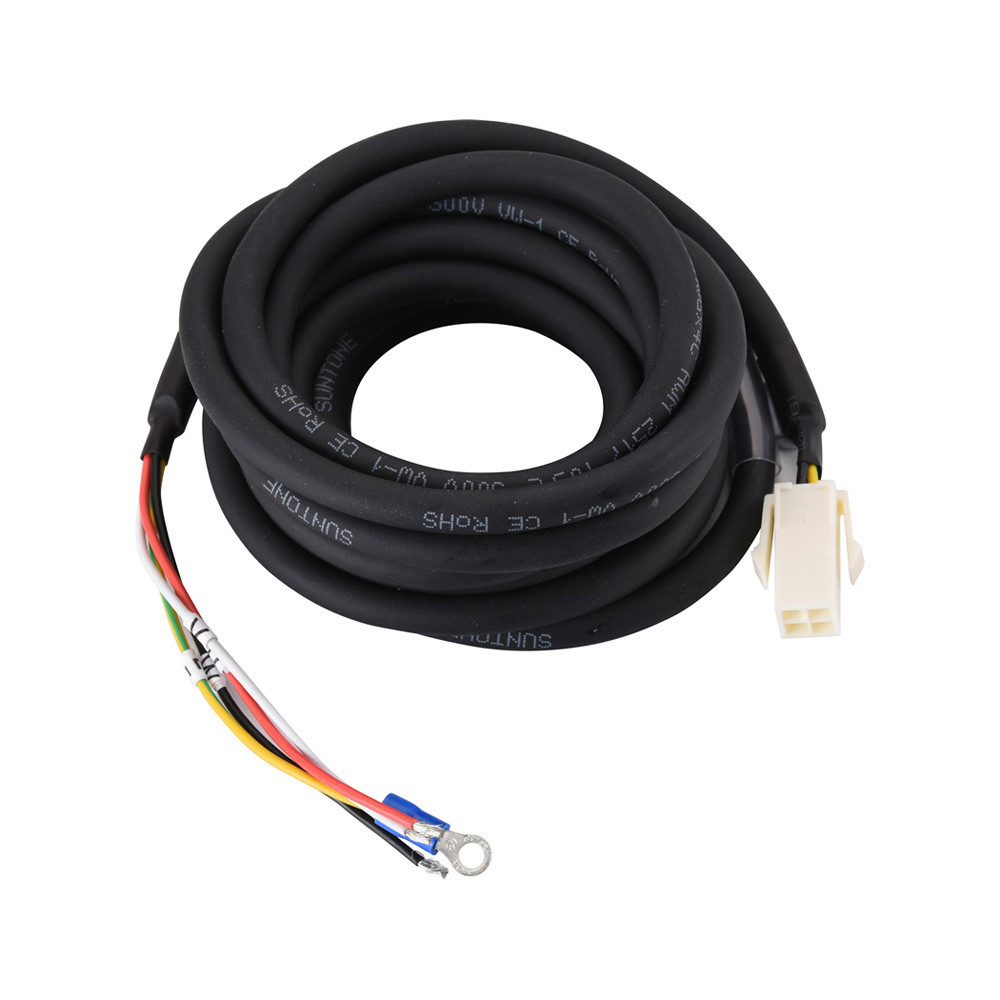

Supporting Accessory: Motor Power Cable

Model: JZSP-C7M33-03-E
List Price: $55.00
3m standard cable with connectors and with brake wires

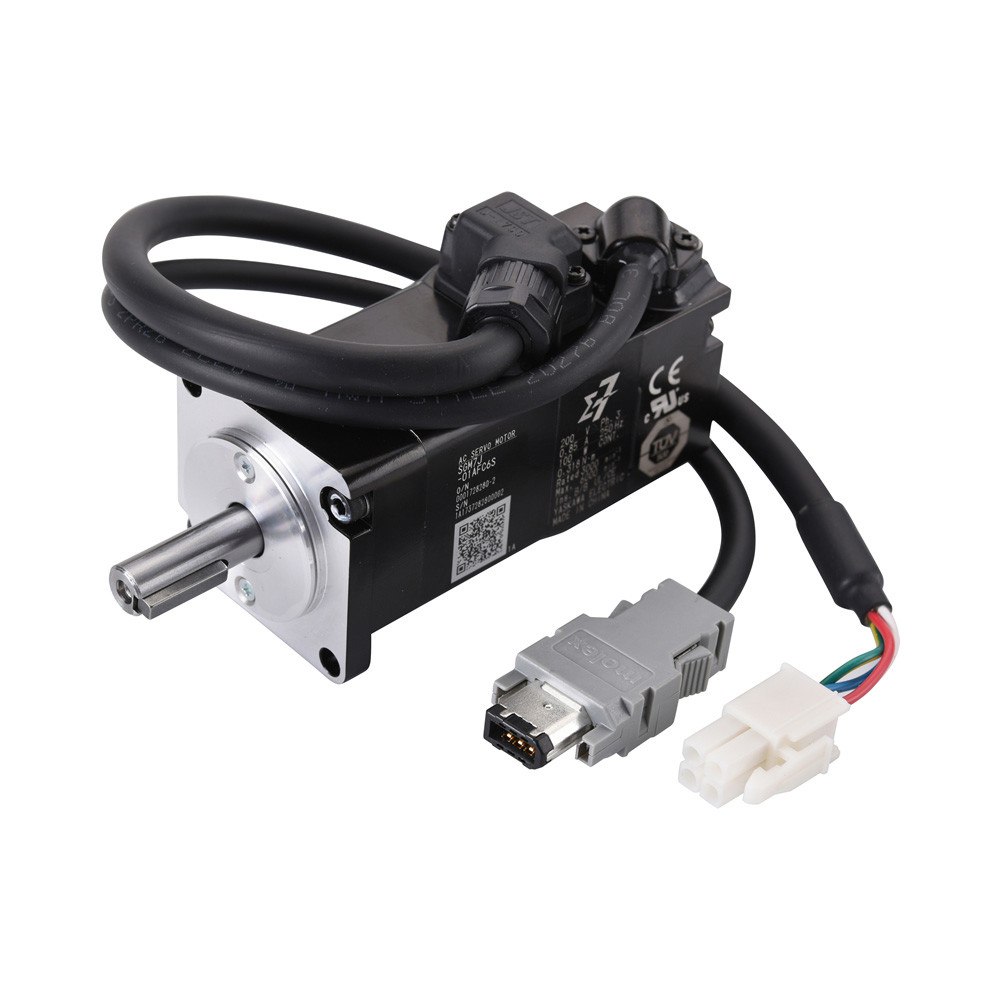

Model: SGM7J-01AFC6E
List Prices：$448.00

Type: Servo Motor

Phase: Three-phase

Output Power:100W

Protect Feature: Drip-proof

Frequency:50/60Hz

AC Voltage:200V

Efficiency: High efficiency

Rated Torque:0.318Nm
Rated Speed:3000rpm
Rated Current:0.85A
Holding Brake Voltage: DC 24V

Encoder:24-bit resolution

Certification:VDE,CCC,ROHS,UL,CE

Supporting drive

Model: SGD7S-R90A00A
List Price：$398.00

AC Voltage:200V

Output Power:100W

Analog Control with Advanced Features

A Yaskawa SGD7S SERVOPACK meets the need for an analog voltage or pulse train control interface, while also offering the advanced capabilities of a Sigma-7 servo amplifier. A frequency response of 3.1 kHz assures high-speed response and improved settling time. a tuning-less mode and improved autotuning features eliminate the need to manually tune a servo, both at installation and in ongoing everyday use.

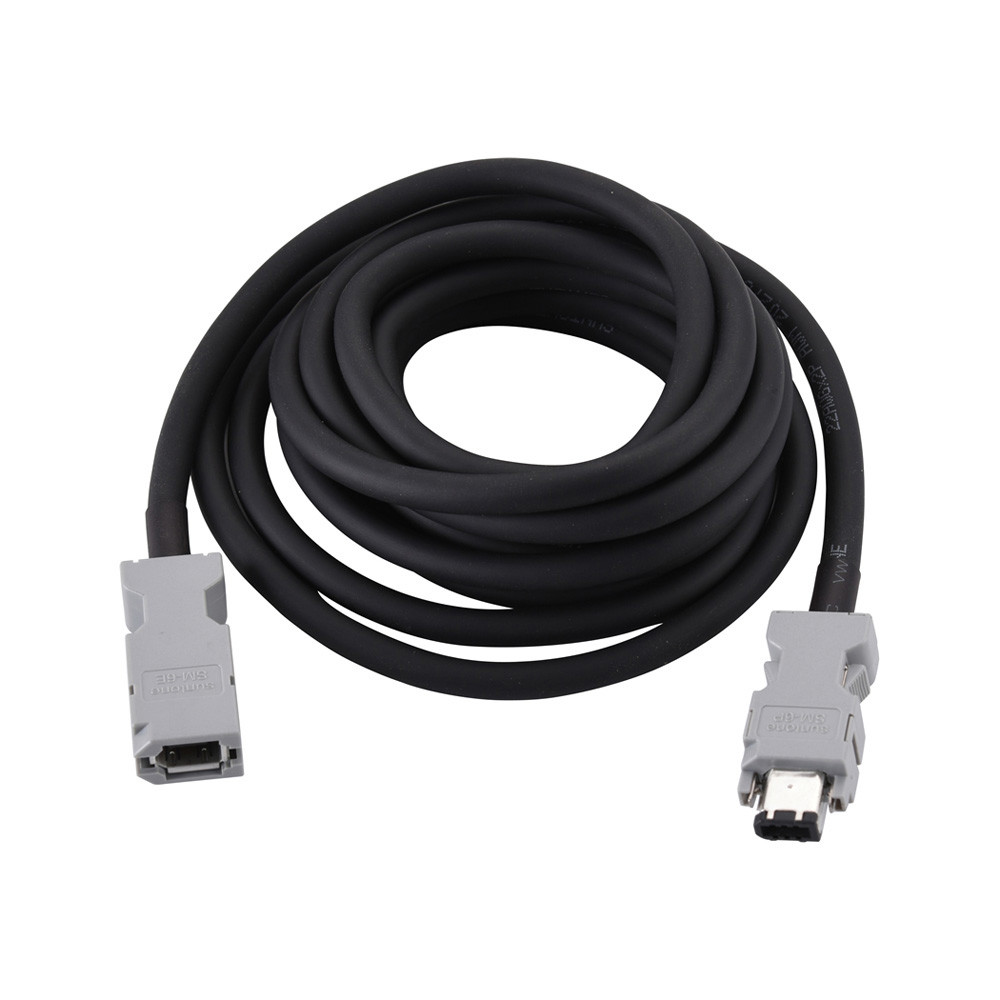

Supporting Accessory: Motor Encoder Cable

Model: JZSP-CMP00-03-E
List Price:$54.00

3 meters incremental encoder cable

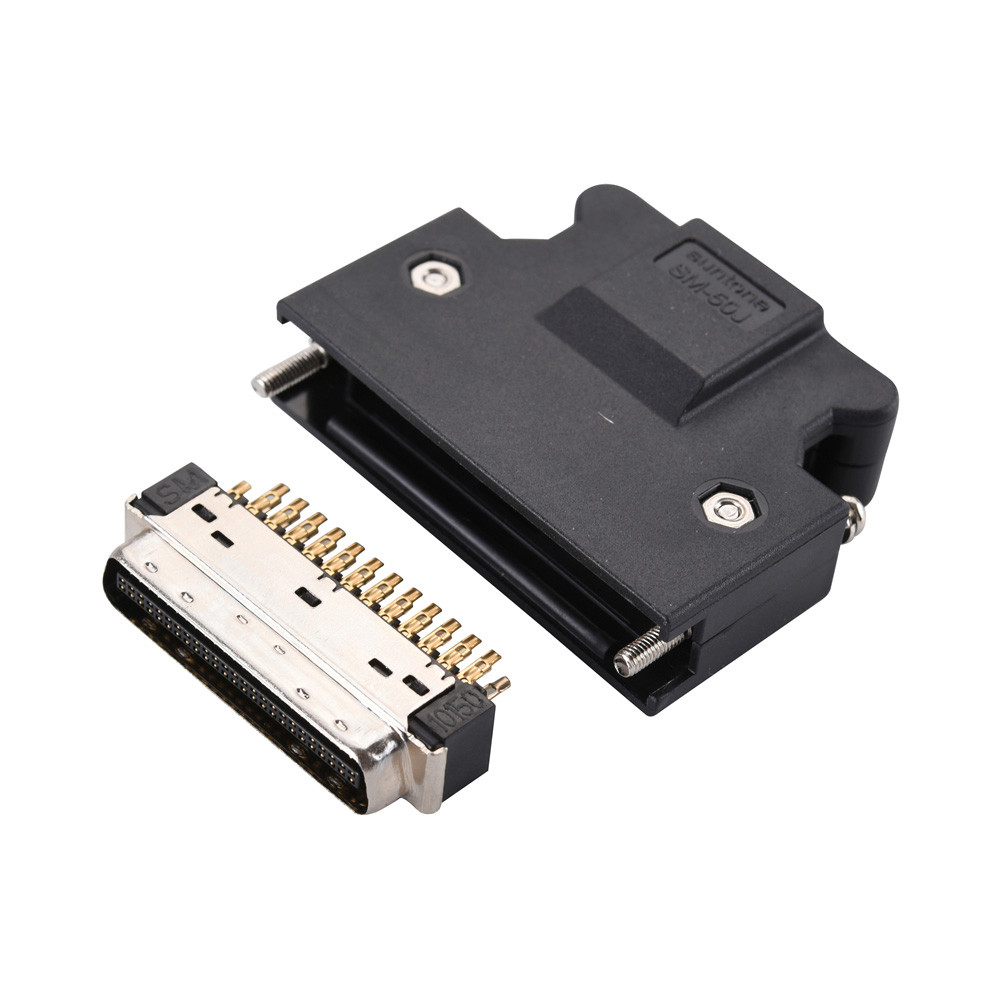

Supporting Accessory: I/O Signal Soldered Connector Kit

Model:LJZSP-CSI9-2-E
List Price:$26.00


I/O Signal Soldered Connector Kit
