Model: SGD7S-R90A00A
List Price：$398.00
AC Voltage:200V
Output Power:100W
Analog Control with
Advanced Features

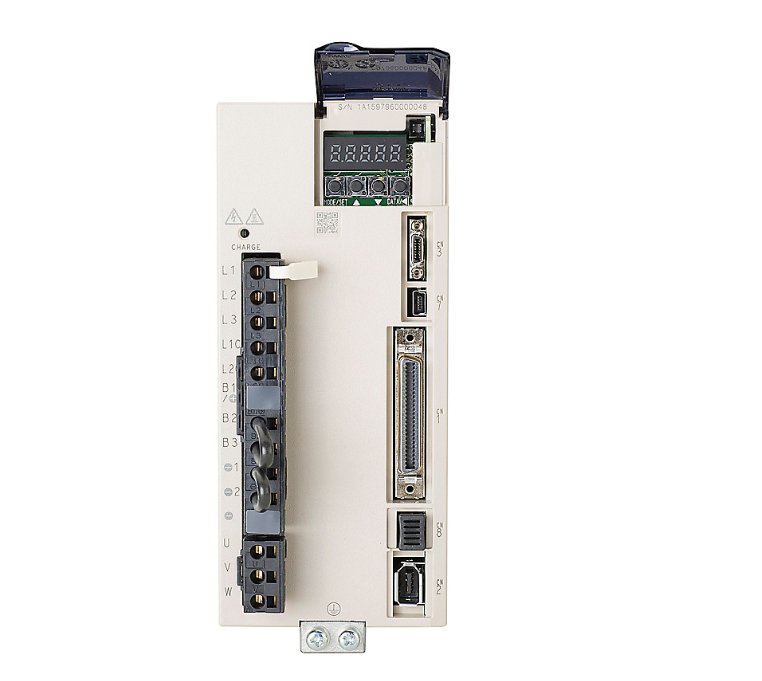

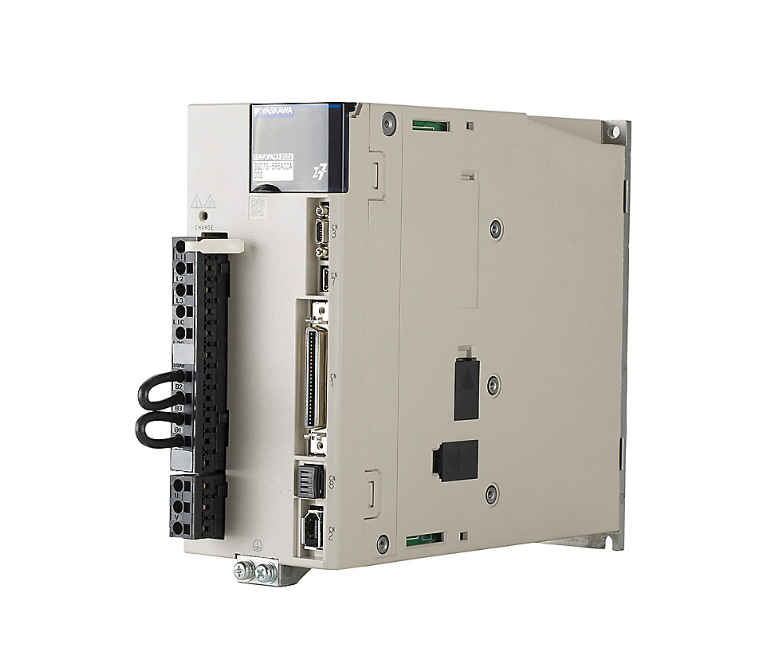

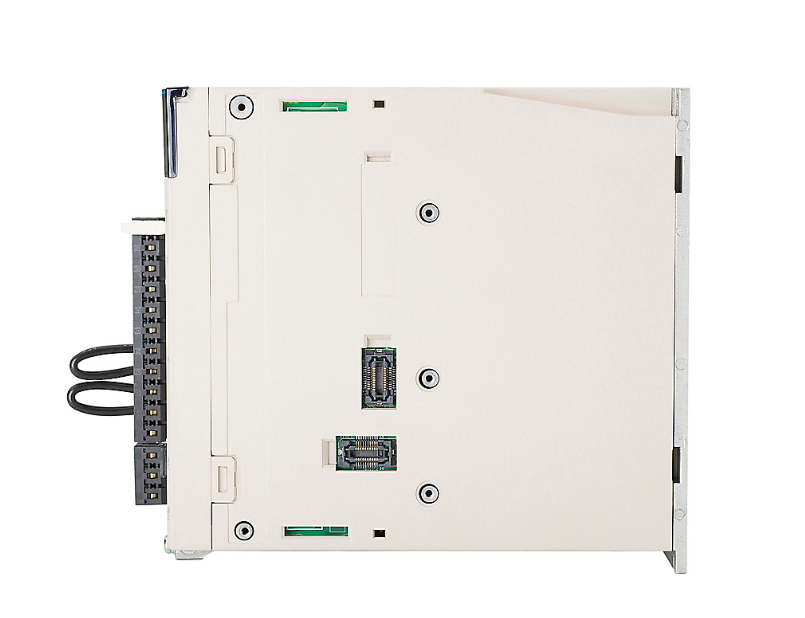

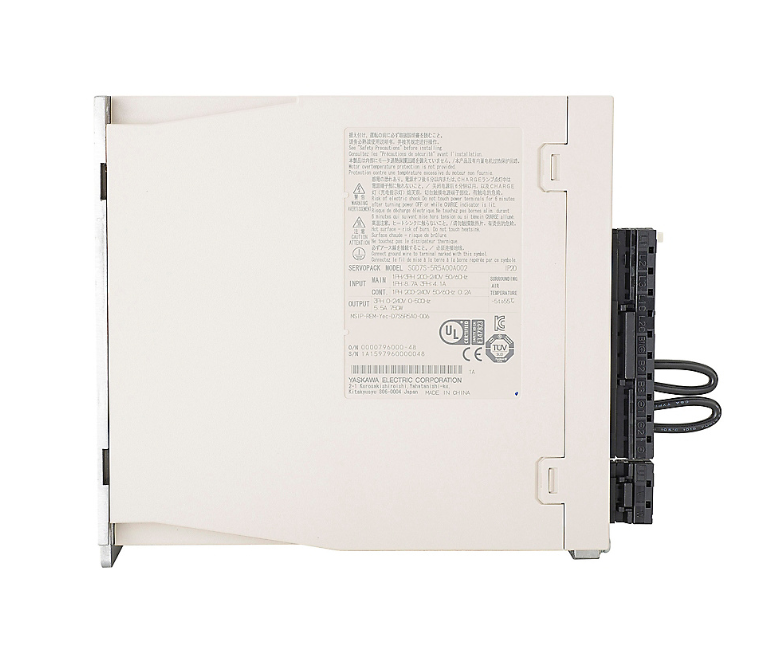

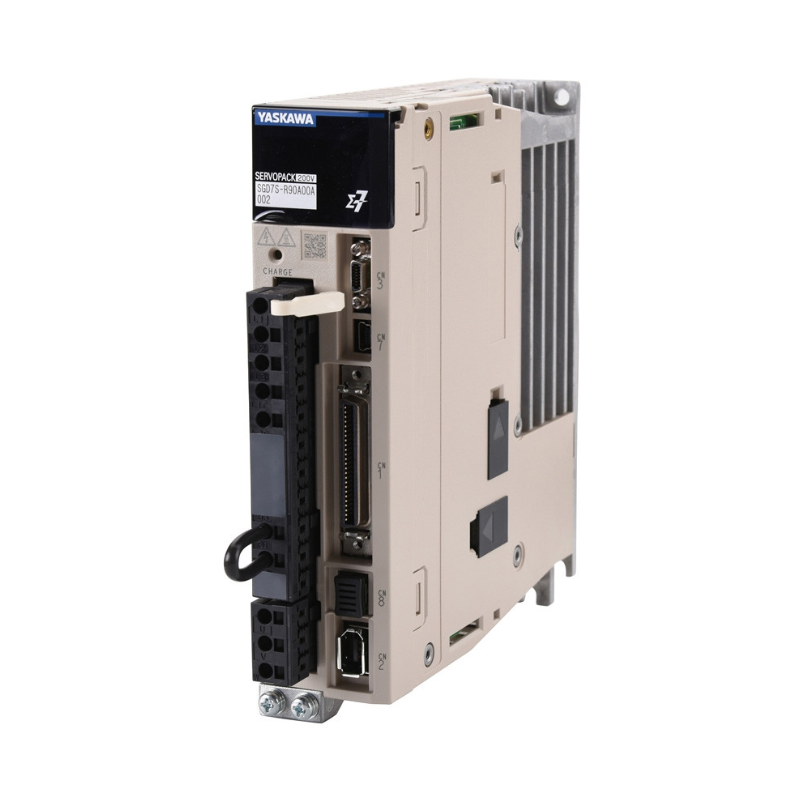

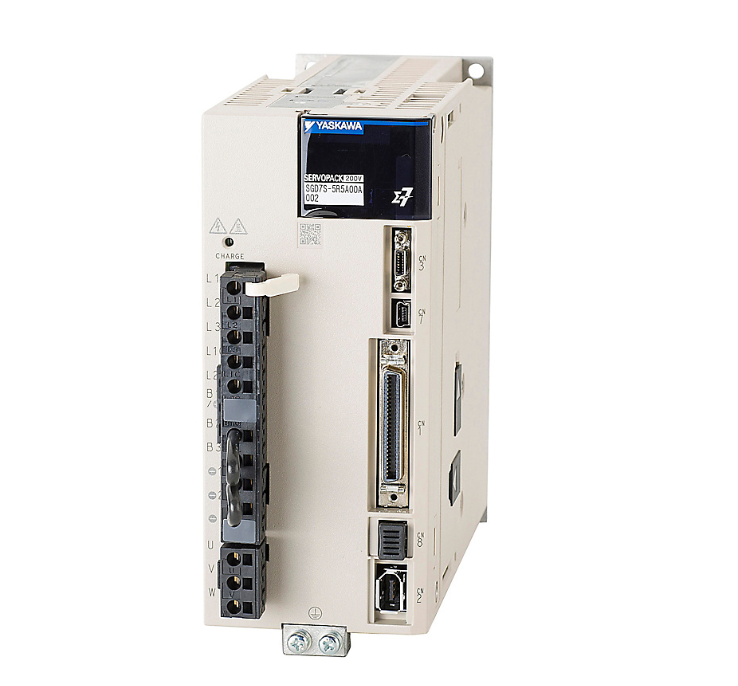

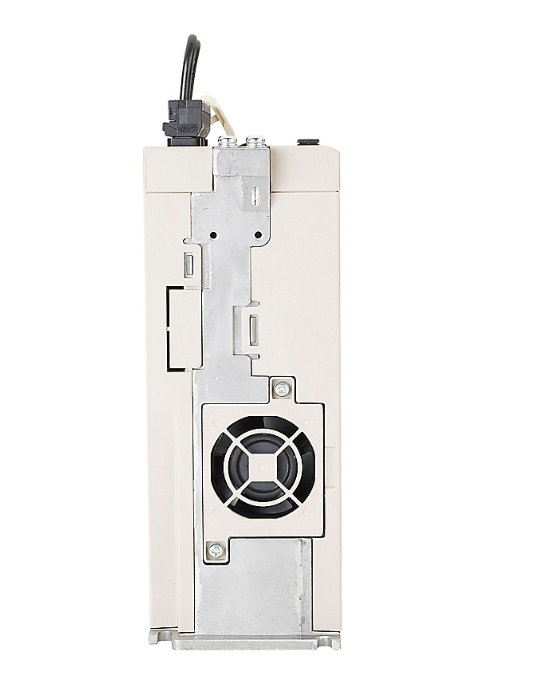

A Yaskawa SGD7S
SERVOPACK meets the need for an analog voltage or pulse train control
interface, while also offering the advanced capabilities of a Sigma-7 servo
amplifier. A frequency response of 3.1 kHz assures high-speed response and
improved settling time. a tuning-less mode and improved autotuning features
eliminate the need to manually tune a servo, both at installation and in
ongoing everyday use.
Supporting Motor
Model: SGM7J-01AFC6S
List Prices：$358.00
Type: Servo Motor
Phase: Three-phase
Output Power:100W
Protect Feature: Drip-proof
Frequency:50/60Hz
AC Voltage:200V
Efficiency: High efficiency
Rated Torque:0.318Nm
Rated Speed:3000rpm
Rated Current:0.85A
Encoder:24-bit resolution
Certification:VDE,CCC,ROHS,UL,CE
Supporting Accessory: Motor Power Cable
Model: JZSP-C7M03-03-E
List Price: $55.00
3m standard cable with connectors and without brake wires
Supporting Accessory: Motor Encoder Cable
Model: JZSP-CMP00-03-E
List Price: $54.00
3 meters incremental encoder cable
Supporting Accessory: I/O Signal Soldered Connector Kit
Model: LJZSP-CSI9-2-E
List Price: $26.00
I/O Signal Soldered Connector Kit
