Yaskawa: Servo System Digital Operator JUSP-OP03A
Yaskawa: Servo System Digital Operator JUSP-OP03A

Alternate View




Price: (Members Only)


Availability: 2 in Stock.
Order #: JUSP-OP03A
Qty:

Description Specifications and Drawings


Yaskawa: Servo System Digital Operator JUSP-OP03A

Features

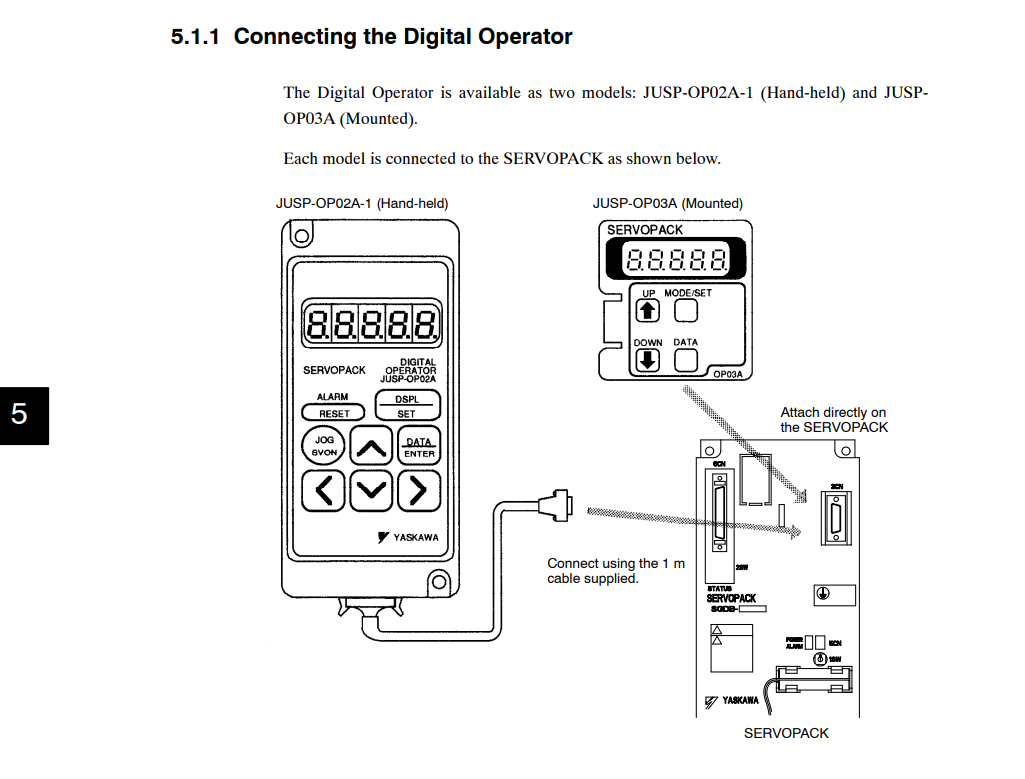

  • The Digital Operator is available as two models: JUSP-OP02A-1 (Hand-held) and JUSPOP03A (Mounted).

  • JUSPOP03A (Mounted) can be connected to the SERVOPACK.

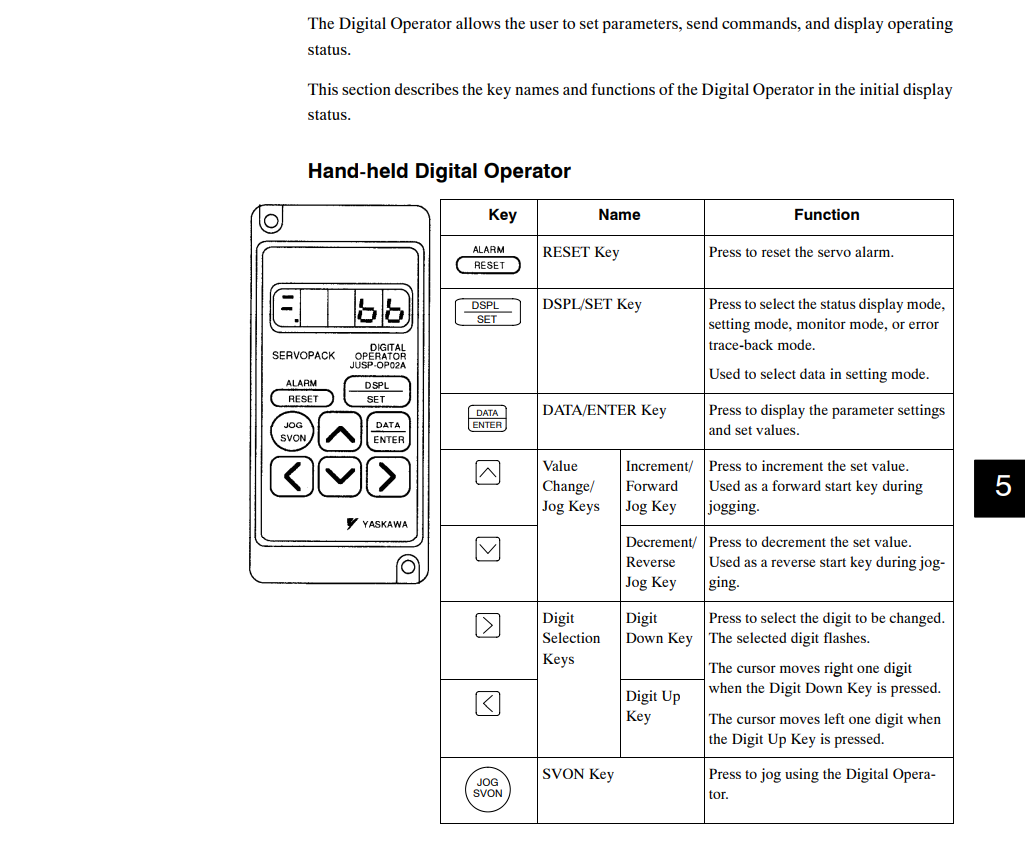

  • Servo alarms can be reset using the Digital Operator.

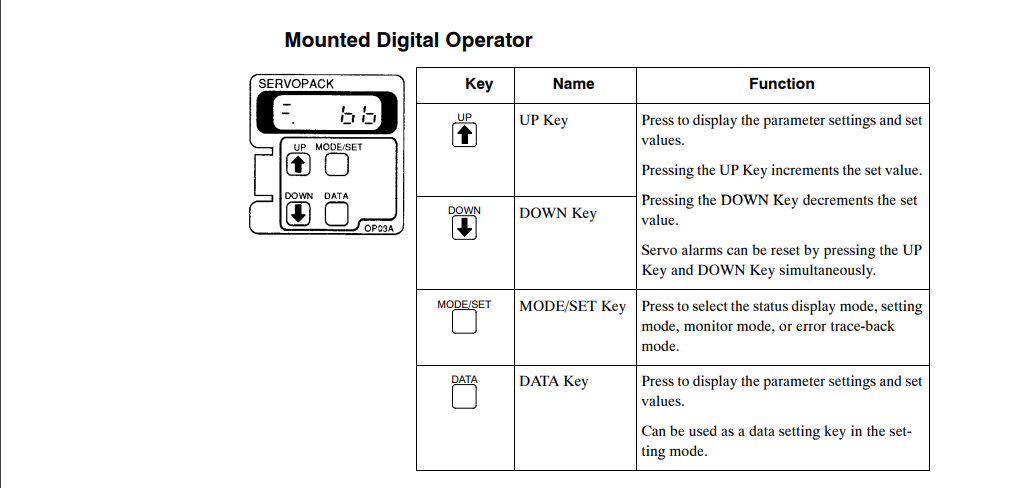

  • For Mounted Digital Operator, press the UP Key and DOWN Key simultaneously to reset.

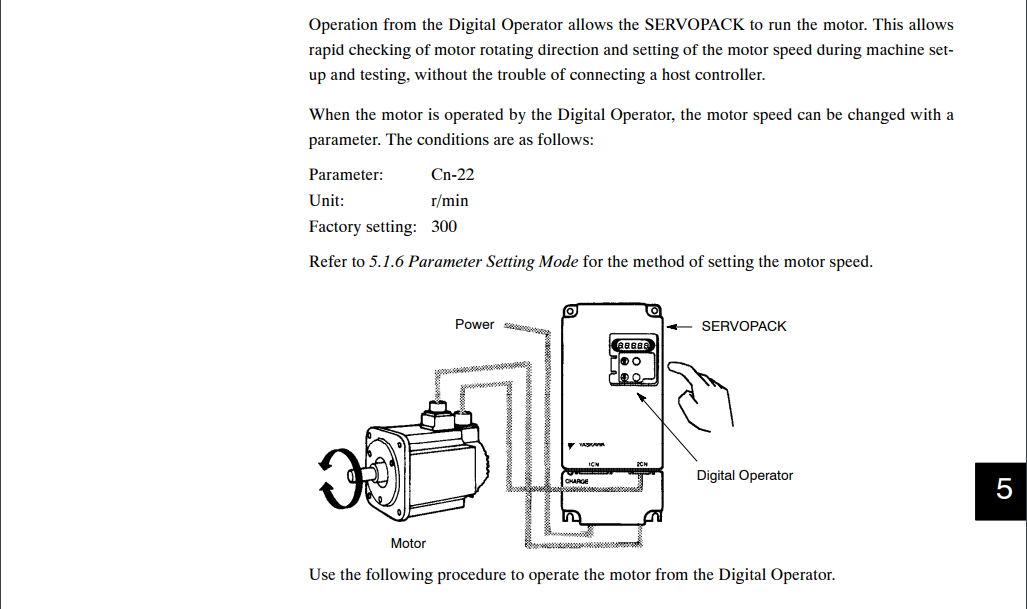

  • Digital Operator operation allows operation status display, parameter setting, operating command, and auto-tuning operations.

  • Press the MODE/SET Key to select the boundary table setting mode for mounted digital operator.

  • Press the UP Key or DOWN Key to select the monitor number to be displayed.
