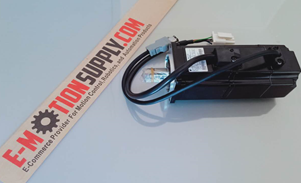

Yaskawa: Servomotor SGMAH-02AAA4C
Yaskawa: Servomotor SGMAH-02AAA4C

Alternate View


Price: (Members Only)


Availability: 4 in Stock.
Order #: SGMAH-02AAA4C
Qty:

Description Ordering Information Specifications and Drawings


Yaskawa: Servomotor SGMAH-02AAA4C

3,000 RPM to 5,000 RPM (Max Speed)


The SGMAH servomotor series is a legacy product and is no longer promoted in the Americas. It had a low-inertia design for extremely fast accelerations and short settling times. There were five frame sizes including NEMA 23 and NEMA 34 flanges providing up to 1,010 oz-in of peak torque.

Features

  • Time Rating: Continuous

  • Insulation: Class B

  • Vibration:15mm or less

  • Withstand Voltage: 1500VAC

  • Insulation Resistance: 10MW minimum at 500VDC

  • Enclosure: Totally-enclosed, self-cooled IP55 (except for shaft opening)

  • Ambient Temperature: 0 to 40ºC

  • Ambient Humidity: 20 to 80% (non-condensing)

  • Rated Speed: 3000rpm

  • Maximum Speed: 5000rpm

  • Excitation: Permanent magnet

  • Drive Method: Direct drive

  • Mounting: Flange-mounted

  • Applicable Encoder: 13-bit incremental or 16-bit absolute encoder
