Yaskawa: Servomotor (SGMGH Series)

0.45kW to 15kW, Rated Speed 1,500 RPM

The SGMGH Sigma II servo motor is a legacy product and no longer promoted in the Americas. The SGMGH had a medium-inertia rotor and incorporated the segmented stator design, which dramatically reduced overall size.

Features:

  • Time Rating: Continuous

  • Insulation: Class F

  • Vibration: 15mm or less

  • Withstand Voltage: 1500VAC

  • Insulation Resistance: 10MW minimum at 500VDC

  • Enclosure: Totally-enclosed, self-cooled IP67 (except for shaft opening)

  • Ambient Temperature: 0 to 40ºC

  • Ambient Humidity: 20 to 80% (non-condensing)

  • Rated Speed: 1500rpm

  • Maximum Speed: 0.45 to 7.5kW (3000rpm), 11 and 15kW (2000rpm)

  • Excitation: Permanent magnet

  • Drive Method: Direct drive

  • Mounting: Flange-mounted

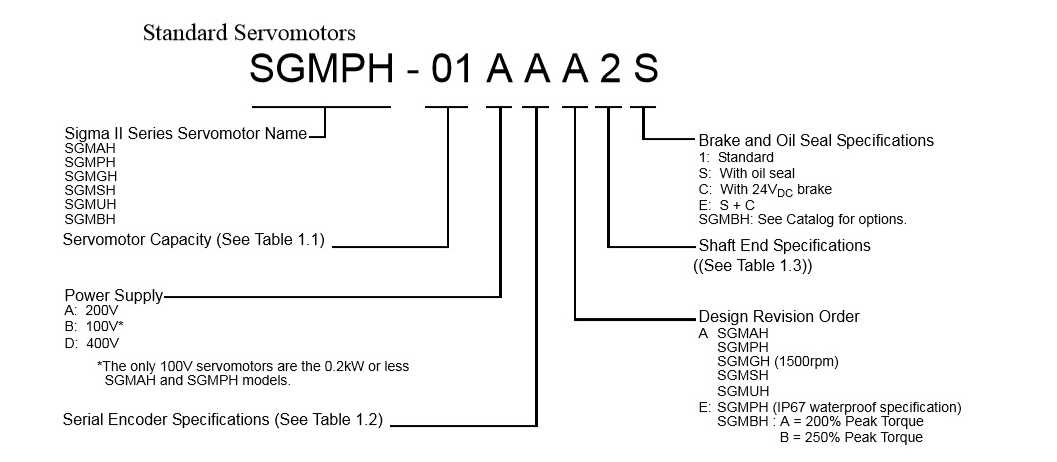

Model No.: SGMGH-09ACA61, SGMGH-1AACA61, SGMGH-40ACA61, SGMGH-55ACA6C
