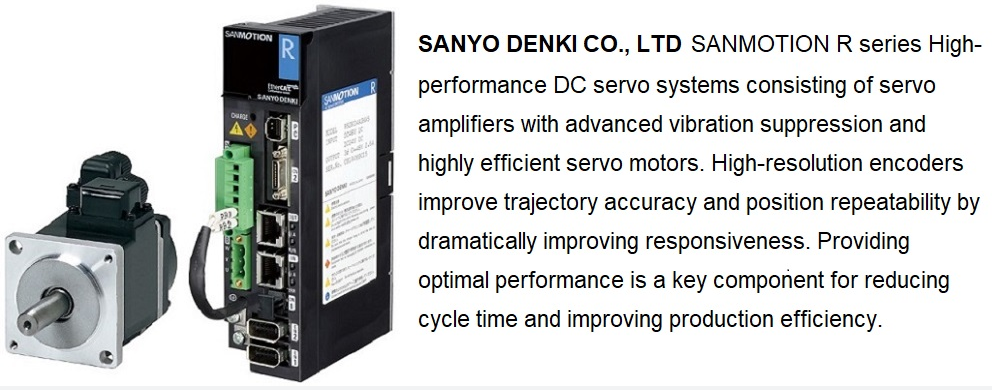

E-Motion America Inc supplies Sanyo Denki high-performance R series
small DC servo systems for our customers.t has achieved high precision
control with industry-leading miniaturization. It is suitable for applications
such as chip mounter heads, small XY tables, semiconductor anufacturing
equipment, inspection equipment, and other equipment that requires reducing the
space between axes.
Input Voltage 48VDC

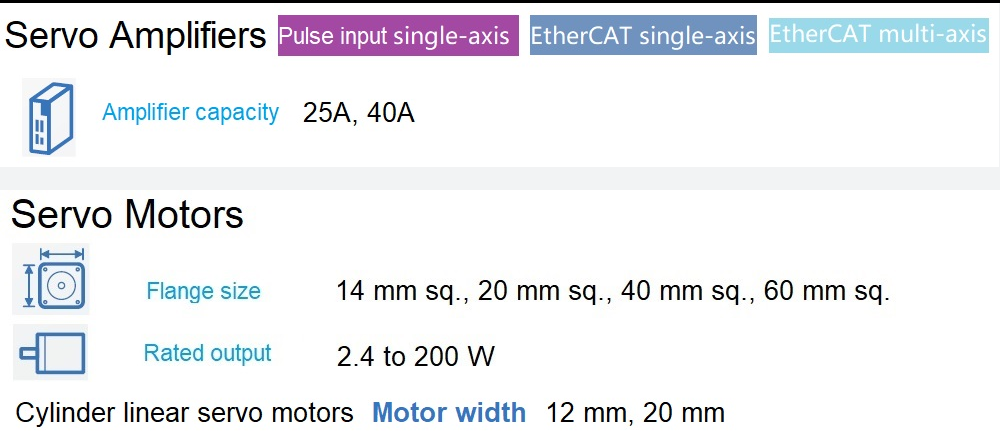

Lineup
Features |  |

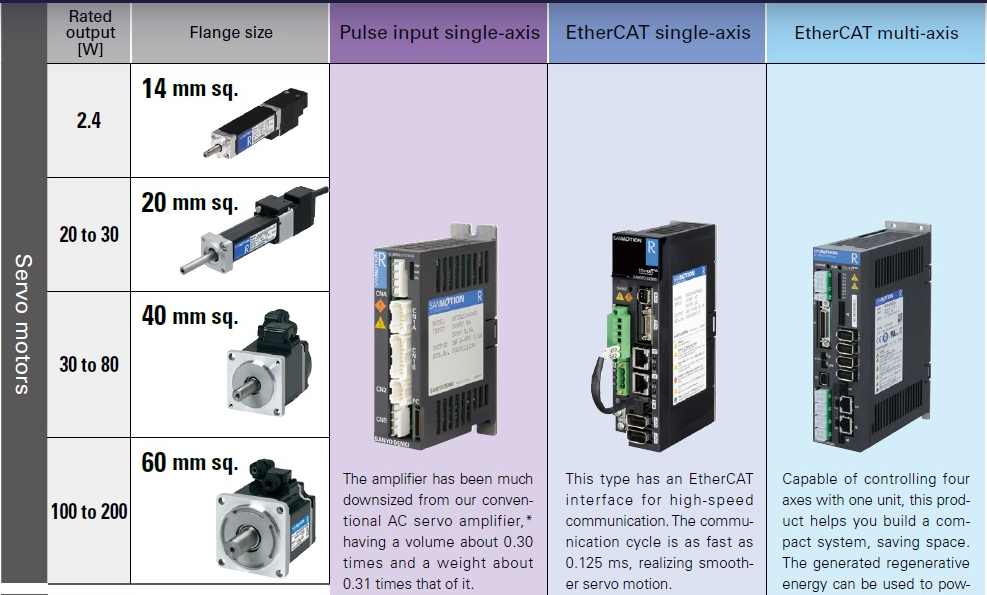

As a result of downsizing and weight reduction, the pulse
input type has a volume of about 0.30 times and a weight of
about 0.31 times that of our conventional AC servo amplifier.
* The EtherCAT multi-axis type can drive 4 motor axes with
a single unit, saving space. We offer small servo motors with 14 and 20 mm sq. flanges

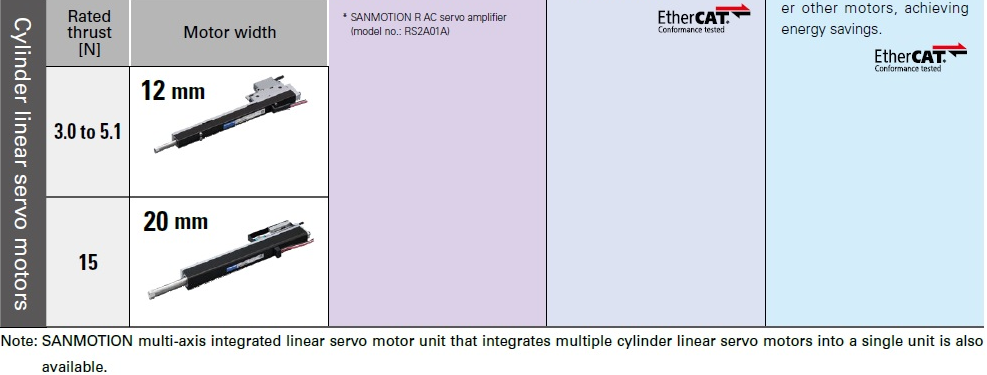

and compact cylindrical linear servo motors with 12 and 20
mm widths for use in chip mounters and other equipment
with limited installation space. | The servo amplifiers have a low power supply voltage with a
low risk of electrical shock. This means they can be used in
equipment that complies with Low Voltage Directive. They are suitable for applications including semiconductor
manufacturing equipment, small robots, chip mounters,
axes in machine tools, and medical equipment that are
powered by low voltage.  |
| EtherCAT is a 100 Mbps high-speed fieldbus system. It contributes to shotening machine cycle time.This highly versatile EtherCAT is compatible with Ethernet, which makes it possible to build a system where various machines co-exist. The EtherCAT single-axis type amplifier can update the firmware of the servo amplifier via an EtherCAT network. Also,the EtherCAT conformance test certificate from a trusted third party has been acquired. |
 |  |
| The servo amplifier automatically makes real-time adjustments ofservo gain and filter frequency to the optimum while in operation.

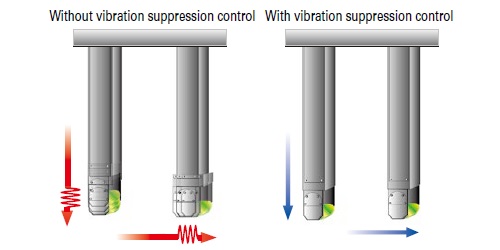

| With feed-forward vibration suppression control, vibrations of the endeffector and the base of machines can be suppressed through simple tuning. Also, the vibration control frequency can be selected.
|
 |

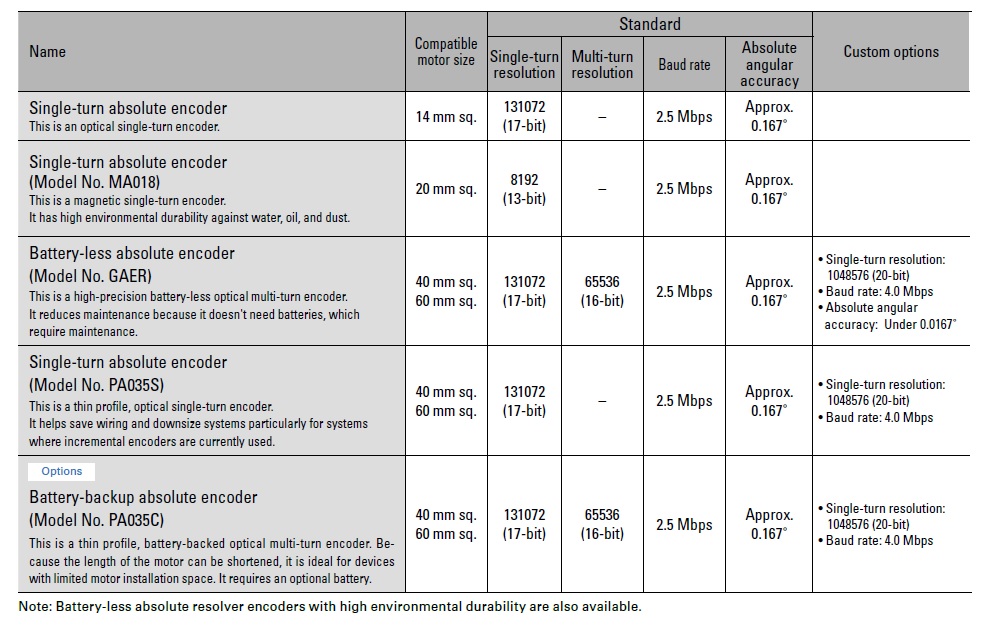

| 40 and 60 mm sq. servo motors come with a high-precision battery-less absolute encoder as standard. Has a wide operating temperature range of -20 to +105°C. Withstands environmental vibration of up to 147 m/s2 (15 G). (When mounted on a servo motor, the operating temperature and environmental vibration of the motor prevail.) They can be used in harsher environments than our conventional products. For even higher precision, custom options such as a single-turn resolution of 1048576 (20-bit) and absolute angular accuracy of approximately0.0167 ° (1 arcmin) are available. We offer a variety of encoders available for use in various equipment. |
 |
| SANMOTION R Series DC Servo System Catelog Download |
SANMOTION R ADVANCED MODEL Series Servo System 48VDC 2.4-200W
