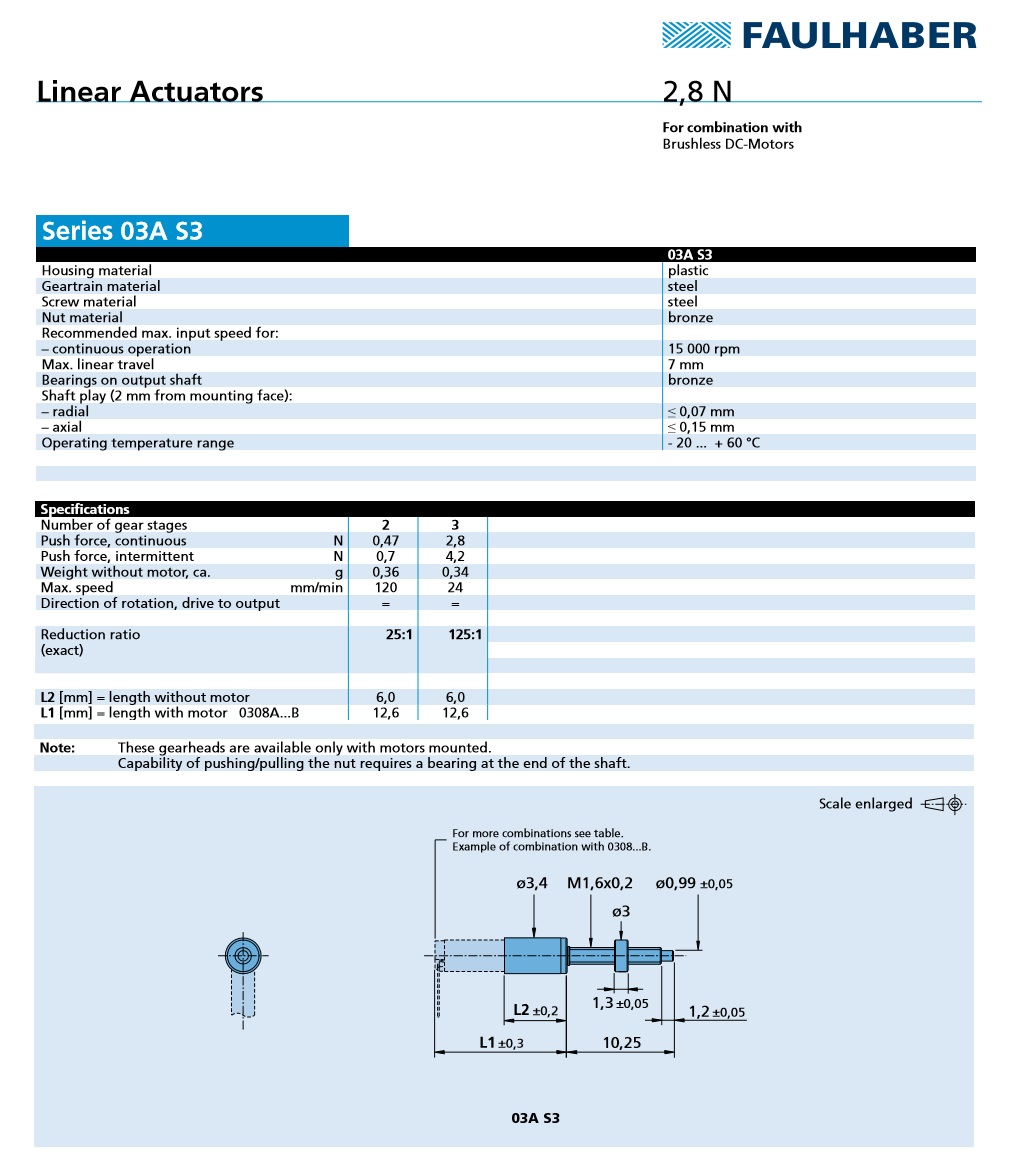

Description Specifications and Drawings


Faulhaber: Linear Actuators - Smoovy® Technology (03A S3 Series)

With permanent magnets which rotate within a fixed armature, the compact BLDC Micromotor features a brushless commutation design for long lasting performance. The Flexprint connection also allows for easy integration.

Specifications:

  • Diameter (mm): 3.4

  • Length with motor (mm): 12.6

  • Standard Ratios (from...to): 25:1, 125:1

  • Continuous pull force (N): 2.8

  • Intermittent pull force (N): 4.2
