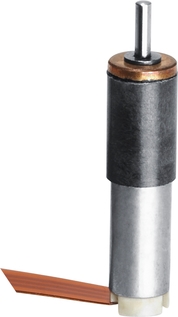

Faulhaber: Micro-Planetary Gearheads (03A Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

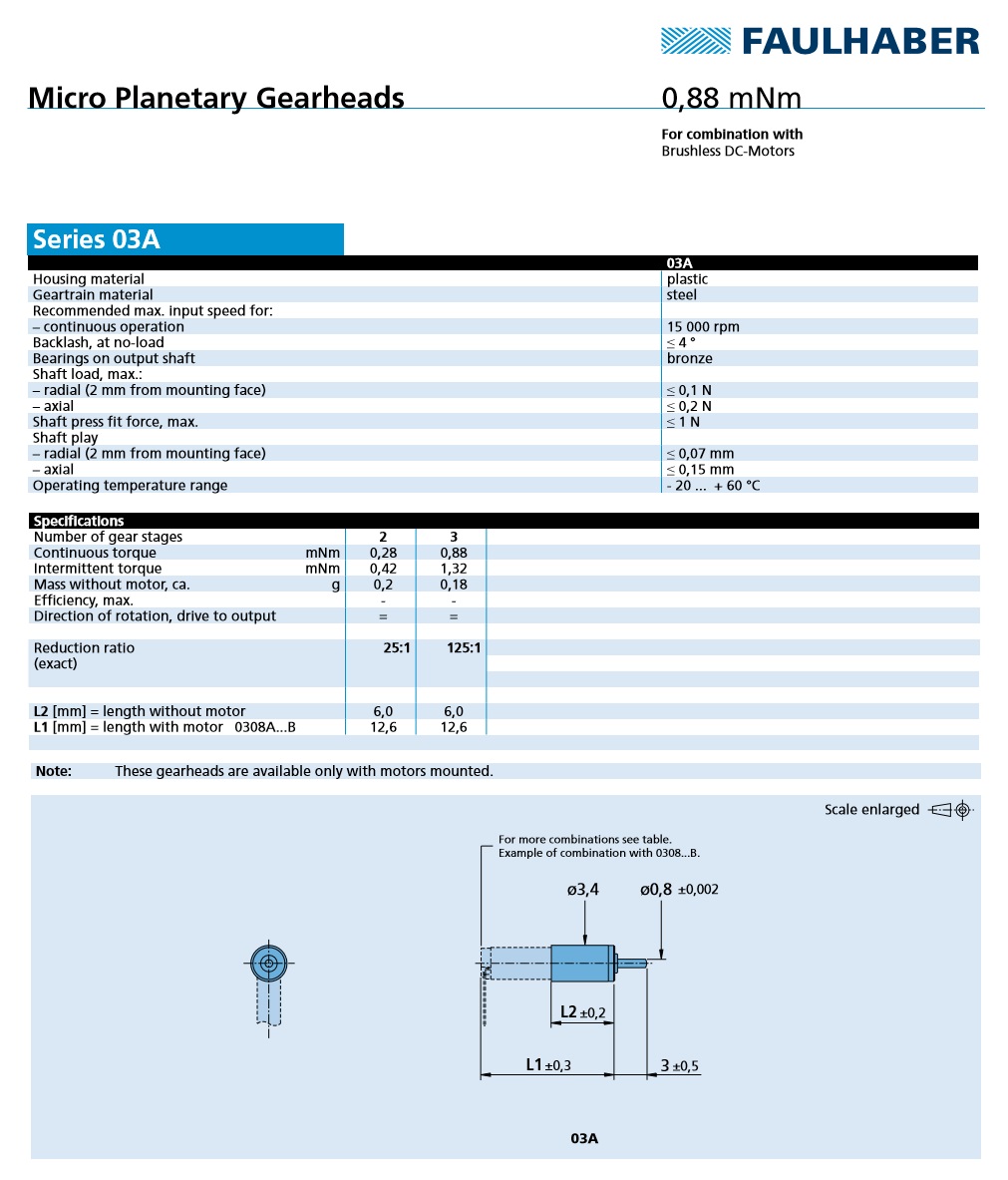

Specifications:

  • Diameter (mm): 3.4

  • Shaft Diameter (mm): 0.8

  • Standard Ratios (from...to): 25:1, 125:1

  • Torque Cont. duty (mNm): 0.88

  • Intermittent duty Torque (mNm): 1.32

Model No. 03A 125:1, 03A 25:1
