Faulhaber: Zero-Backlash Gearheads (08/3 Series)
Faulhaber: Zero-Backlash Gearheads (08/3 Series)

Alternate View
Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: 08-3


Model No.:

.

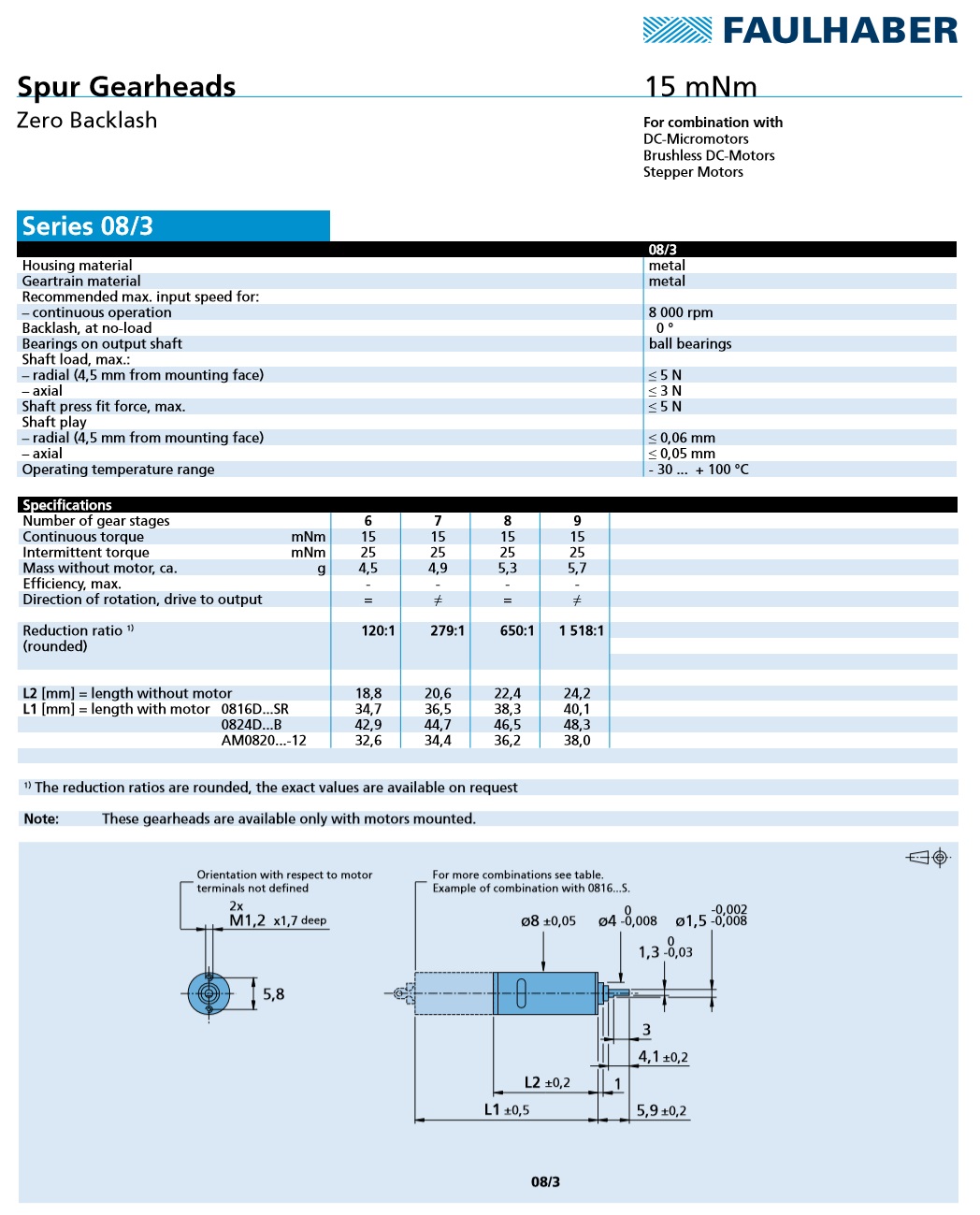

Description Specifications and Drawings


Faulhaber: Zero-Backlash Gearheads (08/3 Series)

Spur Gearheads, zero backlash

FAULHABER offers a special version of a spur gearhead with zero backlash.

The backlash is reduced to a minimum by counter-rotating the two individual gear passes to each other and locking them in place on the motor pinion gear.

Features and Benefits:

  • Available in a wide variety of reduction ratios including very high ratios

  • Ideal for positioning applications with a very high resolution

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

Specifications:

  • Diameter (mm): 8

  • Standard Ratios (from...to): 120:1 ... 1,518:1

  • Torque cont. duty (mNm): 15

  • Intermittent duty Torque (mNm): 25

Model No.: 08/3 120:1, 08/3 279:1, 08/3 650:1, 08/3 1518:1
