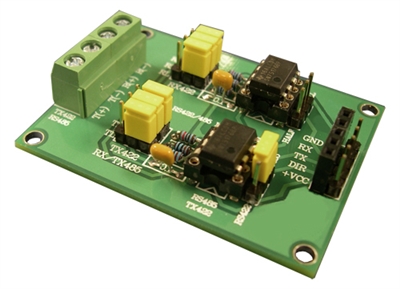

MotiCont: Differential to Single Ended Converter (1000-01 Series)

Features:

  • Converts Two Channels of TTL Differential Signals to Two Channels of Single Ended Signals

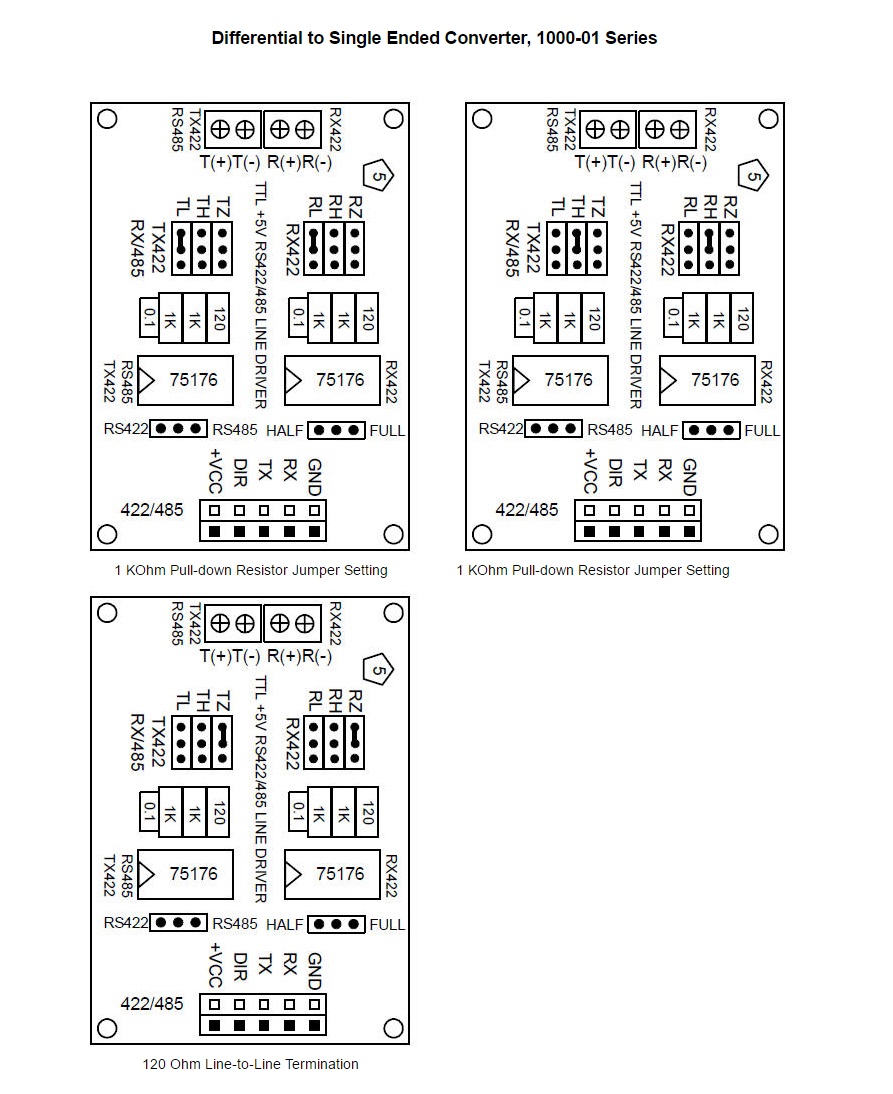

  • Jumper Selectable 1 KOhm Pull-ups, 1 KOhm Pull-downs and 120 Ohm Line-to-Line Termination on all Input


Electrical Specifications:

  • Supply Voltage: +5 VDC


Mechanical Specifications:

  • Mounting Pattern: Four Places, Diameter 0.125” (3.0 mm)

  • Dimensions: 1.70" (43.2 mm) W x 2.20" (55.9 mm) L


Pinout – Input

  • T (+): Encoder A+ Channel Input

  • T (-): Encoder A- Channel Input

  • R (+): Encoder B+ Channel Input

  • R (-): Encoder B- Channel Input


Pinout – Output

  • +VCC: +5 VDC power input

  • DIR: Do Not Use

  • TX: Encoder A Channel Output

  • RX: Encoder B Channel Output

  • GND: Ground Connection for Power Supply
