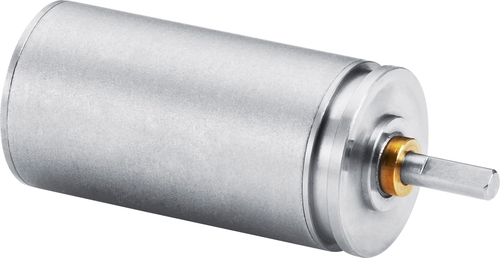

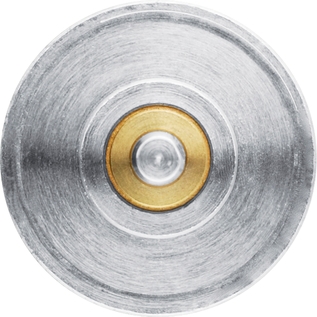

Alternate View
Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: 12-3


Model No.:

.

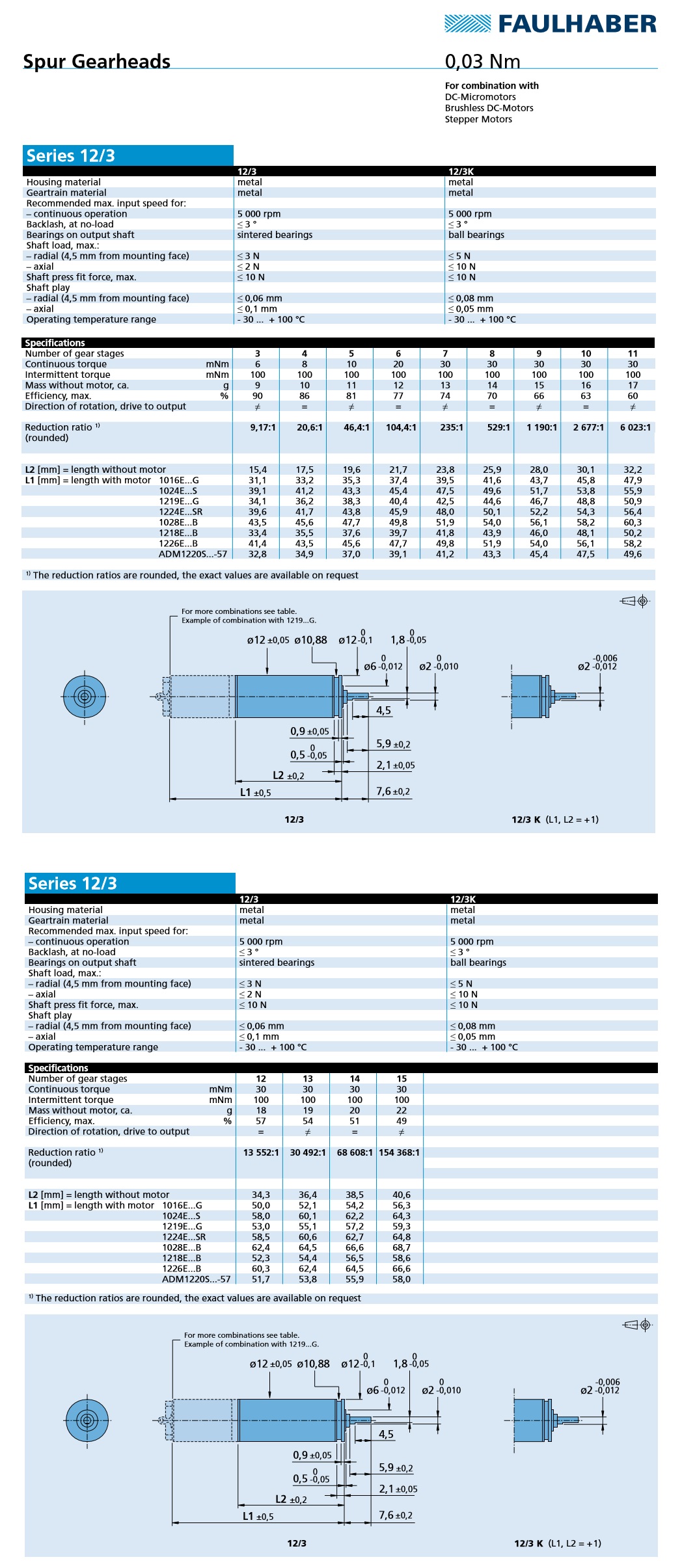

Description Specifications and Drawings

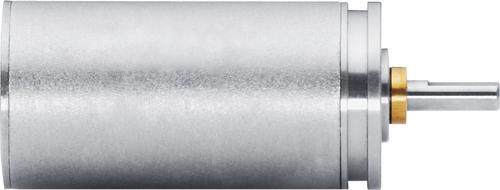

Faulhaber: Spur Gearheads (12/3 Series)

Spur Gearheads

A wide range of high quality spur gearheads are available to compliment FAULHABER DC-Micromotors.

The all metal or plastic input-stage gear train assures extremely quiet running.

Features and Benefits:

  • Available in a wide variety of reduction ratios including very high ratios

  • Zero backlash versions are available

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

Specifications:

  • Diameter (mm): 12

  • Standard Ratios (from...to): 9.17:1 ... 154,368:1

  • Torque cont. duty (mNm): 30

  • Intermittent duty Torque (mNm): 100

Model No.: 12/3 9,17:1, 12/3 20,6:1, 12/3 46,4:1, 12/3 104,4:1, 12/3 235:1, 12/3 529:1, 12/3 1190:1, 12/3 2677:1, 12/3 6023:1, 12/3 13552:1, 12/3 30492:1, 12/3 68608:1, 12/3 154368:1
