Faulhaber: DC-Micromotors 1336...C Series
Faulhaber: DC-Micromotors 1336...C Series

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: 1336...C


Model No.:

.

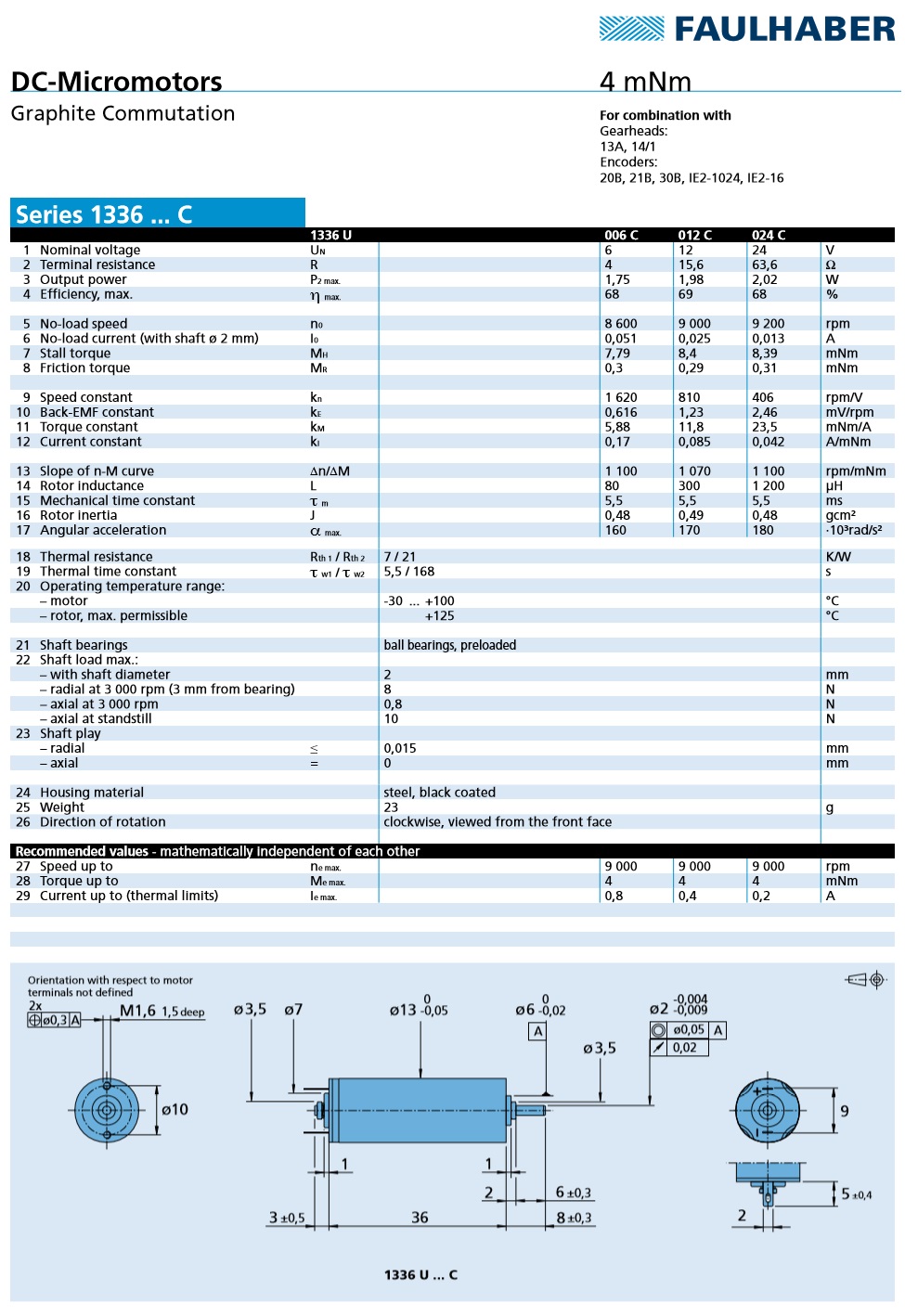

Description Specifications and Drawings


Faulhaber: DC-Micromotors (1336 ... C Series)

Coreless DC Motors are constructed with a rotor attached to a commutator plate. Brushes providing commutation, these lightweight motors have a low starting inertia for maximum acceleration & minimal power consumption.

Specifications:

  • Diameter (mm): 13

  • Length (mm): 36

  • Commutation: Graphite

  • No-Load Speed up to (rpm): 9,200

  • Stall torque up to (mNm): 8.4

Model No.: 1336U006C, 1336U012C, 1336U024C
