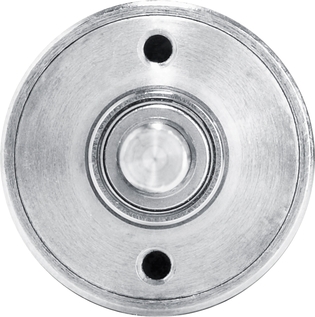

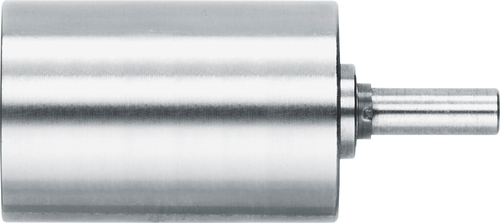

Alternate View
Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: 14-1


Model No.:

.

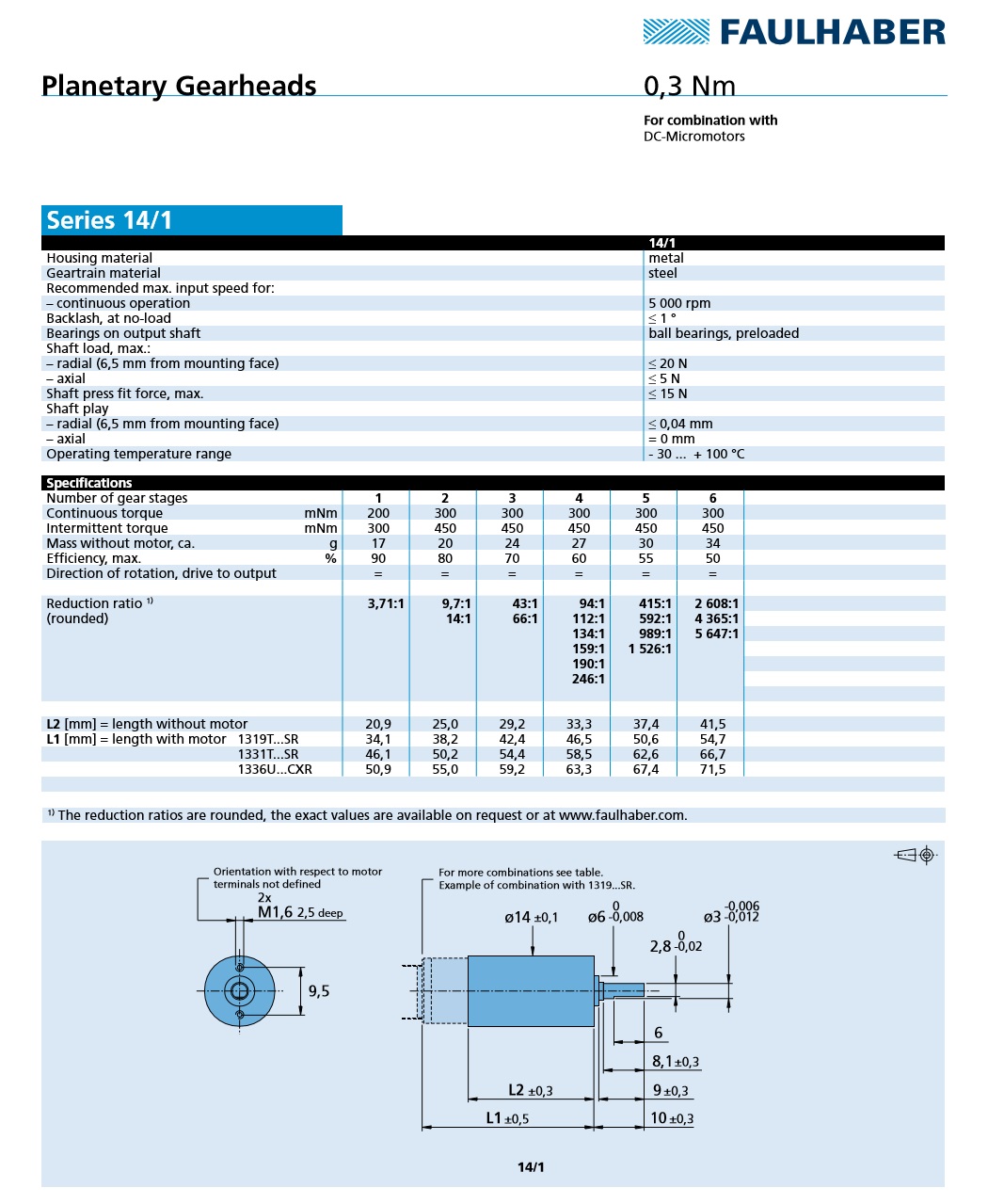

Description Specifications and Drawings

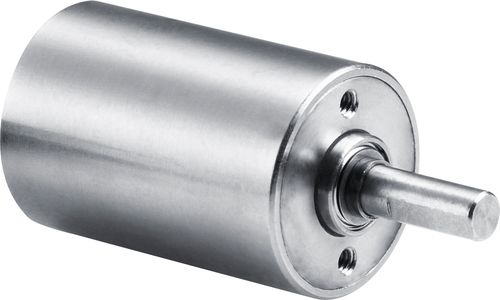

Faulhaber: Planetary Gearheads (14/1 Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 14

  • Standard Ratios (from...to): 3.71:1 ... 5,647:1

  • Torque cont. duty (mNm): 300

  • Intermittent duty Torque (mNm): 450

Model No.: 14/1 3,71:1, 14/1 9,7:1, 14/1 14:1, 14/1 43:1, 14/1 66:1, 14/1 94:1, 14/1 112:1, 14/1 134:1, 14/1 159:1, 14/1 190:1, 14/1 246:1, 14/1 415:1, 14/1 592:1, 14/1 989:1, 14/1 1526:1, 14/1 2608:1, 14/1 4365:1, 14/1 5647:1
