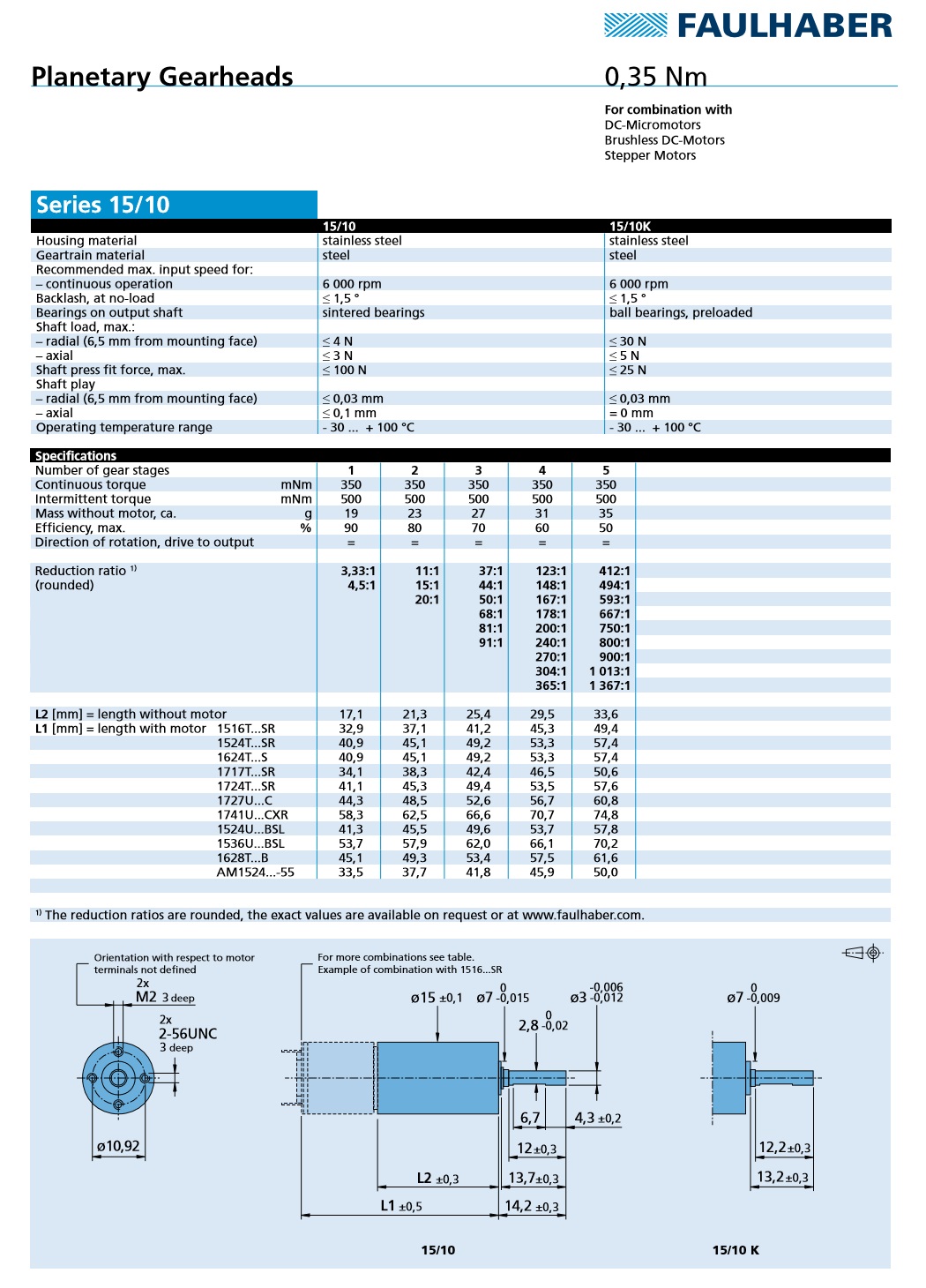

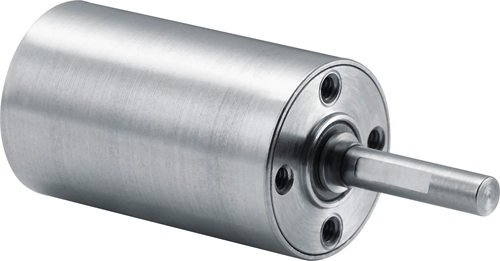

Faulhaber: Planetary Gearheads (15/10 Series) Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications. For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics. Available in all plastic or metal versions Available with a variety of shaft bearings including sintered, ceramic, and ball bearings Modified versions for extended temperature and special environmental conditions are available
Diameter (mm): 15 Standard Ratios (from...to): 3.33:1 ... 1,367:1 Torque cont. duty (mNm): 350 Intermittent duty Torque (mNm): 500
Model No.: 15/10 3,33:1, 15/10 4,5:1, 15/10 11:1, 15/10 15:1, 15/10 20:1, 15/10 37:1, 15/10 44:1, 15/10 50:1, 15/10 68:1, 15/10 81:1, 15/10 91:1, 15/10 123:1, 15/10 148:1, 15/10 167:1, 15/10 178:1, 15/10 200:1, 15/10 240:1, 15/10 270:1, 15/10 304:1, 15/10 365:1, 15/10 412:1, 15/10 494:1, 15/10 593:1, 15/10 667:1, 15/10 750:1, 15/10 800:1, 15/10 900:1, 15/10 1013:1, 15/10 1367:1
|
|
|
 |
|
 |
|
