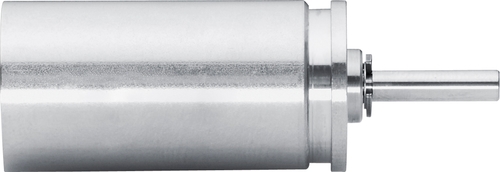

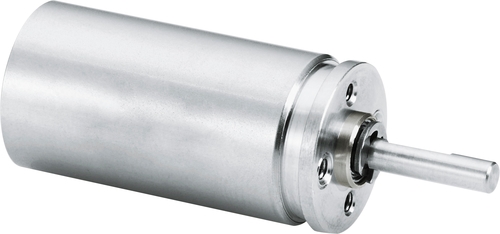

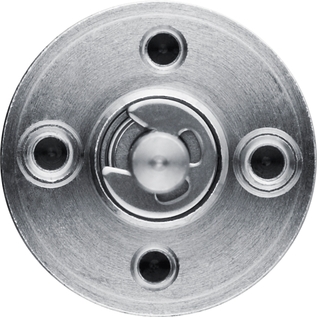

Alternate View
Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: 15-5


Model No.:

.

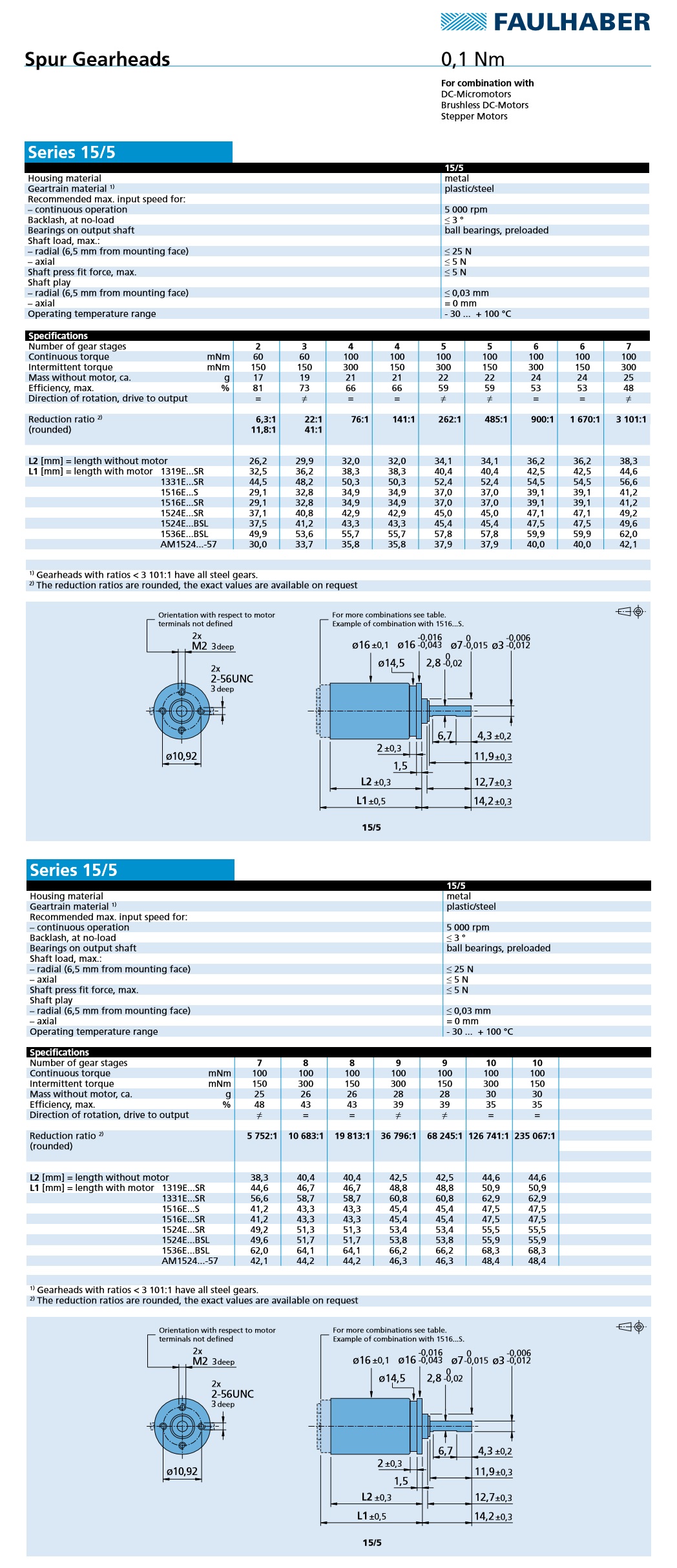

Description Specifications and Drawings


Faulhaber: Spur Gearheads (15/5 Series)

Spur Gearheads

A wide range of high quality spur gearheads are available to compliment FAULHABER DC-Micromotors.

The all metal or plastic input-stage gear train assures extremely quiet running.

Features and Benefits:

  • Available in a wide variety of reduction ratios including very high ratios

  • Zero backlash versions are available

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

Specifications:

  • Diameter (mm): 16

  • Standard Ratios (from...to): 6.3:1 ... 235,067:1

  • Torque cont. duty (mNm): 100

  • Intermittent duty Torque (mNm): 300

Model No.: 15/5 6,3:1, 15/5 11,8:1, 15/5 22:1, 15/5 41:1, 15/5 76:1, 15/5 141:1, 15/5 262:1, 15/5 485:1, 15/5 900:1, 15/5 1670:1, 15/5 3101:1, 15/5 5752:1, 15/5 10683:1, 15/5 19813:1, 15/5 36796:1, 15/5 68245:1, 15/5 126741:1, 15/5 235067:1
