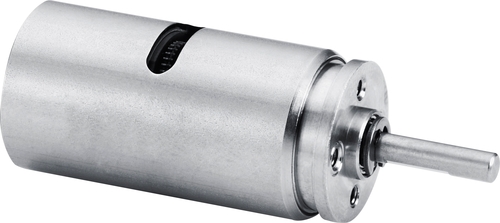

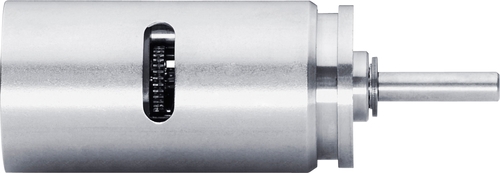

Faulhaber: Zero-Backlash Gearheads (16/8 Series)

Spur Gearheads, zero backlash

FAULHABER offers a special version of a spur gearhead with zero backlash.

The backlash is reduced to a minimum by counter-rotating the two individual gear passes to each other and locking them in place on the motor pinion gear.

Features and Benefits:

  • Available in a wide variety of reduction ratios including very high ratios

  • Ideal for positioning applications with a very high resolution

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

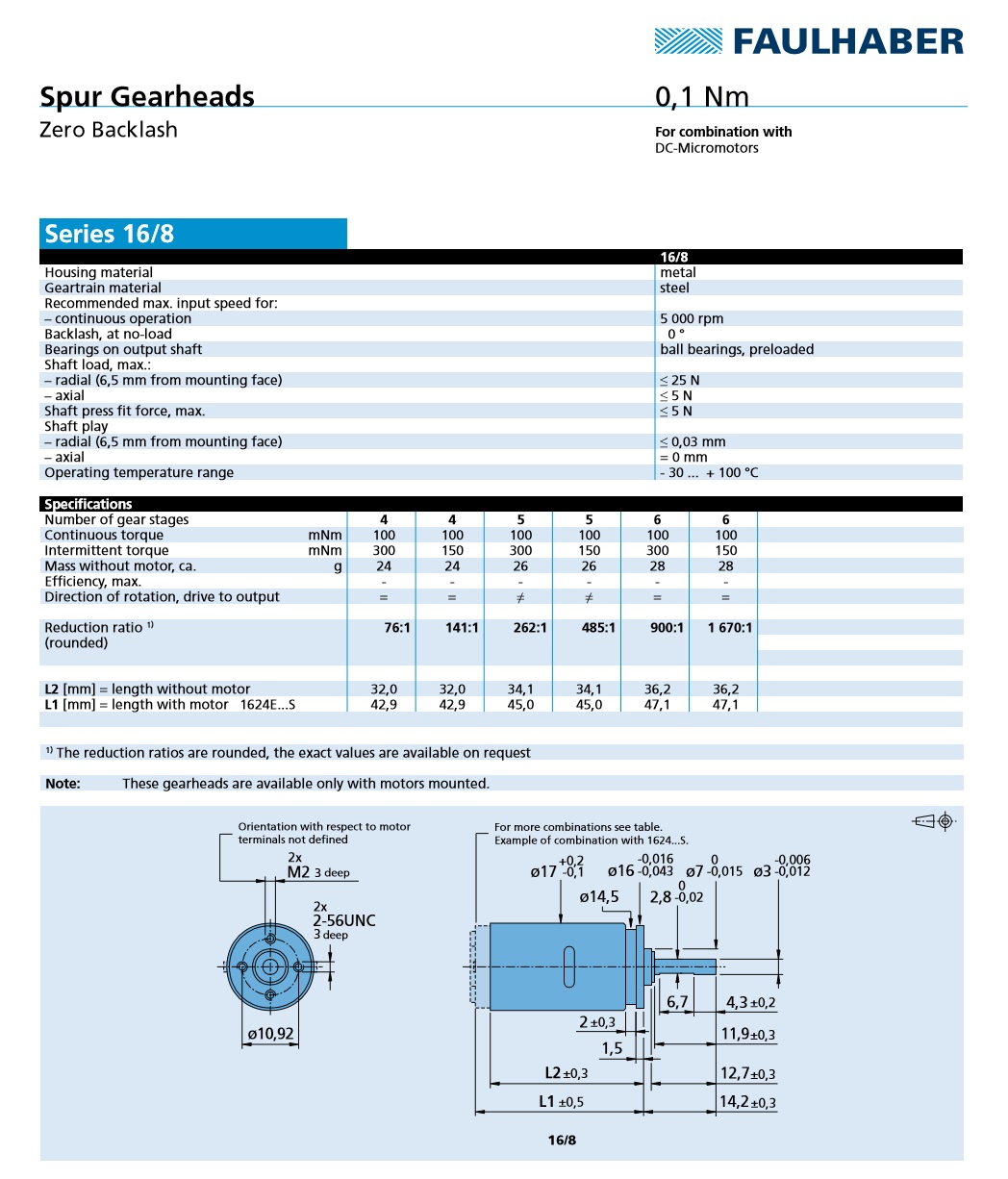

Specifications:

  • Diameter (mm): 17

  • Standard Ratios (from...to): 76:1 ... 1,670:1

  • Torque cont. duty (mNm): 100

  • Intermittent duty Torque (mNm): 300

Model No.: 16/8 76:1, 16/8 141:1, 16/8 262:1, 16/8 485:1, 16/8 900:1, 16/8 1670:1
