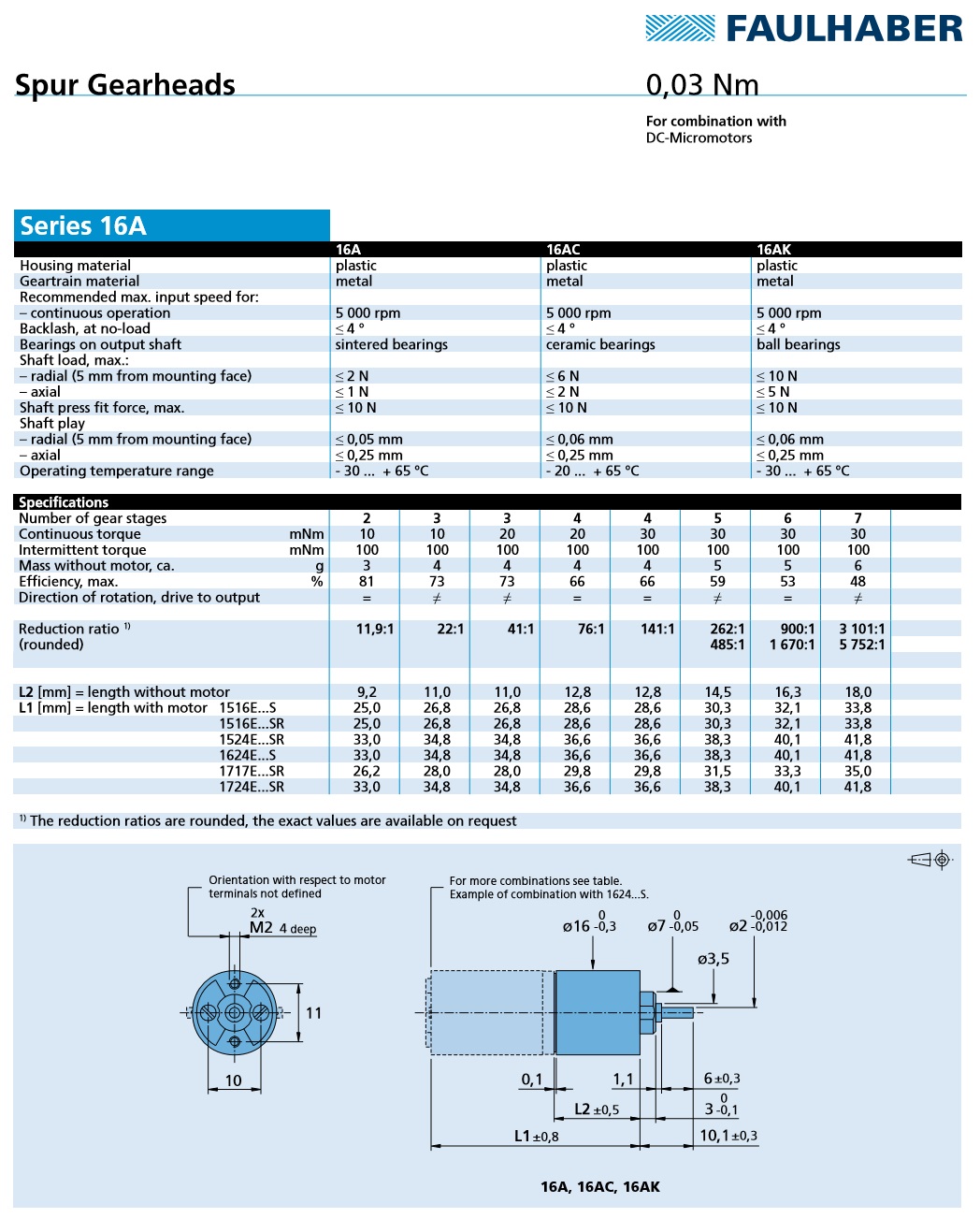

Description Specifications and Drawings


Faulhaber: Spur Gearheads (16A Series)

Spur Gearheads

A wide range of high quality spur gearheads are available to compliment FAULHABER DC-Micromotors.

The all metal or plastic input-stage gear train assures extremely quiet running.

Features and Benefits:

  • Available in a wide variety of reduction ratios including very high ratios

  • Zero backlash versions are available

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

Specifications:

  • Diameter (mm): 16

  • Standard Ratios (from...to): 11.9:1 ... 5,752:1

  • Torque cont. duty (mNm): 30

  • Intermittent duty Torque (mNm): 100

Model No.: 16A 11,9:1, 16A 22:1, 16A 41:1, 16A 76:1, 16A 141:1, 16A 262:1, 16A 485:1, 16A 900:1, 16A 1670:1, 16A 3101:1, 16A 5752:1
