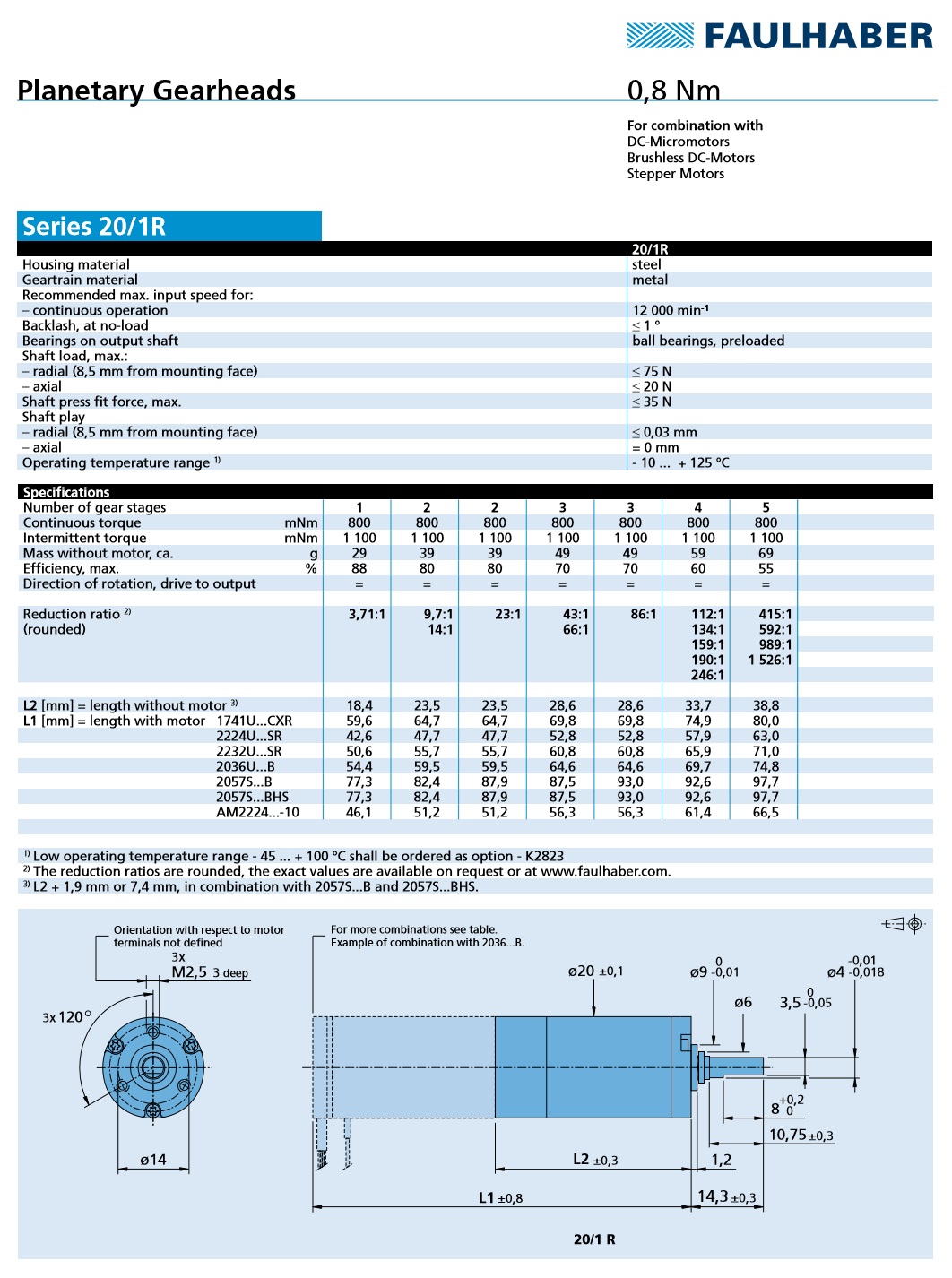

Description Specifications and Drawings

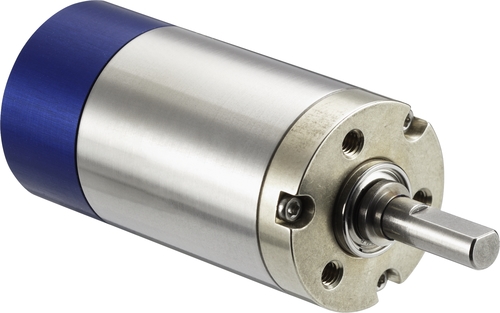

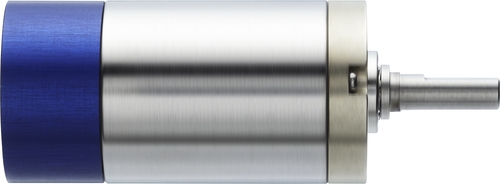

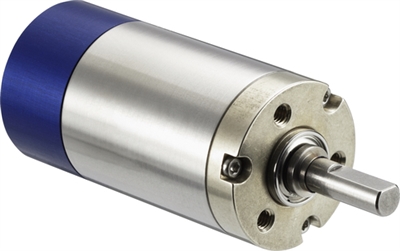

Faulhaber: Planetary Gearheads (20/1R Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 20

  • Continuous Operation (mNm): 800

  • Intermittent Operation (mNm): 1100

  • Reduction Ratio (n:1): 3.71...1526

Model No.: 20/1R 112:1, 20/1R 134:1, 20/1R 14:1, 20/1R 1526:1, 20/1R 159:1, 20/1R 190:1, 20/1R 23:1, 20/1R 246:1, 20/1R 3,71:1, 20/1R 415:1, 20/1R 43:1, 20/1R 592:1, 20/1R 66:1, 20/1R 86:1, 20/1R 9,7:1, 20/1R 989:1
