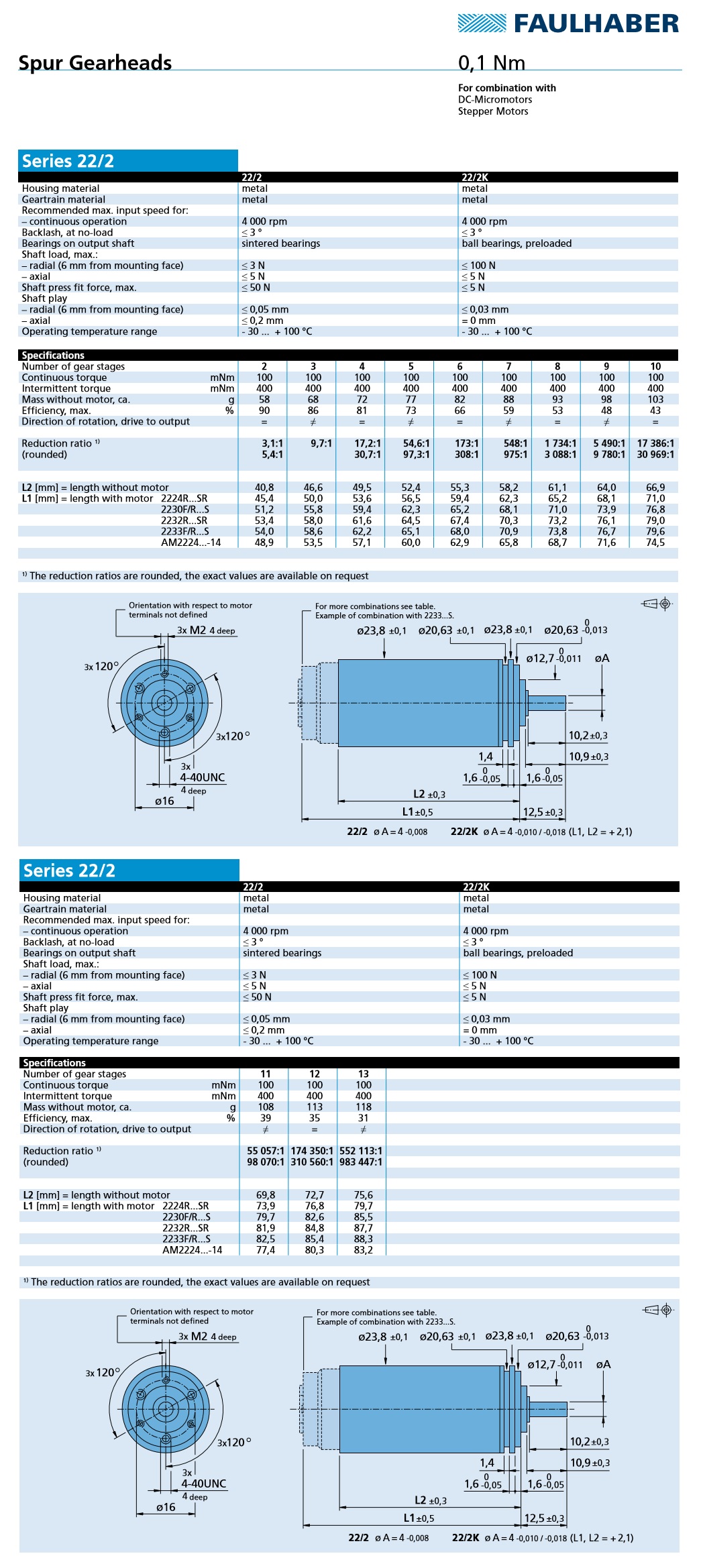

Description Specifications and Drawings


Faulhaber: Spur Gearheads (22/2 Series)

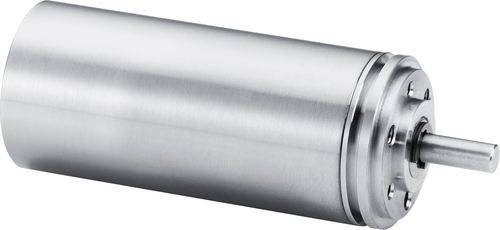

Spur Gearheads

A wide range of high quality spur gearheads are available to compliment FAULHABER DC-Micromotors.

The all metal or plastic input-stage gear train assures extremely quiet running.

Features and Benefits:

  • Available in a wide variety of reduction ratios including very high ratios

  • Zero backlash versions are available

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

Specifications:

  • Diameter (mm): 23.8

  • Standard Ratios (from...to): 3.1:1 ... 983,447:1

  • Torque cont. duty (mNm): 100

  • Intermittent duty Torque (mNm): 400

Model No.: 22/2 3,1:1, 22/2 5,44:1, 22/2 9,7:1, 22/2 17,2:1, 22/2 30,7:1, 22/2 54,6:1, 22/2 97,3:1, 22/2 173:1, 22/2 308:1, 22/2 548:1, 22/2 975:1, 22/2 1734:1, 22/2 3088:1, 22/2 5490:1, 22/2 9780:1, 22/2 17386:1, 22/2 30969:1, 22/2 55057:1, 22/2 98070:1, 22/2 174350:1, 22/2 310560:1, 22/2 552113:1, 22/2 983447:1
