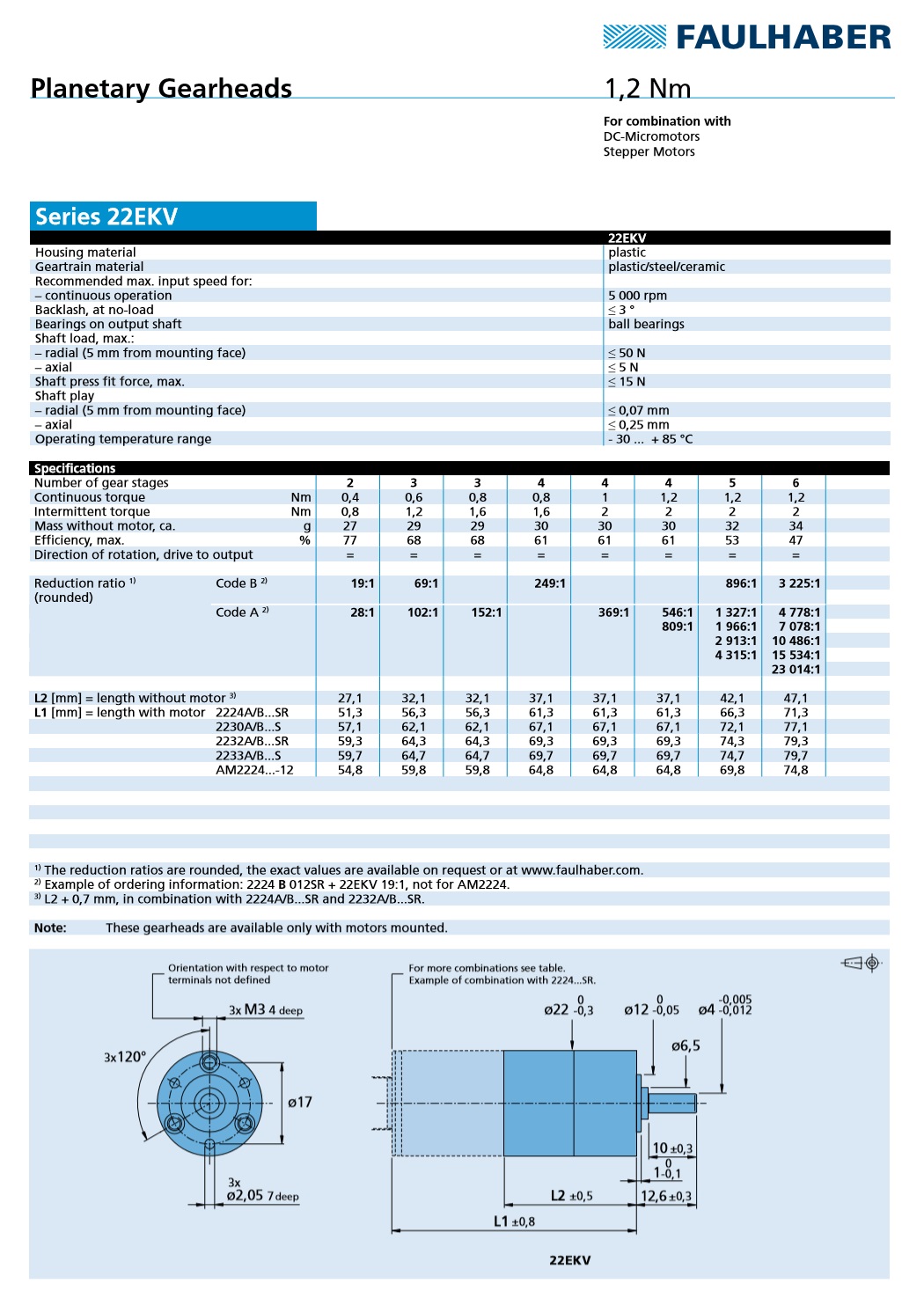

Faulhaber: Planetary Gearheads (22EKV Series) Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications. For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics. Available in all plastic or metal versions Available with a variety of shaft bearings including sintered, ceramic, and ball bearings Modified versions for extended temperature and special environmental conditions are available
Diameter (mm): 22 Standard Ratios (from...to): 19:1 ... 23,014:1 Torque cont. duty (mNm): 1,200 Intermittent duty Torque (mNm): 2,000
Model No.: 22EKV 19:1, 22EKV 28:1, 22EKV 69:1, 22EKV 102:1, 22EKV 152:1, 22EKV 249:1, 22EKV 369:1, 22EKV 546:1, 22EKV 809:1, 22EKV 896:1, 22EKV 1327:1, 22EKV 1966:1, 22EKV 2913:1, 22EKV 3225:1, 22EKV 4315:1, 22EKV 4315:1, 22EKV 7078:1, 22EKV 10486:1, 22EKV 15534:1, 22EKV 23014:1
|
|
