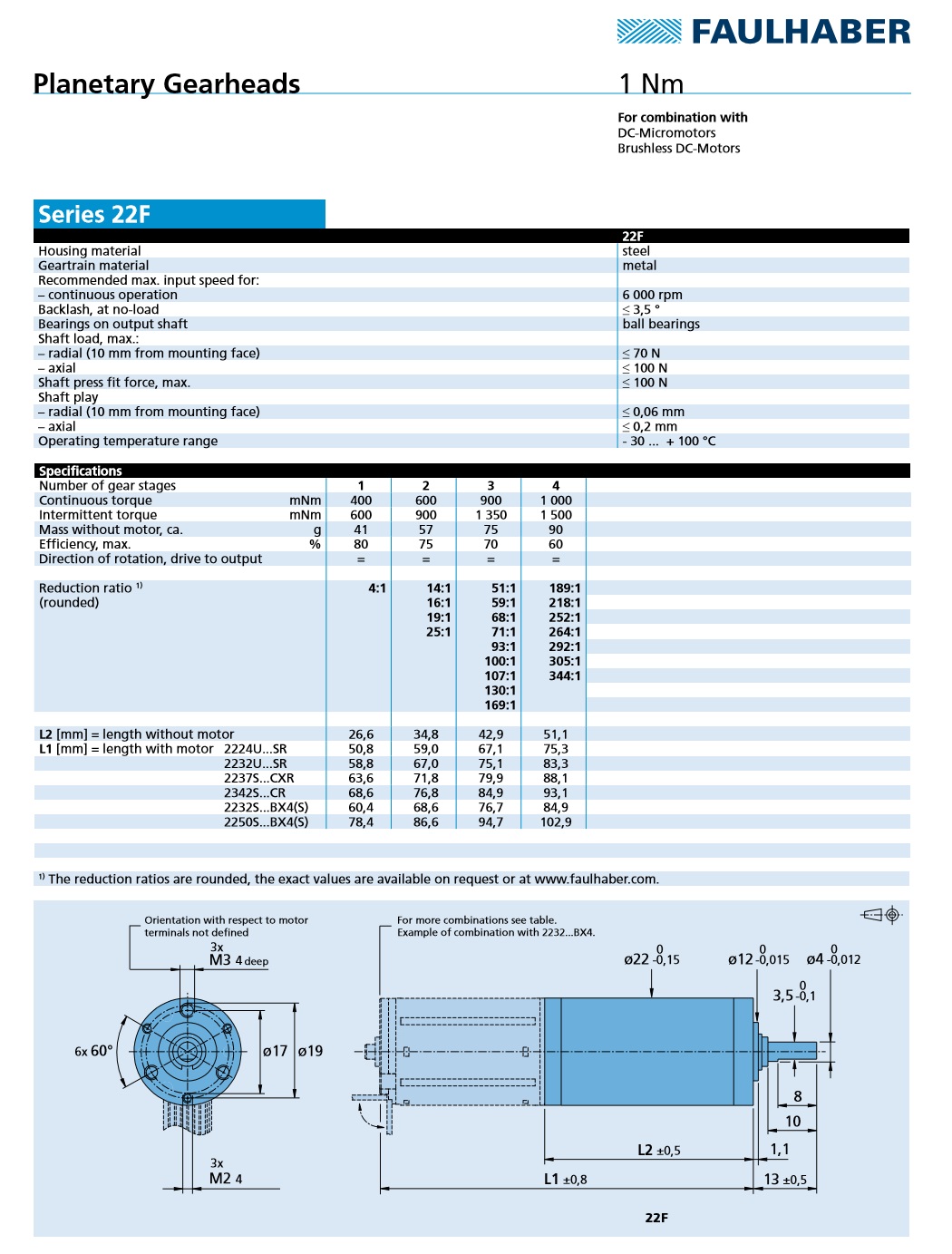

Description Specifications and Drawings

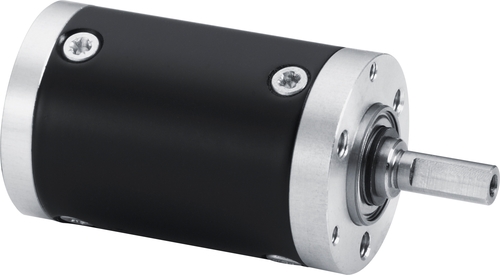

Faulhaber: Planetary Gearheads (22F Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 22

  • Standard Ratios (from...to): 4:1 ... 344:1

  • Torque cont. duty (mNm): 1,000

  • Intermittent duty Torque (mNm): 1,500

Model No.: 22F 4:1, 22F 14:1, 22F 16:1, 22F 19:1, 22F 25:1, 22F 51:1, 22F 59:1, 22F 68:1, 22F 71:1, 22F 93:1, 22F 100:1, 22F 107:1, 22F 130:1, 22F 169:1, 22F 189:1, 22F 218:1, 22F 252:1, 22F 264:1, 22F 292:1, 22F 305:1, 22F 344:1
