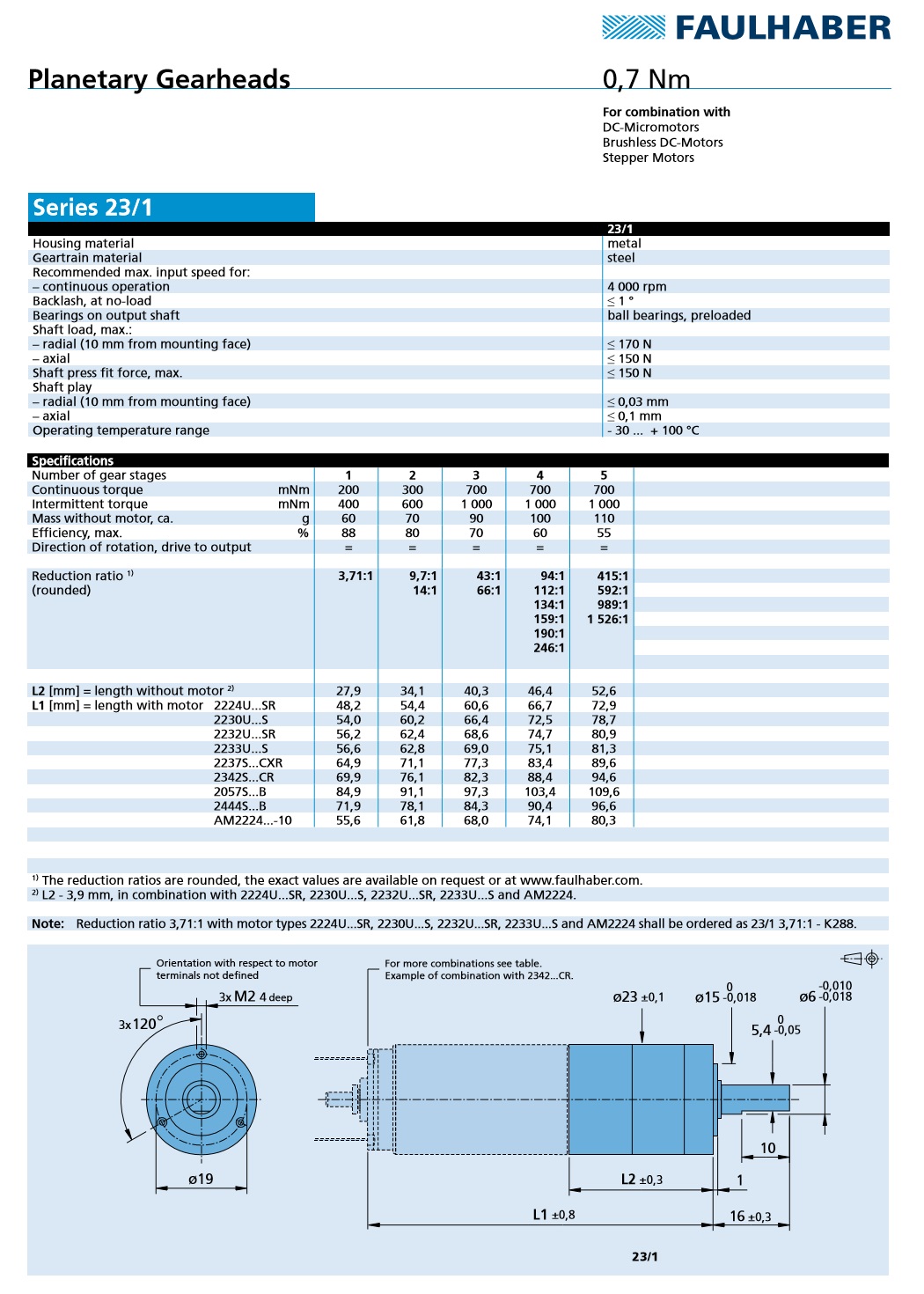

Description Specifications and Drawings


Faulhaber: Planetary Gearheads (23/1 Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 23

  • Standard Ratios (from...to): 3.71:1 ... 1,526:1

  • Torque cont. duty (mNm): 700

  • Intermittent duty Torque (mNm): 1,000

Model No.: 23/1 3,71:1, 23/1 9,7:1, 23/1 14:1, 23/1 43:1, 23/1 66:1, 23/1 94:1, 23/1 112:1, 23/1 134:1, 23/1 159:1, 23/1 190:1, 23/1 246:1, 23/1 415:1, 23/1 592:1, 23/1 989:1, 23/1 1526:1
