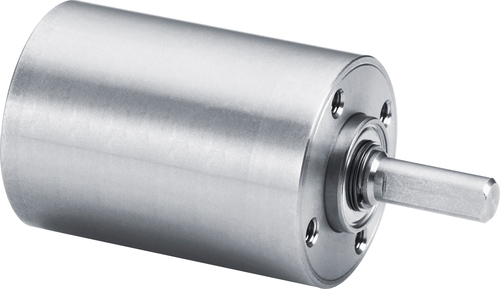

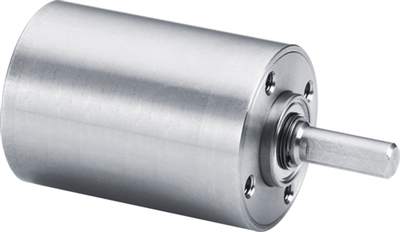

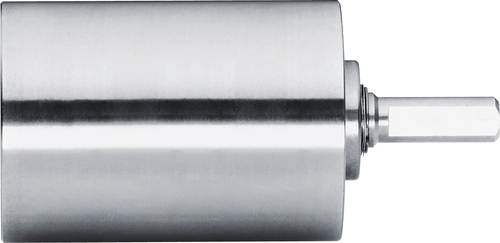

Faulhaber: Planetary Gearheads (26/1 Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

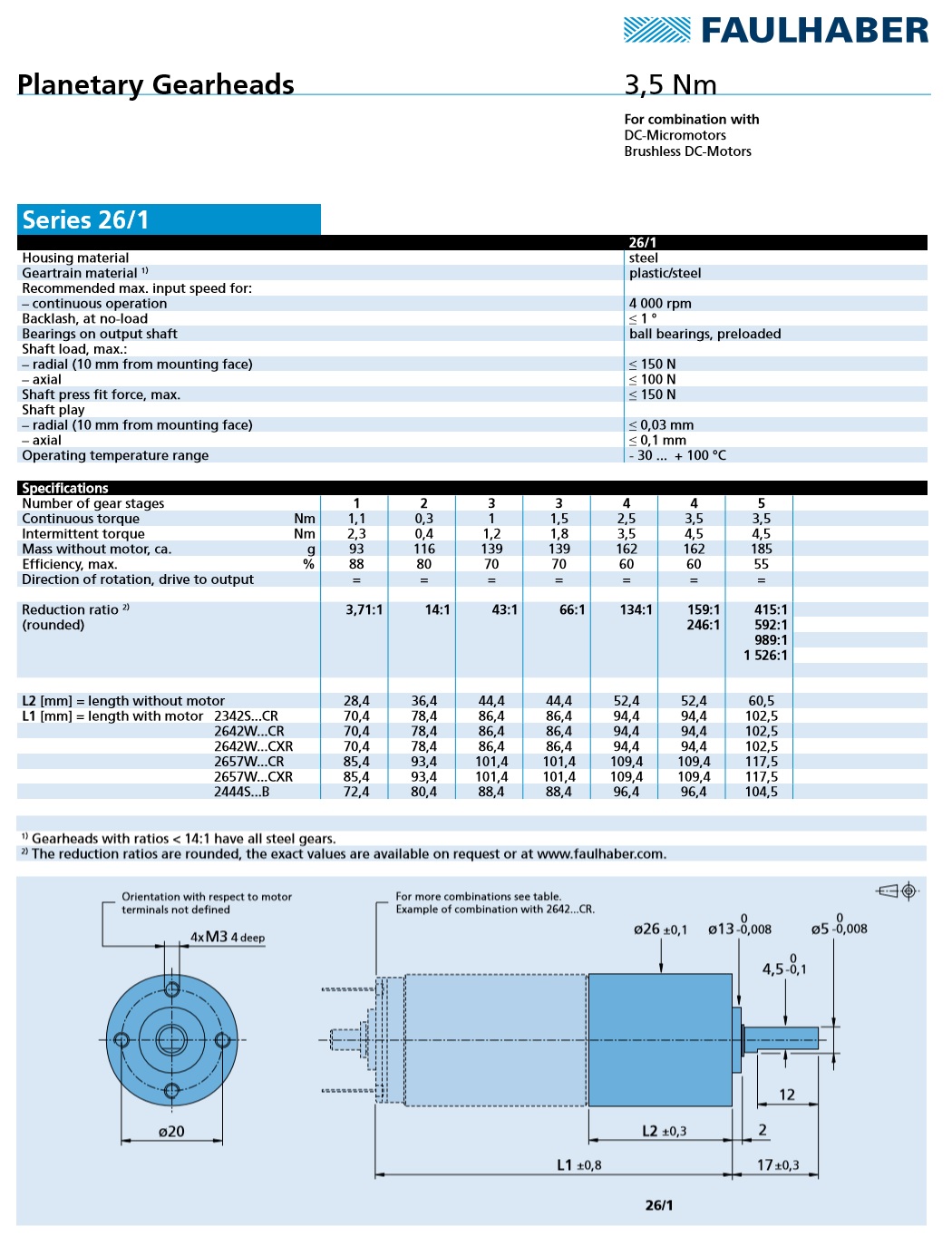

Specifications:

  • Diameter (mm): 26

  • Standard Ratios (from...to): 9:7:1 ... 1,526:1

  • Torque cont. duty (mNm): 3,500

  • Intermittent duty Torque (mNm): 4,500

Model No.: 26/1 3,71:1, 26/1 14:1, 26/1 43:1, 26/1 66:1, 26/1 134:1, 26/1 159:1, 26/1 246:1, 26/1 415:1, 26/1 592:1, 26/1 989:1, 26/1 1526:1
